－37－

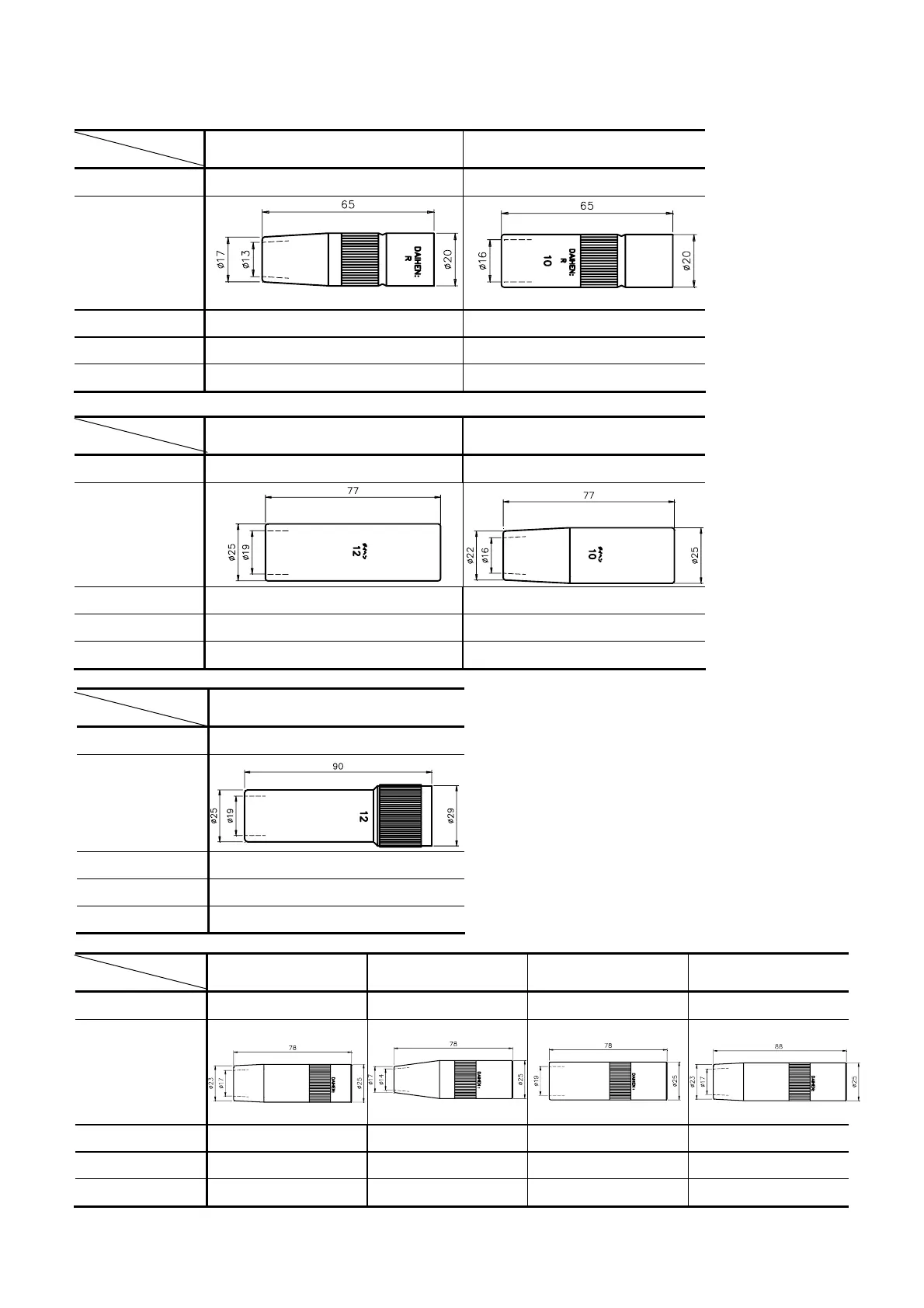

Table 7.5 Combination of nozzles
Nozzle dia.
Torch model
φ17 φ20
Design No.
L10603C02 L10603C03
Outline drawing
RT3500S
● △
RT3500H
● △
RT3500L ● △
Nozzle dia.
Torch model
φ25
Design No.
U724E01
Outline drawing
RTW5000S
●
RTW5000H
●
RTW5000L
●
Nozzle dia.
Torch model
φ19 φ17 φ25 φ23
Design No.
L10612C06 L10612C04 L10612C05 U5377G01
Outline drawing
RZ3500S
● △ △ △
RZ3500H
● △ △ △
RZ3500L
● △ △ △
Nozzle dia.
Torch model
φ25 φ22
Design No.
U2774E01 U2774E04
Outline drawing
RT5000S
● △
RT5000H
● △
RT5000L
● △
● Standard
△ O
p
tion
