17 | Technical data
Installer reference guide
73
2(A)MXM40+50 + 2(A)MXF40+50
R32 Split series
4P600463-2C – 2020.08

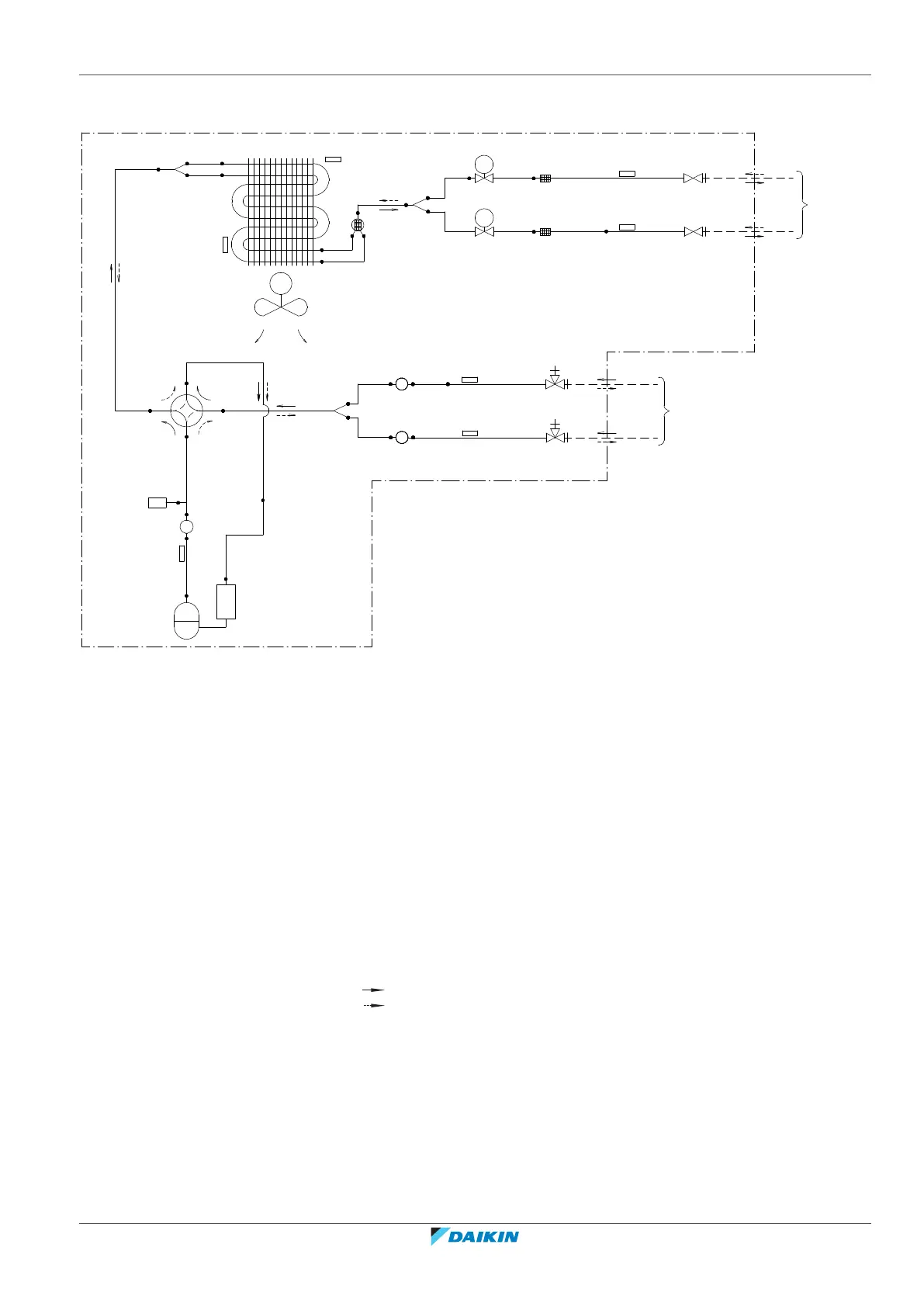

2MXM50, 2AMXM50, 2AMXF50, 2MXF50
7.9CuT
7.9CuT
M
4.8CuT
4.8CuT
9.5CuT
7.9CuT
9.5CuT
9.5CuT
9.5CuT
9.5CuT
9.5CuT
6.4CuT
6.4CuT
EV
A
EV
B
9.5CuT
6.4CuT
6.4CuT
6.4CuT
9.5CuT
9.5CuT
HPS1
9.5CuT
(9.5CuT)
(12.7CuT)
(6.4CuT)
(6.4CuT)
a
b
c
d
e
f
g
g
h
i
j
A
B
A
B
k
l
l
m
n
o
o
p
q
r
s
t
n
m
i
h
g
c
c
A Room A
B Room B
a 4-way valve ON: heating
b High pressure switch with automatic reset
c Muffler
d Discharge pipe thermistor
e Compressor
f Accumulator
g Branch pipe
h Thermistor (gas)
i Gas stop valve
j Field piping (gas)
k Field piping (liquid)
l Liquid stop valve
m Thermistor (liquid)
n Filter
o Motor-operated valve
p Muffler
q Outdoor air temperature thermistor
r Heat exchanger
M Fan motor
Refrigerant flow: cooling
Refrigerant flow: heating
