MODEL AGZ CHILLERS
InsTallaTIon and applICaTIon InformaTIon
General Description
Daikin Trailblazer
™
air-cooled water chillers are complete, self-
contained, automatic chillers designed for outdoor installation.
Packaged units are completely assembled, factory wired,
charged, and tested.
The electrical control center includes all equipment protection
and operating controls necessary for dependable automatic
operation.
NOMENCLATURE
A G Z XXX E D SM
WARNING
Installation is to be performed by qualied personnel who are
familiar with local codes and regulations.
Additional Manual
This manual covers the installation, of dual circuit, AGZ-EH
packaged, scroll compressor chillers using R-410A.
Information for units with either the pump package or remote
evaporator options can be found at www.DaikinApplied.com.
Inspection
Check all items carefully against the bill of lading. Inspect
all units for damage upon arrival. Report shipping damage
and le a claim with the carrier. Check the unit nameplate
before unloading, making certain it agrees with the power
supply available. Daikin Applied is not responsible for physical
damage after the unit leaves the factory.
Handling
Be careful to avoid rough handling of the unit. Do not push
or pull the unit from anything other than the base. Block the
pushing vehicle away from the unit to prevent damage to the
sheet metal cabinet and end frame (see Figure 1).
To lift the unit, 2-1/2” (64mm) diameter lifting eyes are provided
on the base of the unit. Arrange spreader bars and cables to
prevent damage to condenser coils or cabinet (see Figure 2).
CAUTION
All lifting locations must be used to prevent damage to unit.
DANGER
Improper rigging, lifting, or moving of a unit can result in
property damage, severe personal injury or death. Follow
rigging and moving instructions carefully. Do not stand
beneath the unit while it is lifted or being installed.

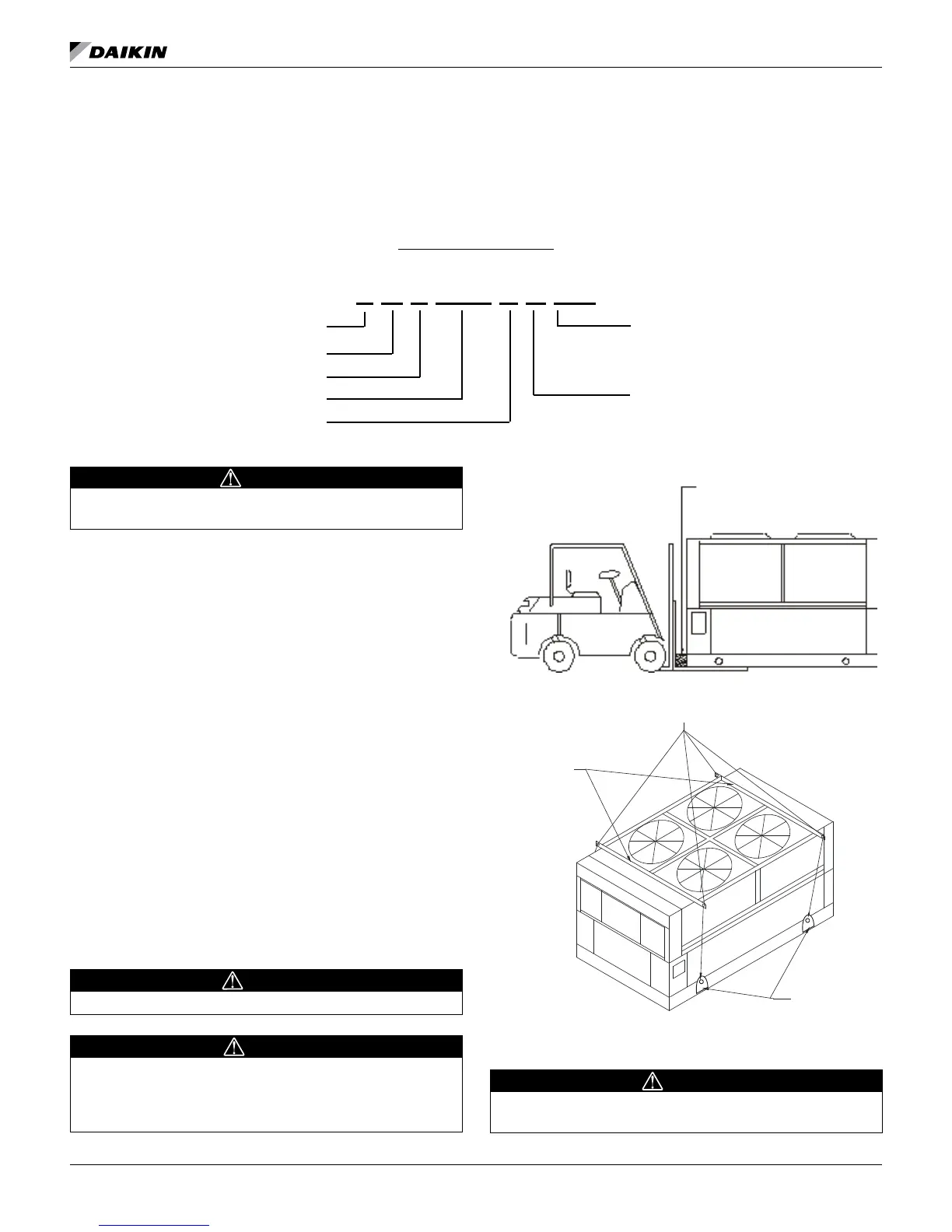

Figure 1: Suggested Pushing Arrangment
Figure 2: Required Lifting Arrangement
CAUTION
Sharp edges and coil surfaces are a potential injury hazard.
Avoid contact with them.
Air-Cooled
Global Design
Scroll Compressor
Application
SM = Standard Efciency Packaged Unit
HM = High Efciency Packaged Unit
Design Vintage
Nominal Tons
Blocking is required
across full width
SPREADER BARS
REQUIRED FOR
EACH PAIR OF
LIFTING LUGS
(USE CAUTION)
MUST USE THESE
RIGGING HOLES
(BE AWARE OF
CONTROL BOX
LOCATION)
Number of fans and
rigging holes may vary
from this diagram.
The lifting method will
remain the same.
# of Compressors
D = Tandem per Circuit
T = Trio per Circuit
