4 Unit installation
Installation manual
11
EBBH/X11+16DF
Daikin Altherma 3 R W
4P643600-1B – 2021.10
PATTERN 3
No
Yes

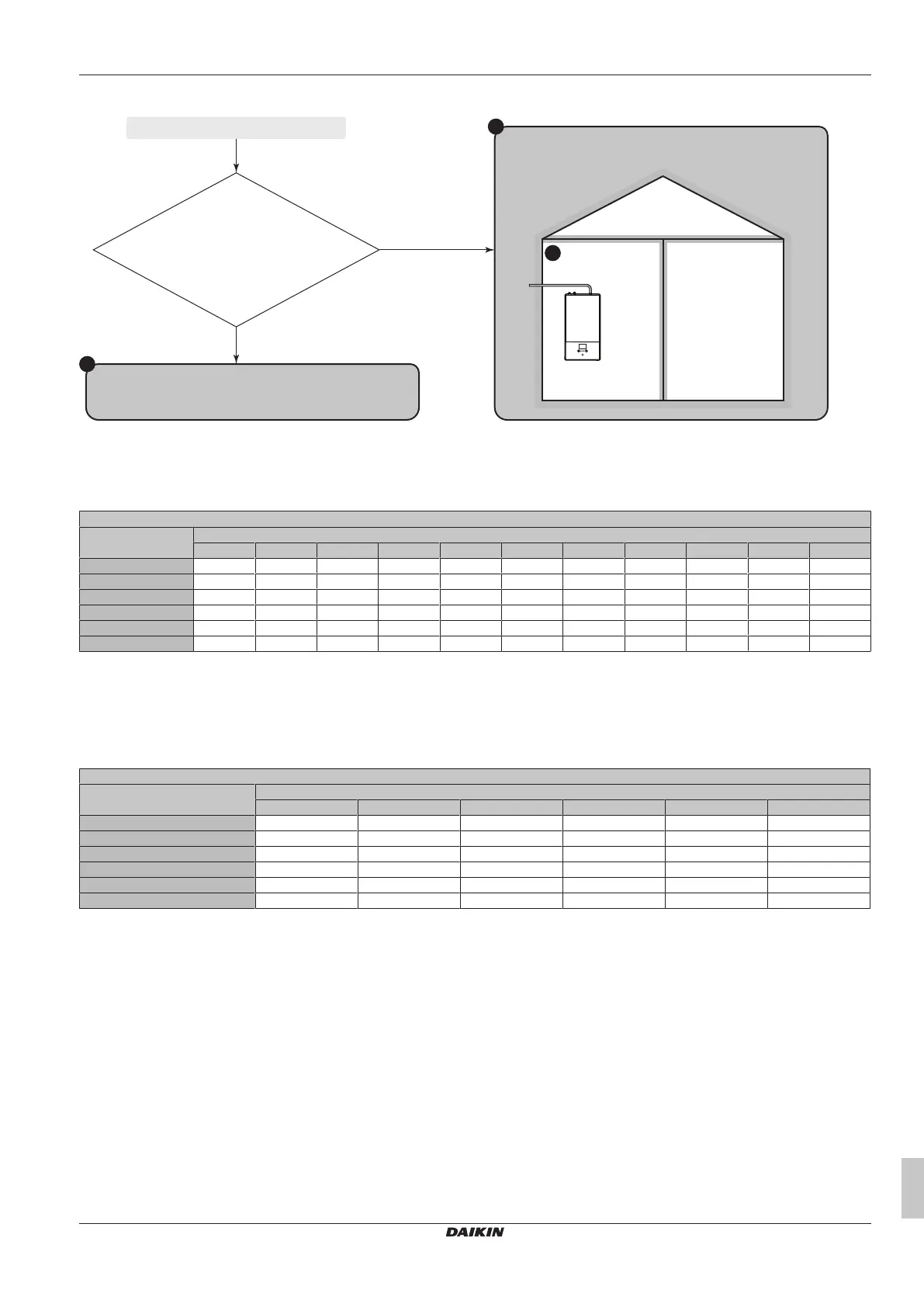

START PATTERN 3
A
You can install the unit in room A if you lead the chimney outside
the building.
3a
You CANNOT install the unit in the room. Place the unit in a larger
room.
3b
See table 3:
Is it possible to lead a chimney
outside the building respecting the maximum
chimney length?
Tables for PATTERN 1, 2 and 3
Table 1: Minimum floor area
For intermediate refrigerant charges, use the row with the higher value. Example: If the refrigerant charge is 4.3kg, use the row of 4.5kg.
Minimum floor area (m²)
Charge (kg) Release height without chimney (m)
1.95 2.05 2.15 2.25 2.35 2.45 2.55 2.65 2.75 2.85 2.95
3.8 11.64 10.53 9.57 8.74 8.01 7.37 6.80 6.30 6.00 5.79 5.59
4 12.89 11.67 10.61 9.68 8.88 8.17 7.54 6.98 6.48 6.10 5.89
4.5 16.32 14.76 13.42 12.26 11.23 10.34 9.54 8.84 8.20 7.64 7.13
5 20.14 18.23 16.57 15.13 13.87 12.76 11.78 10.91 10.13 9.43 8.80
5.5 24.37 22.05 20.05 18.31 16.78 15.44 14.25 13.20 12.26 11.41 10.65
5.8 27.11 24.53 22.30 20.36 18.66 17.17 15.85 14.68 13.63 12.69 11.84
Table 2: Minimum release height
Take the following into account:
• For intermediate floor areas, use the column with the lower value. Example: If the floor area is 22.50m², use the column of 20.00m².
• For intermediate refrigerant charges, use the row with the higher value. Example: If the refrigerant charge is 4.3kg, use the row of 4.5kg.
• (*): The release height of the unit without chimney (minimum 1.95m) is already higher than the minimum required release height. => OK (no
chimney needed).
Minimum release height (m)
Charge (kg) Floor area (m²)
5.00 10.00 15.00 20.00 25.00 30.00
3.8 3.30 2.10 (*) (*) (*) (*)
4 3.47 2.21 (*) (*) (*) (*)
4.5 3.91 2.49 2.03 (*) (*) (*)
5 4.34 2.77 2.26 1.96 (*) (*)
5.5 4.78 3.04 2.49 2.15 (*) (*)
5.8 5.04 3.21 2.62 2.27 2.03 (*)
