Daikin Altherma EVLQ05+08CA User Manual

7 | Installation
Installer reference guide
57
EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1F – 2020.10
DANGER: RISK OF BURNING/SCALDING
1×
1
2
2

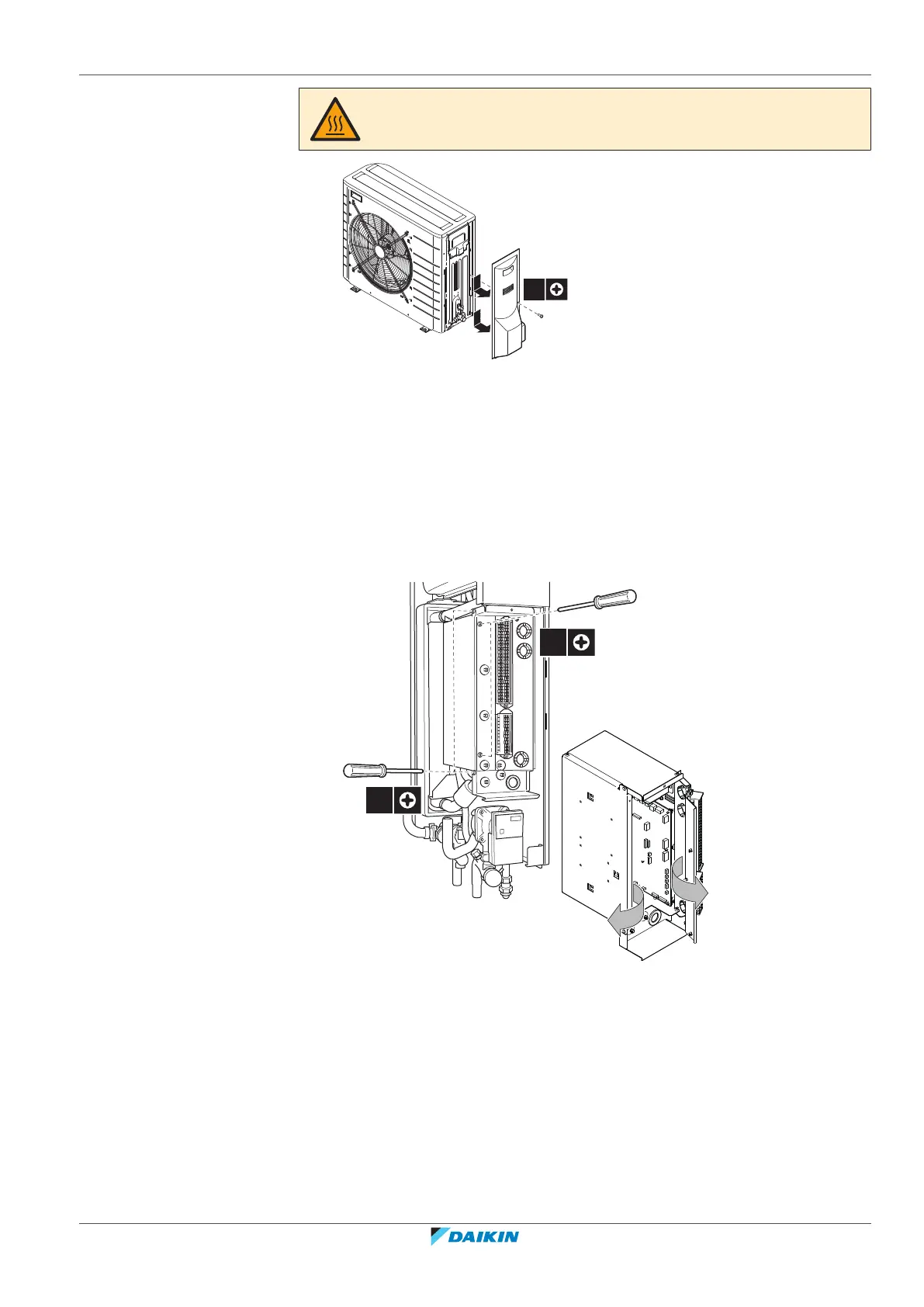

7.2.3 To open the switch box cover of the indoor unit
1 Remove the side panel at the right side of the indoor unit. The side panel is
fixed at the bottom with 1 screw.
2 Remove the upper and lower screw on the side panel of the switch box.
3 The right panel of the switch box will open.
4 Remove the upper and lower screw on the front panel of the switch box.
5 The front panel of the switch box will open.
2×
2×
2
4
5
3
When the boiler is installed and access to the switch box is required, please follow
the steps below.
6 Remove the upper and lower screw on the side panel of the switch box.
7 Remove the switch box from the unit.
8 Hook the switch box to the side of the unit with the hooks foreseen on the
switch box.
