4P355634-1F – 2020.10

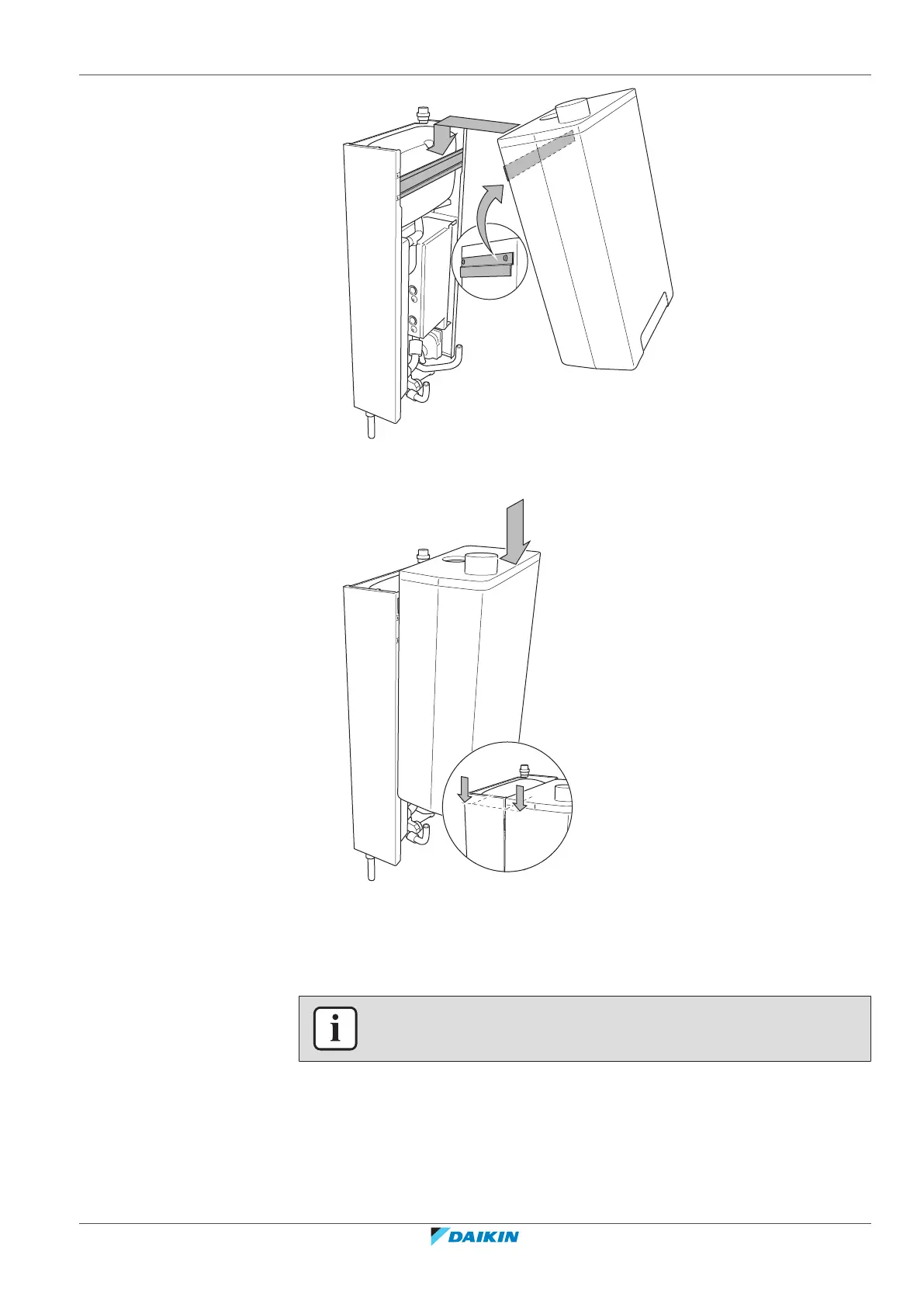

6 Slide the boiler downwards to fix the boiler bracket onto the indoor unit
mounting bracket.
7 Make sure the gas boiler is fixed properly and well aligned with the indoor
unit.
7.5.2 To install the condensate trap
INFORMATION
The boiler is provided with a Ø25mm flexible pipe on the condensate trap.
Prerequisite: The boiler MUST be opened before installing the condensate trap.
1 Fit the flexible tube (accessory) to the condensate trap outlet.
2 Fill the condensate trap with water.
3 Slide the condensate trap as far as possible upwards onto the condensate
drain connector below the gas boiler.
