4 ■English

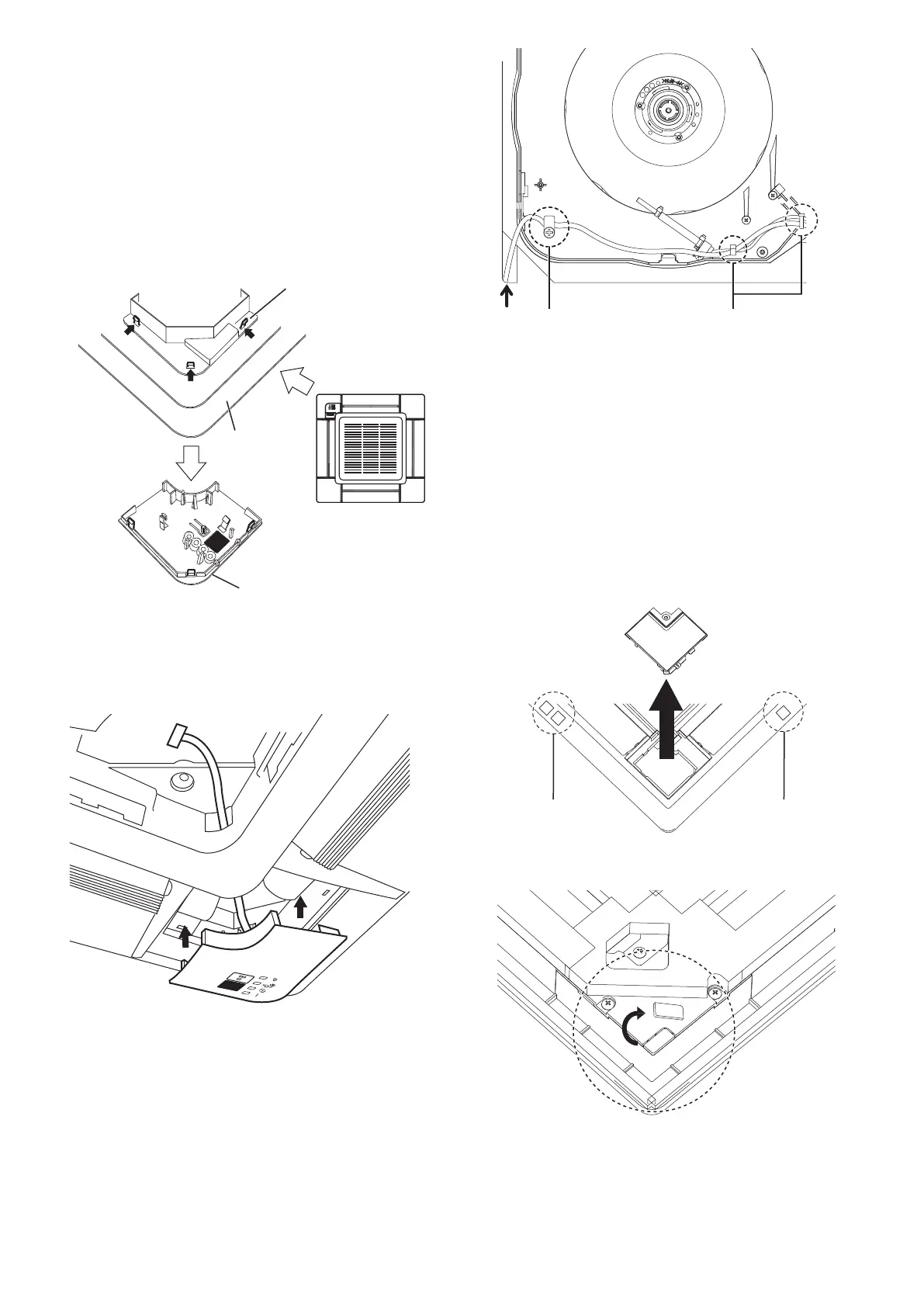

Installation of the receiver in case of
BRC082A41W
1 Remove the suction grille as described in the installation
manual supplied with the decoration panel.
2 Detach the brand name plate part of the decoration panel
piece, before attaching the decoration panel.
This part is not needed hereafter.
3 Remove the electrical wiring box cover as described in the
installation manual supplied with the indoor unit. (Be sure
to turn off power, before removing the electrical wiring box
cover.)
Push three hooks to
detach them from the
holes of the rear side.
Decoration
panel
Brand name plate part
4 Pass the wire harness from the receiver through the wiring
hole of the decoration panel. Then attach the receiver
to the decoration panel. Lead the wire harness to the
electrical wiring box on the indoor unit and connect it to
X1A connector on the transmitter board.
Remove the screw and
input the plastic band.
Then screw it back.
The wire harness goes
through the plastic band.
Clamp the wire harness
from the receiver to other
cables with the clamp.
Installation of the receiver in case of
BRC082A42W/S
1 Remove the suction grille as described in the installation
manual supplied with the decoration panel.
2 The receiver (1) should be installed in the corner that is
surrounded by 2 square marks on one side and 1 square
mark on the other, as shown in the illustration. Then
remove the plastic corner cover.
1 square mark2 square marks
3 Break off the plastic cover from back side of the panel.
01_EN_3P444567-1.indd 4 7/5/2016 11:05:29 AM
