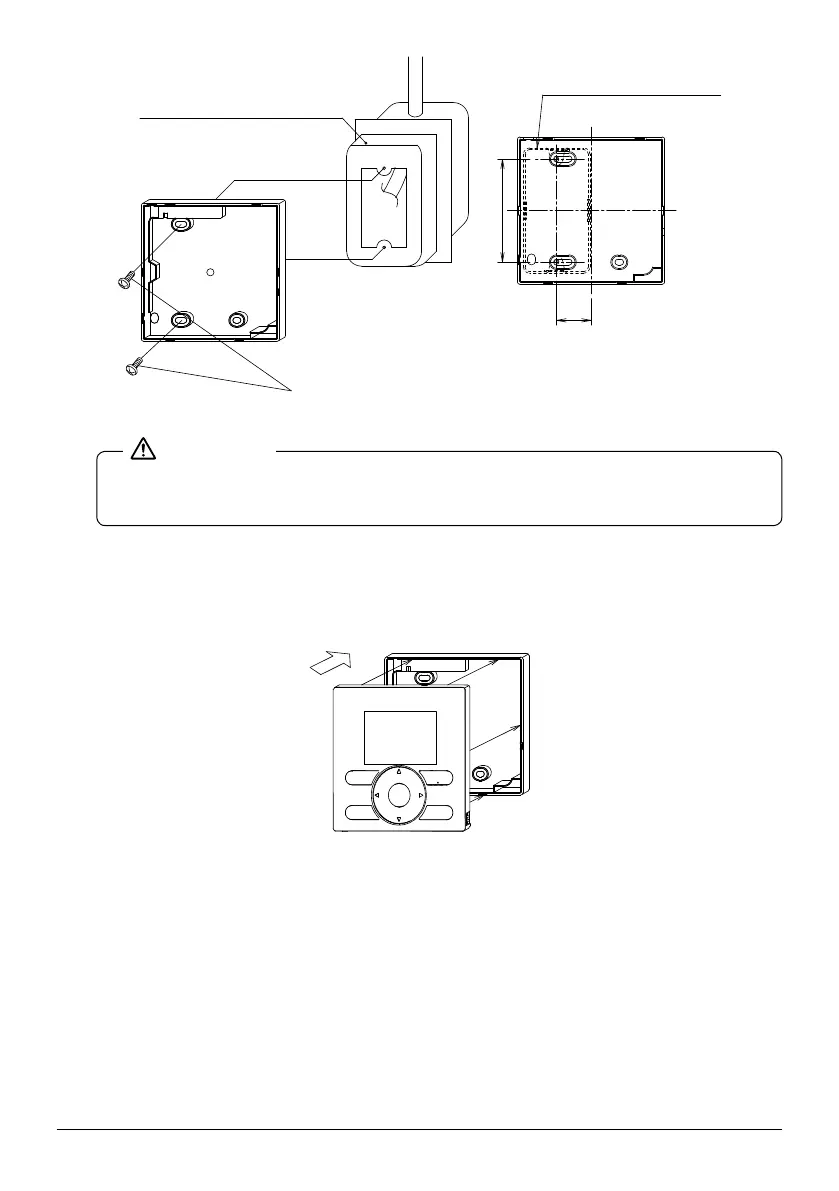

Switch box
(field supply)
(Use optional accessory
KJB111A)
Small screws (M4×16)
Switch box for one unit
(with no cover)
84
28
(Installation pitch)
● Select at place for installation face as possible.
● And, do not tighten the installation screws too much not to deform the lower case.
CAUTION
3-7 Install the upper case as original condition.
● Align the upper case with tabs of the lower case (6 points), inset and install the upper case.
● Install the wiring with care to prevent the pinch.
● Peel off a protective seal which is attached on the upper case.
