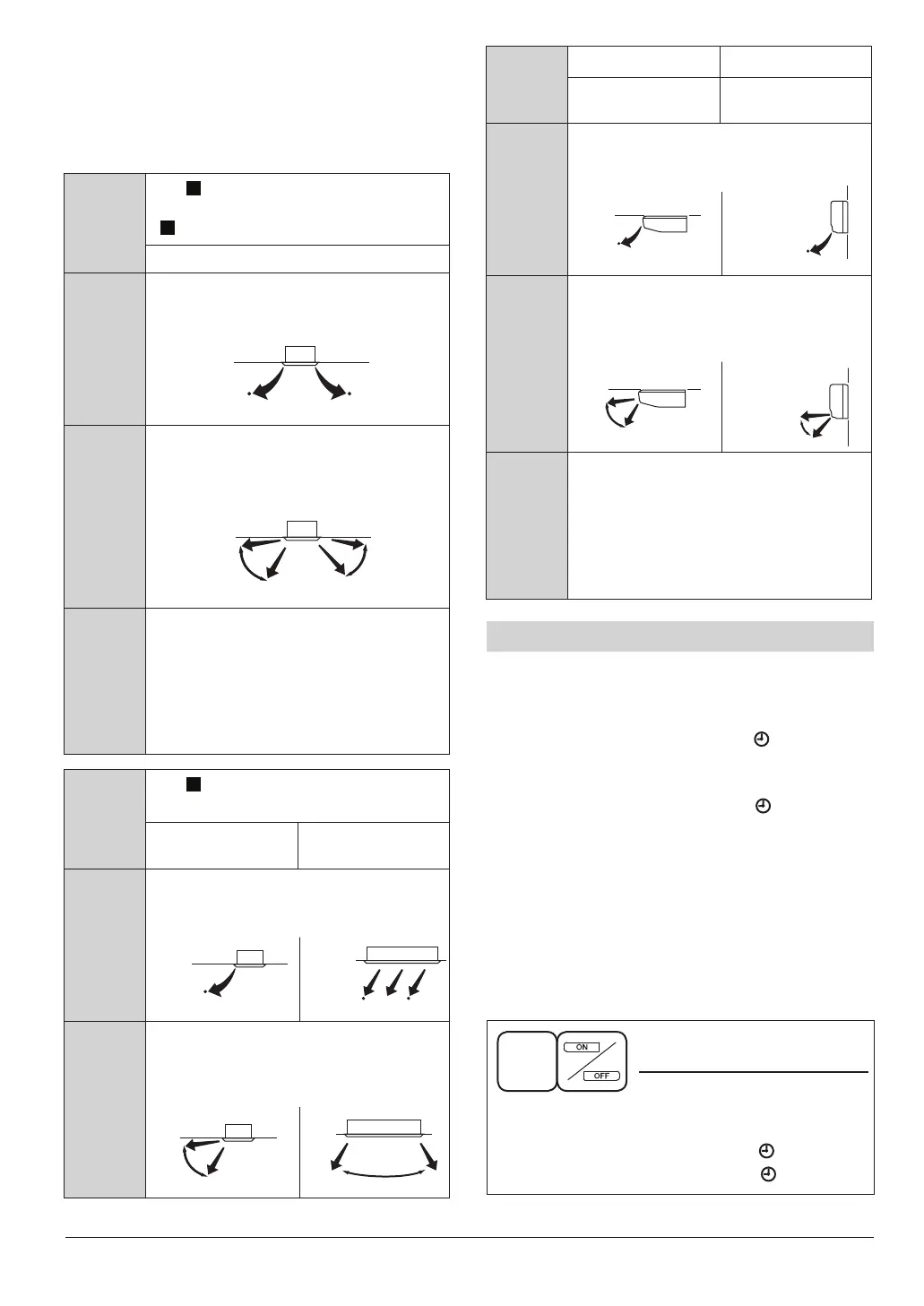

Daikin BRC7M635F - OPERATION CHARACTERISTICS; OPTIMUM OPERATION; MAINTENANCE (FOR SERVICE PERSONNEL)

12
Airflow
direction
settings
Ceiling Mounted Cassette
(Round Flow, 4-way Flow, 2-way Flow)
4-Way Blow Ceiling Suspended
Fixed
Up/down airflow
The airflow direction can be fixed in
any position in the range Position 0
to Position 4.
Indoor unit
(Desired position) (Desired position)
Swing
The airflow direction blades
automatically move up and down
within the range of Position 0 to
Position 4.
Indoor unit
(Swing) (Swing)
Automatic
The airflow direction changes
automatically according to the
temperature of the room. However,
during FAN OPERATION, the airflow
direction is set to Position 0.
* Depending on the model, it may
not be possible to use this function.
Automatic
The airflow direction changes
automatically according to the
temperature of the room. However,
during FAN OPERATION, the airflow
direction is set to Position 0.
* Depending on the model, it may
not be possible to use this function.
Indoor unit
(Desired position)
(Desired position) (Desired position)
Indoor
unit
Indoor unit
(Swing)
Indoor
unit
(Swing)
Description of airflow direction
settings and operation
The range of movement of the airflow
direction blades varies by indoor unit model.
Consult the dealer of purchase for details.
Airflow
direction
settings
Ceiling Mounted Cassette
(Corner, Single Flow)
Fixed
Up/down airflow
Left/right airflow
(Single flow only)
The airflow direction can be fixed in
any position in the range Position 0
to Position 4.
Swing
The airflow direction blades
automatically move up/down or left /
right within the range of Position 0
to Position 4.
Ceiling suspended
Indoor unit
(Desired position)
Indoor unit
(Desired position)
Indoor unit
(Swing)
Indoor unit
(Swing)
Airflow
direction
settings
Fixed
Up/down airflow Up/down airflow
The airflow direction can be fixed in
any position in the range Position 0
to Position 4.
Swing
The airflow direction blades
automatically move up and down
within the range of Position 0 to
Position 4.
Wall mounted
Operate in the following order.
Setting the timer
1
TIMER MODE ON/OFF
Press the TIMER MODE ON/OFF button.
The display flashes.
For setting the timer stop .... “ ”
For setting the timer start .... “ ”
OFF
ON
PROGRAM TIMER OPERATION
• The timer is operated in the following two
ways.
Programming the stop time ( OFF)
.... The air conditioner stops operating
after the set time has elapsed.
Programming the start time ( ON)
.... The air conditioner starts operating
after the set time has elapsed.
• The start and the stop time can be
simultaneously programmed.
• The timer setting is effective only once.
When using the TIMER operation every
day, the setting is required before each use.
