Instruction Si18-525B
230 Operation Manual
To 3-D Airflow
1. 3. Press the “SWING button ” and the “SWING button ”:
the “ ” and “ ” display will light up and the flap and louvers will
move in turn.
To cancel 3-D Airflow
2. 4. Press either the “SWING button ” or the “SWING button ”
Notes on louvers angles
Notes on flap angle
ATTENTION
•
Always use a remote controller to adjust the louvers angles. In side the air outlet, a fan is rotating at a
high speed.
•

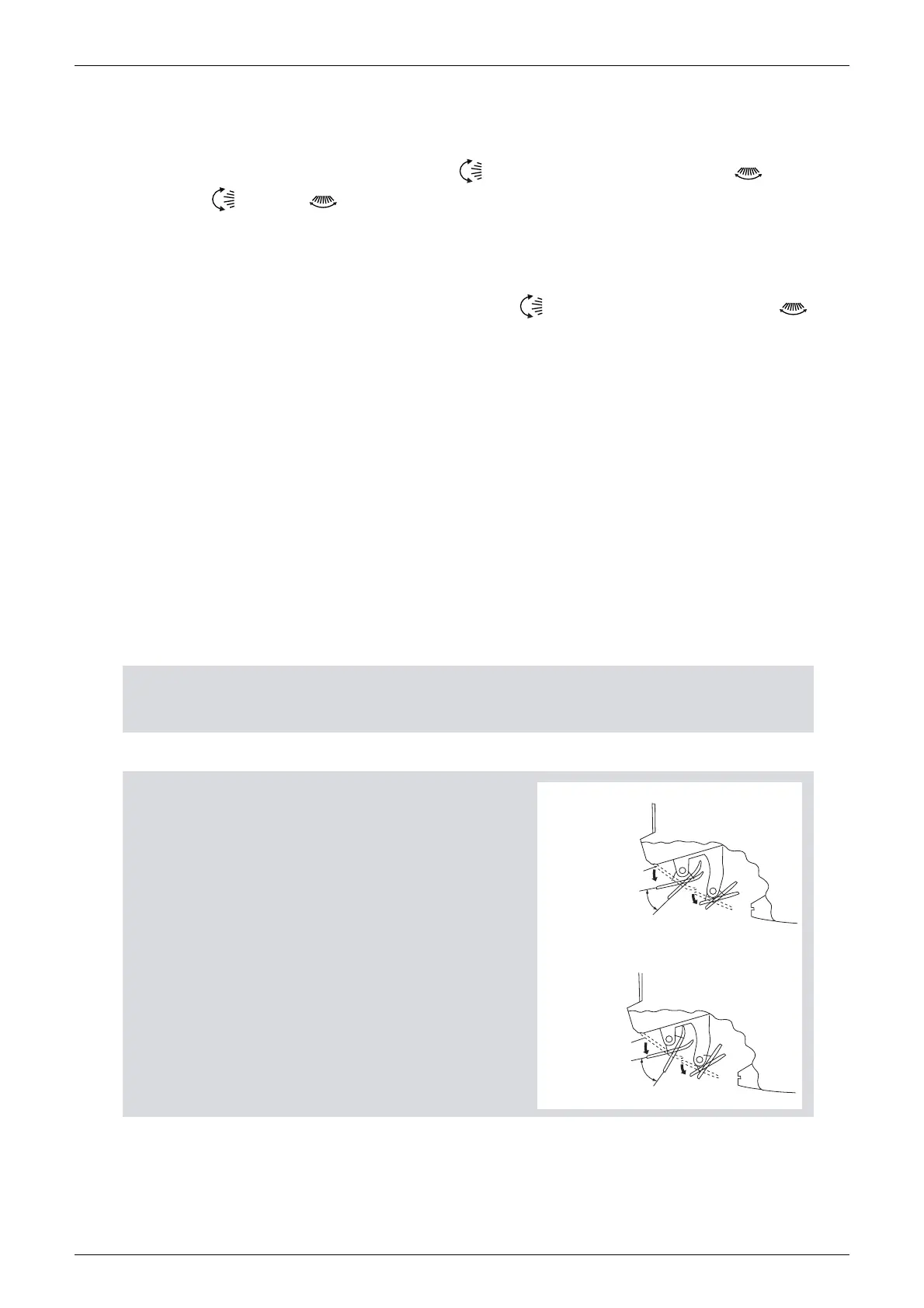

When “
SWING button
” is selected, the flaps swinging
range depends on the operation mode. (See the figure.
)
Three-Dimensional (3-D) Airflow
•
Using three-dimensional airflow circulates cold air,
which tends to collected at the bottom of the room, and
hot air, which tends to collect near the ceiling,
throughout the room, preventing areas of cold and hot
developing.
ATTENTION
•
Always use a remote controller to adjust the flaps angle.
If you attempt to move it forcibly with hand when it is
swinging, the mechanism may be broken.
STOP
COOL
approx. 10˚~40˚
DRY
approx. 5˚~35˚
In COOL or DRY mode
STOP
HEAT
approx. 15˚~55˚
In HEAT or FAN mode
FAN
approx. 5˚~55˚
To Next Page
