Printed Circuit Board Connector Wiring Diagram Si18-525B
64 Printed Circuit Board Connector Wiring Diagram

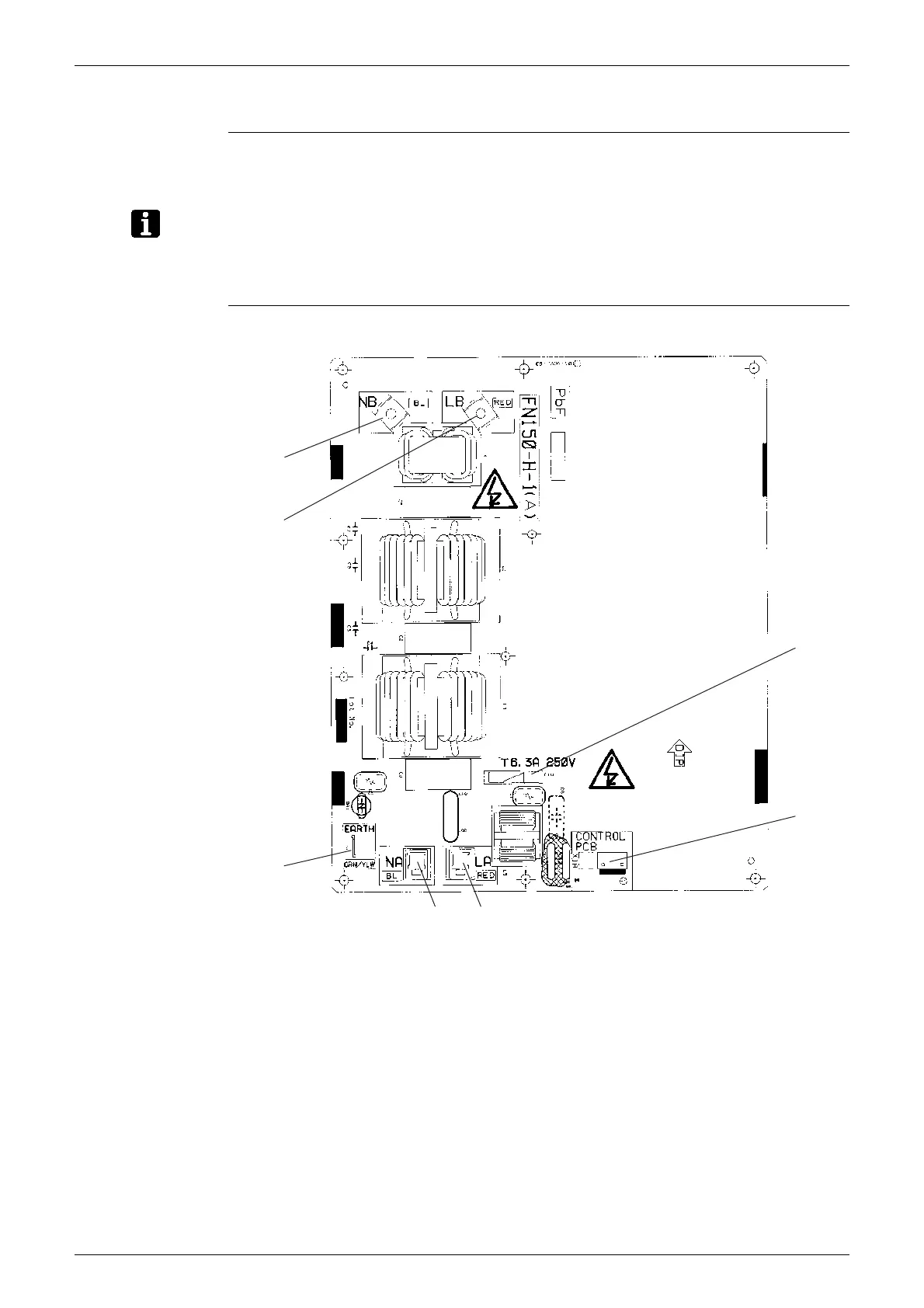

1.1.3 Filter PCB (A3P)
Connectors 1) X1A Connector for Control PCB (A1P)
2) LA, NA Terminal for X1M (Power Supply Terminal Strip)
3) LB, NB Terminal for Inverter PCB (A2P)
Note: Other Designation
1) F1U Fuse (250V 6.3A)
2) GND Earth Terminal
RMX(K)S models
NB
LB
GND
NA LA
X1A
F1U
2P135804
To Next Page
