Printed Circuit Board Connector Wiring Diagram SiAU18-715

64 Printed Circuit Board Connector Wiring Diagram

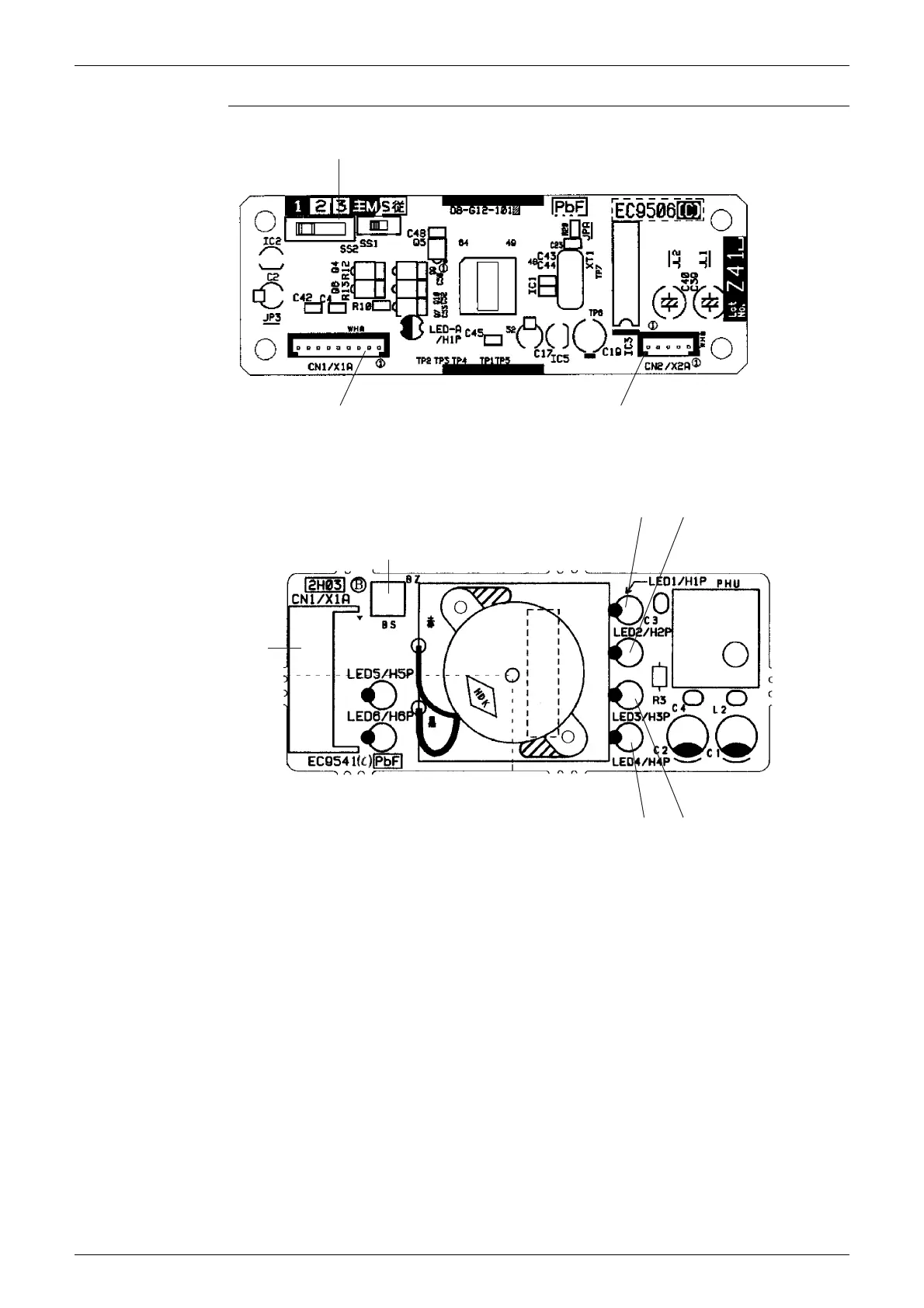

PCB Detail PCB(2): Signal Receiver PCB (A3P)

PCB(3): Display PCB (A4P)

X2A

3P156326

X1A

SS2

BS1

3PA58761

X1A

LED3LED4

LED2

LED1
