14 | About the units and options
Installer and user reference guide
52
EKVDX32~100A2VEB
VRV system air conditioner
4P664010-1 – 2021.08
14 About the units and options
In this chapter
14.1 Identification........................................................................................................................................................................... 52
14.1.1 Identification label: Indoor unit ............................................................................................................................. 52
14.2 About the indoor unit ............................................................................................................................................................. 52
14.3 System layout.......................................................................................................................................................................... 53
14.4 Combining units and options.................................................................................................................................................. 54
14.4.1 Possible options for the indoor unit ...................................................................................................................... 55
14.4.2 Compatibility with outdoor unit ............................................................................................................................ 55
14.4.3 Compatibility with VAM models ............................................................................................................................ 55
14.1 Identification
NOTICE
When installing or servicing several units at the same time, make sure NOT to switch
the service panels between different models.

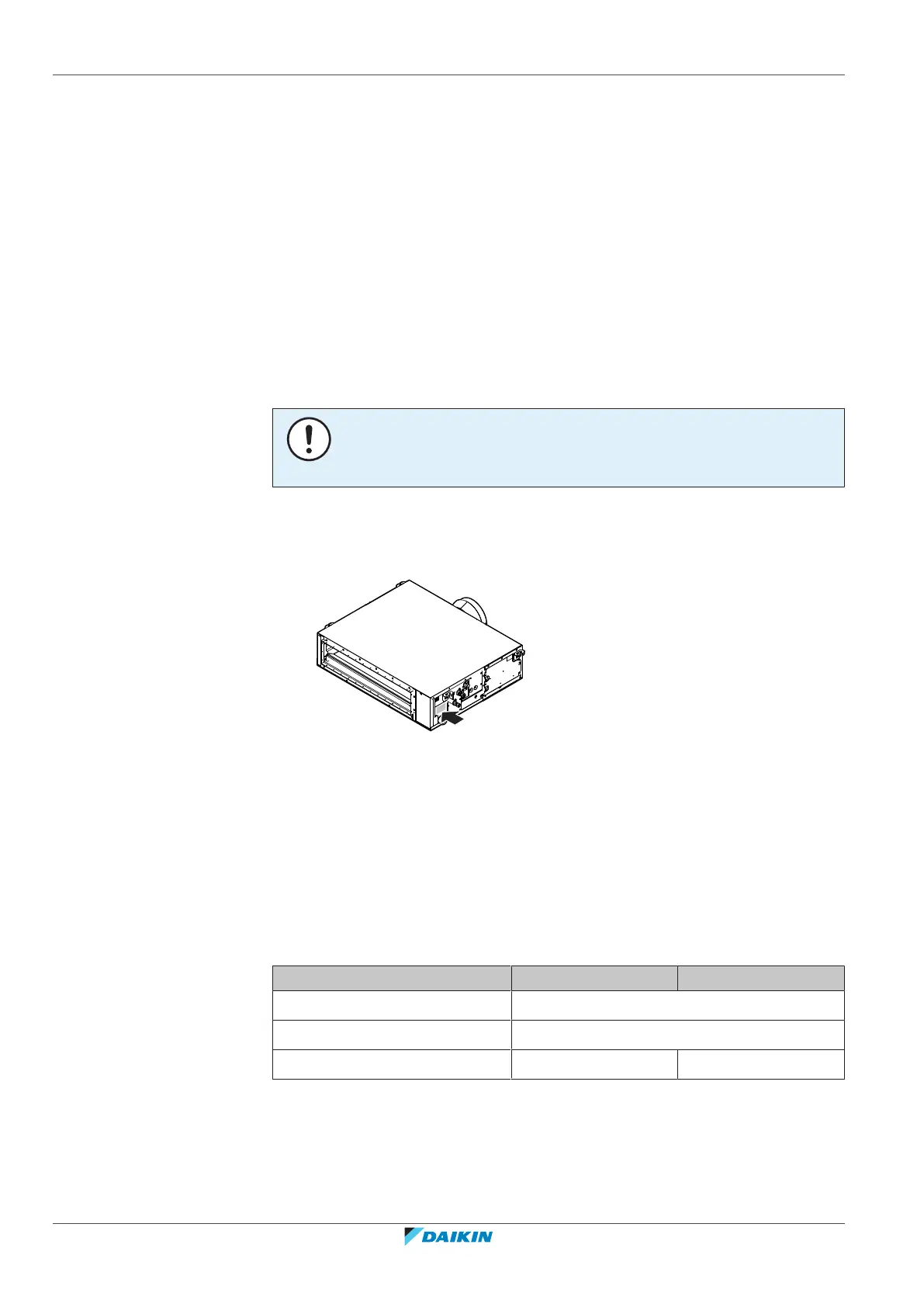

14.1.1 Identification label: Indoor unit
Location
14.2 About the indoor unit
For safe and effective operation:
▪ In case an EKVDX unit is connected, the maximum allowed outdoor unit
temperature is 46°C (even if the outdoor unit is capable to go higher if no EKVDX
is connected).
▪ The supply air coming from the heat reclaim ventilation unit should correspond
to the following temperature and humidity ranges.
Cooling Heating
Air supply temperature 11~35°CDB
Indoor humidity
(a)
≤80%
Setting temperature range 13~30°C 24~45°C
(a)
To avoid condensation and water dripping out of the unit. If the temperature or the
humidity is beyond these conditions, safety devices may be put in action and the air
conditioner may not operate.
