INFORMATION
The EKVDX is a pretreatment unit. Therefore, the temperature setpoints:
▪ are not displayed on the user interface.
▪ can only be modified with field settings (see "19.4 Field settings" [480] for the
appropriate field settings).
14.3 System layout
The EKVDX is an airconditioning unit for pretreatment of incoming supply air from
a VAM heat reclaim ventilation unit. For comfort temperature control, it is still
required to install a normal indoor unit.
Do not place the EKVDX before the heat reclaim ventilation unit.
INFORMATION
The following figures are just examples and may NOT completely match your system
layout.
d
a
f
c
h
i
g
e
b

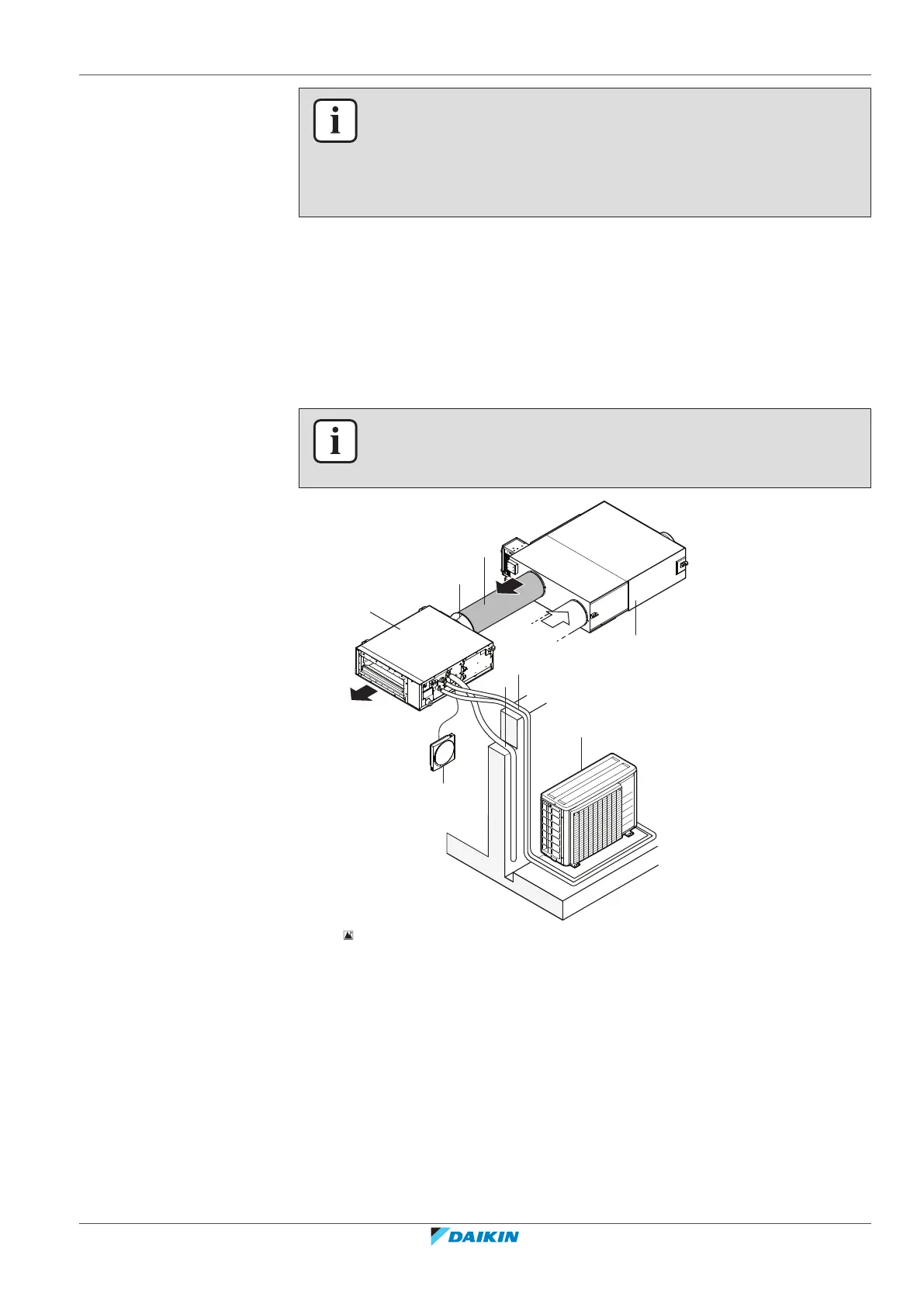

14‒1 For VAM500~1000 and EKVDX32~80
