For the setting… Refer to…
Emitter type [3.7] "10.6.4Additional zone"[4181]
Control (read only) [3.9]
Setpoint mode [3.4]
Heating WD curve [3.5] (if
applicable)
Cooling WD curve [3.6] (if
applicable)
Schedule [3.1]
Tank
Heat up mode [5.6] "10.6.6Tank"[4194]
Comfort setpoint [5.2]
Eco setpoint [5.3]
Reheat setpoint [5.4]

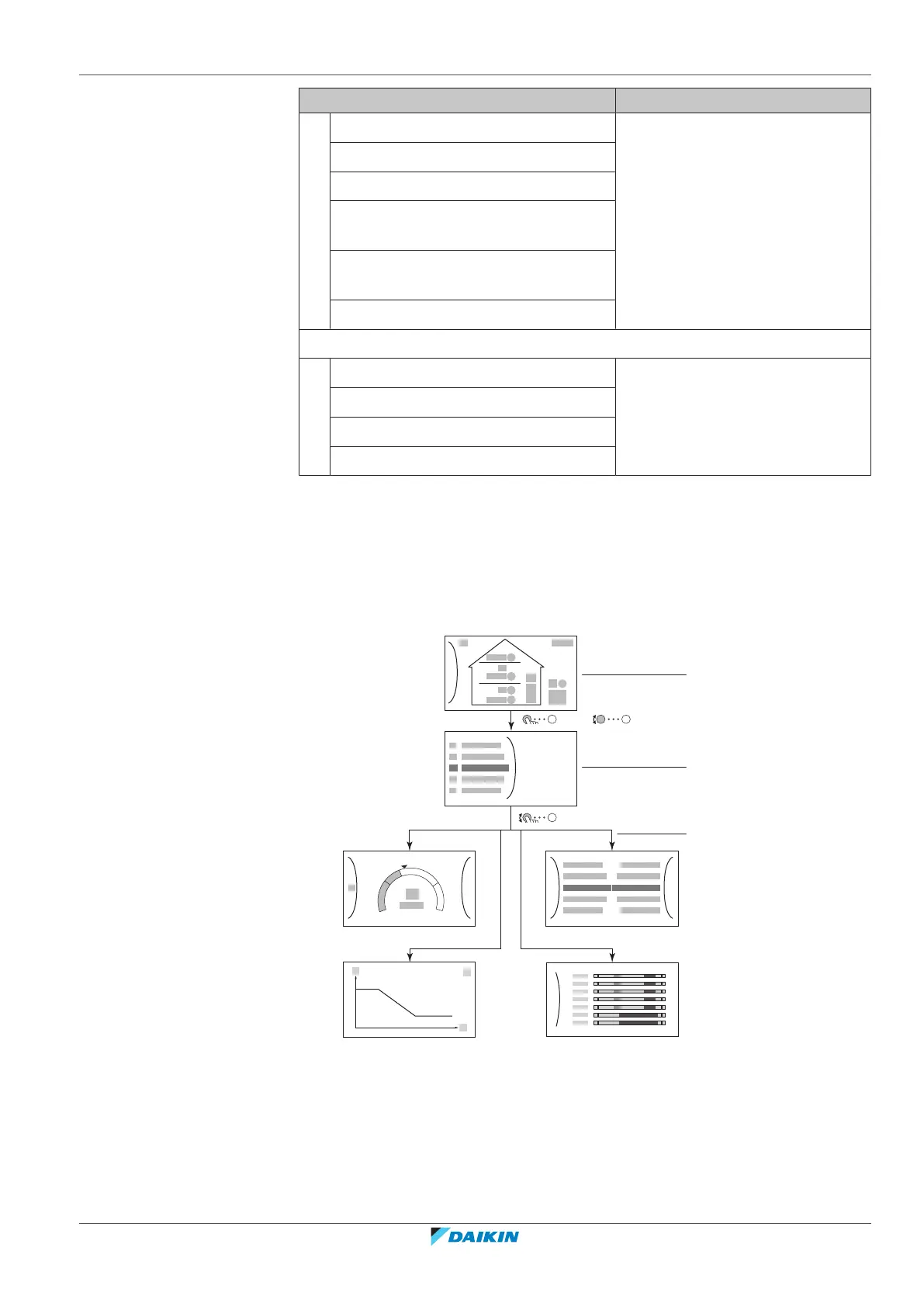

10.3 Possible screens
10.3.1 Possible screens: Overview
The most common screens are as follows:
+
–
a
OR
b
c
c2
c4
c1
c3
a Home screen
b Main menu screen
c Lower level screens:
c1: Setpoint screen
c2: Detailed screen with values
c3: Screen with weather-dependent curve
c4: Screen with schedule
