DANGER: RISK OF BURNING
See "7.5.8 To connect the refrigerant piping to the outdoor unit" [4 83] and
"7.9.6To connect the electrical wiring to the outdoor unit"[494].

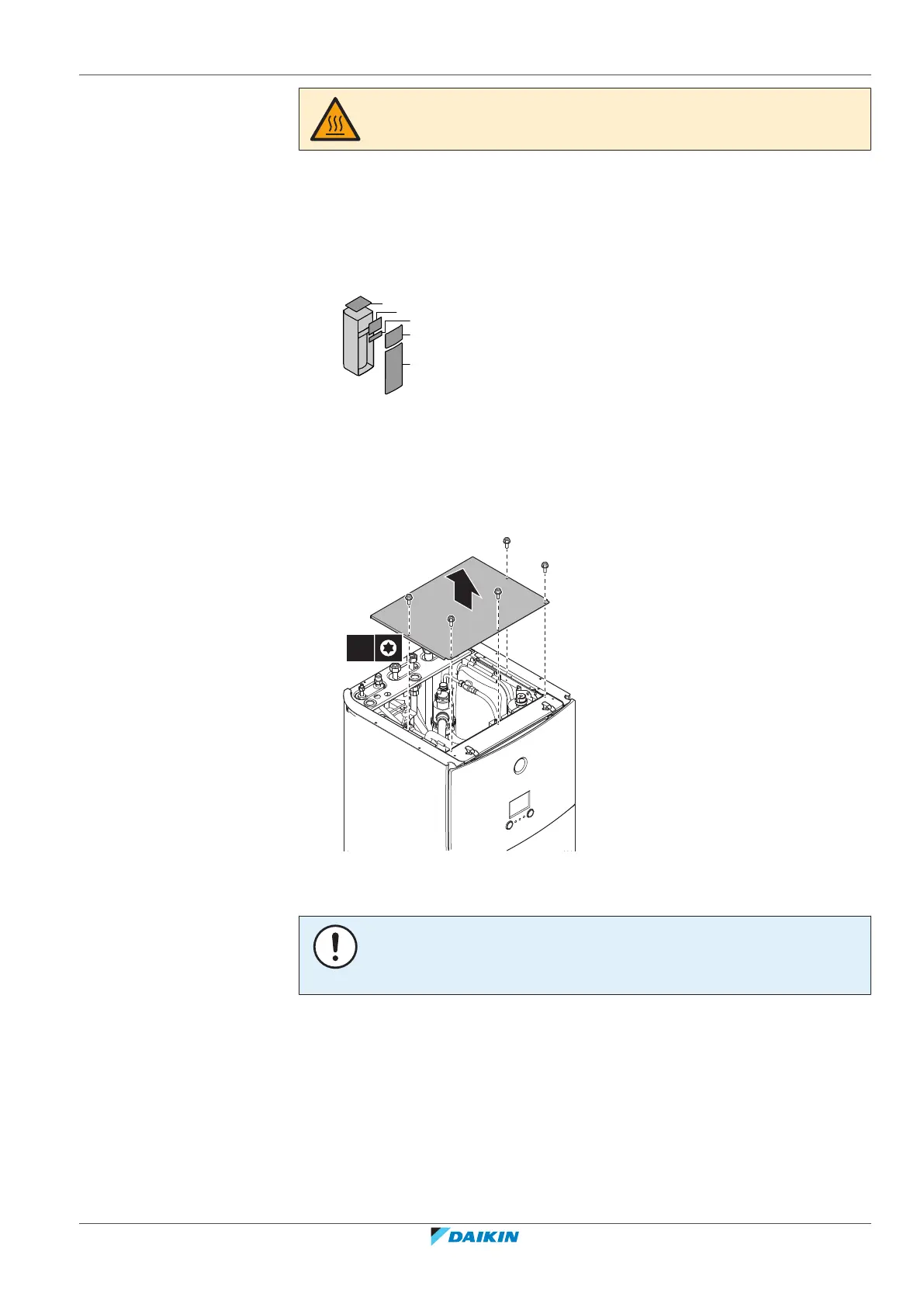

7.2.3 To open the indoor unit
Overview
a
b
d
c
e
a Top panel
b User interface panel
c Switch box cover
d Front panel
e High voltage switch box cover
Open
1 Remove the top panel.
5×
T25
2 Remove the user interface panel. Open the hinges at the top and slide the top
panel upwards.
NOTICE
If you remove the user interface panel, also disconnect the cables from the back of
the user interface panel to prevent damage.
