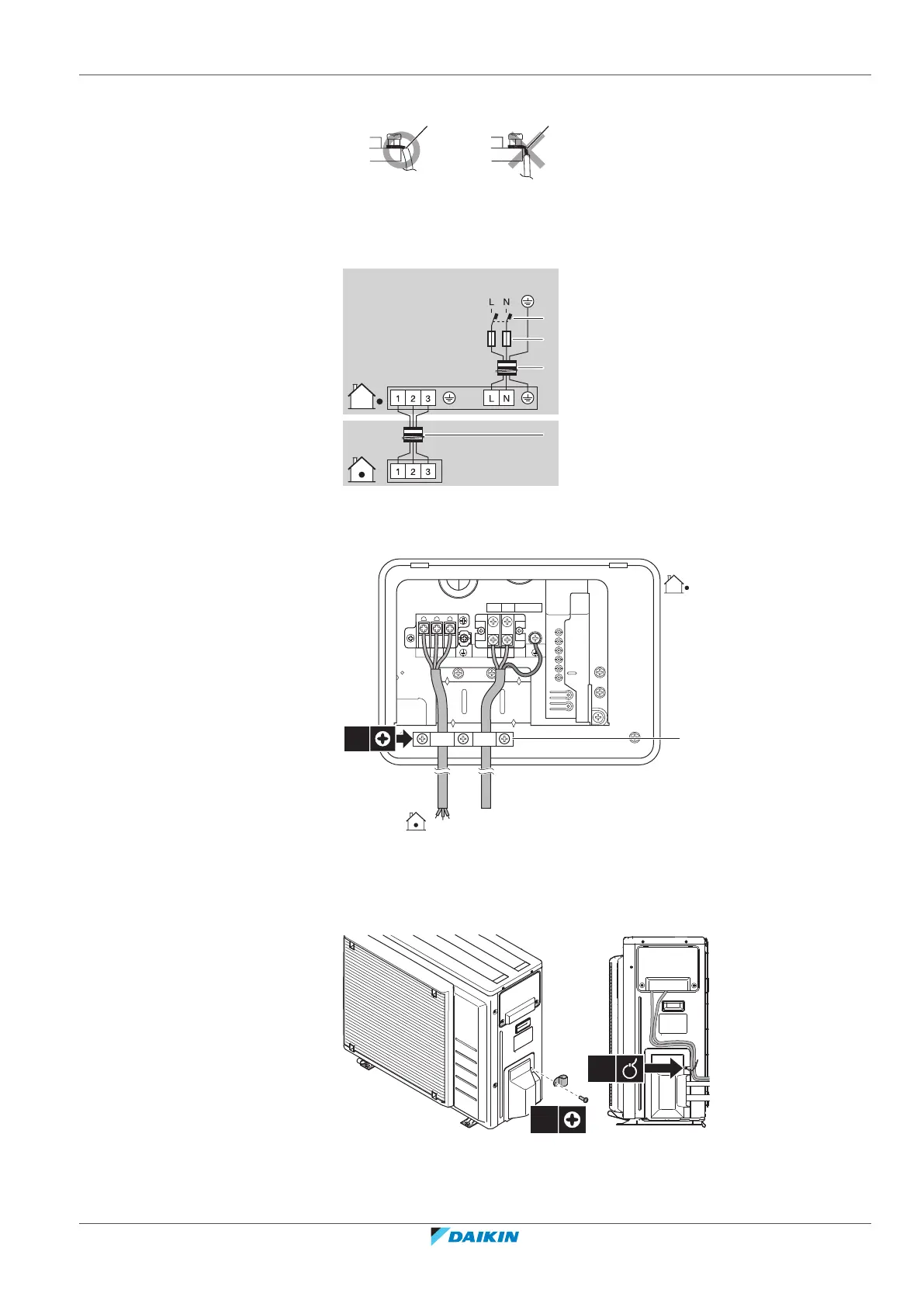

2 Strip insulation (20mm) from the wires.
a b
a Strip wire end to this point
b An excessive strip length may cause electrical shock or leakage
3 Connect the interconnection cable and power supply as follows. Ensure stress
relief by using the wire clamp.
a
c
d
1N~ 50 Hz
220-240 V
b
a Interconnection cable
b Power supply cable
c Fuse
d Earth leakage circuit breaker
1 2 3
L N
L N PWR
12 3
3×
a
a Wire clamp
4 Reattach the switch box cover.
5 Optional: Attach the wire clamp (accessory) to the screw of the refrigerant
piping cover, and fix the cables to it with a cable tie.
1×
1×
6 Connect an earth leakage circuit breaker and fuse to the power supply line.
