9 | Electrical installation
Installer reference guide
120
ERGA04~08EAV3(A) + EHVH04+08SU18+23EA6V
Daikin Altherma 3 R F
4P629090-1 – 2020.08
[9.2.2] DHW pump
[9.2.3] DHW pump schedule
1 Open the following (see "7.2.4To open the indoor unit"[462]):
1 Top panel
2 User interface panel
3 Upper switch box cover

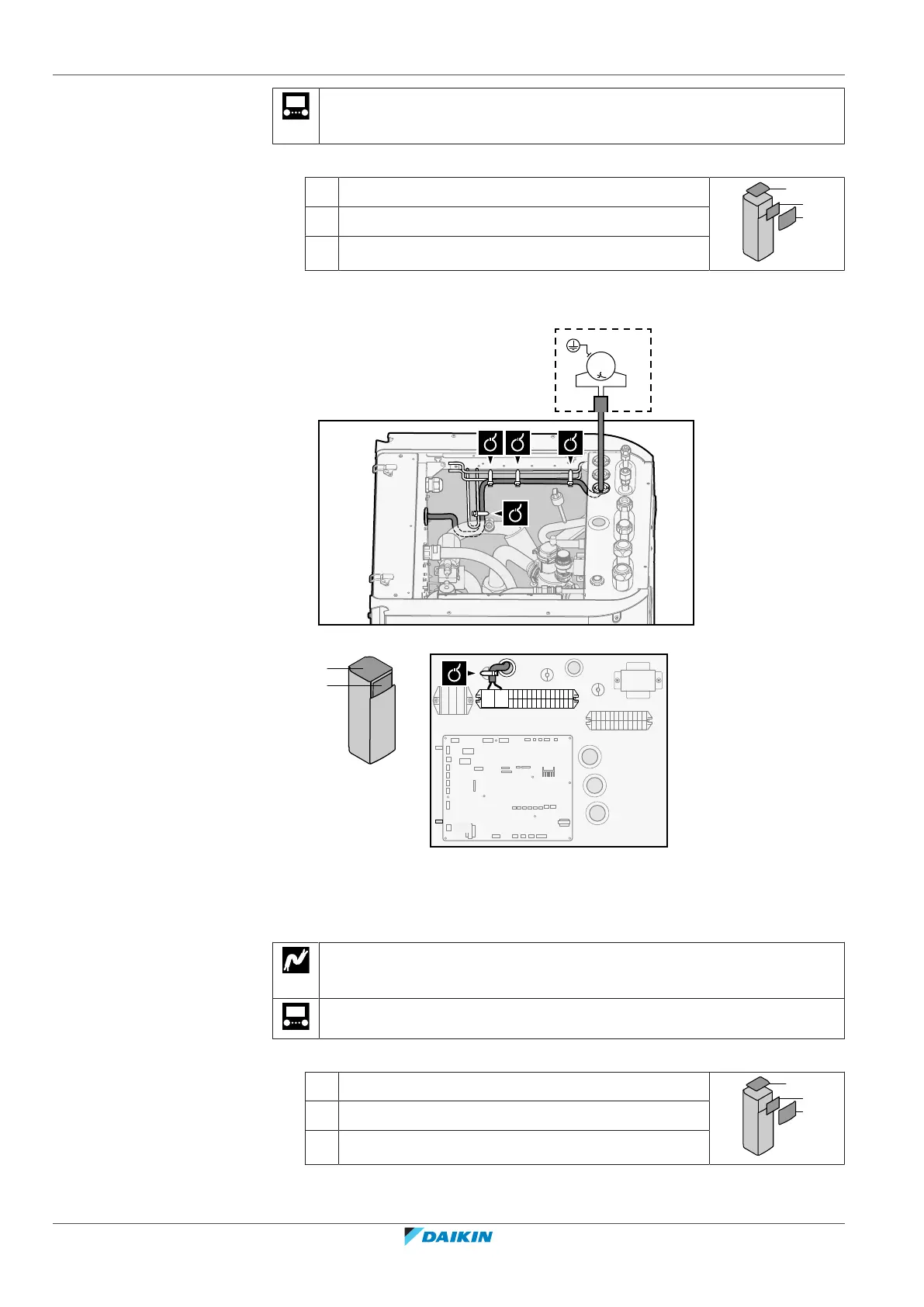

2 Connect the domestic hot water pump cable to the appropriate terminals as
shown in the illustration below.
3 Fix the cable with cable ties to the cable tie mountings.
9.3.6 To connect the alarm output
Wires: (2+1)×0.75mm²
Maximum load: 0.3A, 250VAC
[9.D] Alarm output
1 Open the following (see "7.2.4To open the indoor unit"[462]):
1 Top panel
2 User interface panel
3 Upper switch box cover
2 Connect the alarm output cable to the appropriate terminals as shown in the
illustration below.
