10
Safety device settings
FAQ71-100BUV1B
Model Safety devices FAQ71BUV1B FAQ100BUV1B
FAQ∼BUV1B
Fuse −−
Fan motor thermal fuse (°C) −−
Fan motor thermal protector (°C) −
OFF: 130±5
ON: 83±20
DU423-9101K
11
Installation

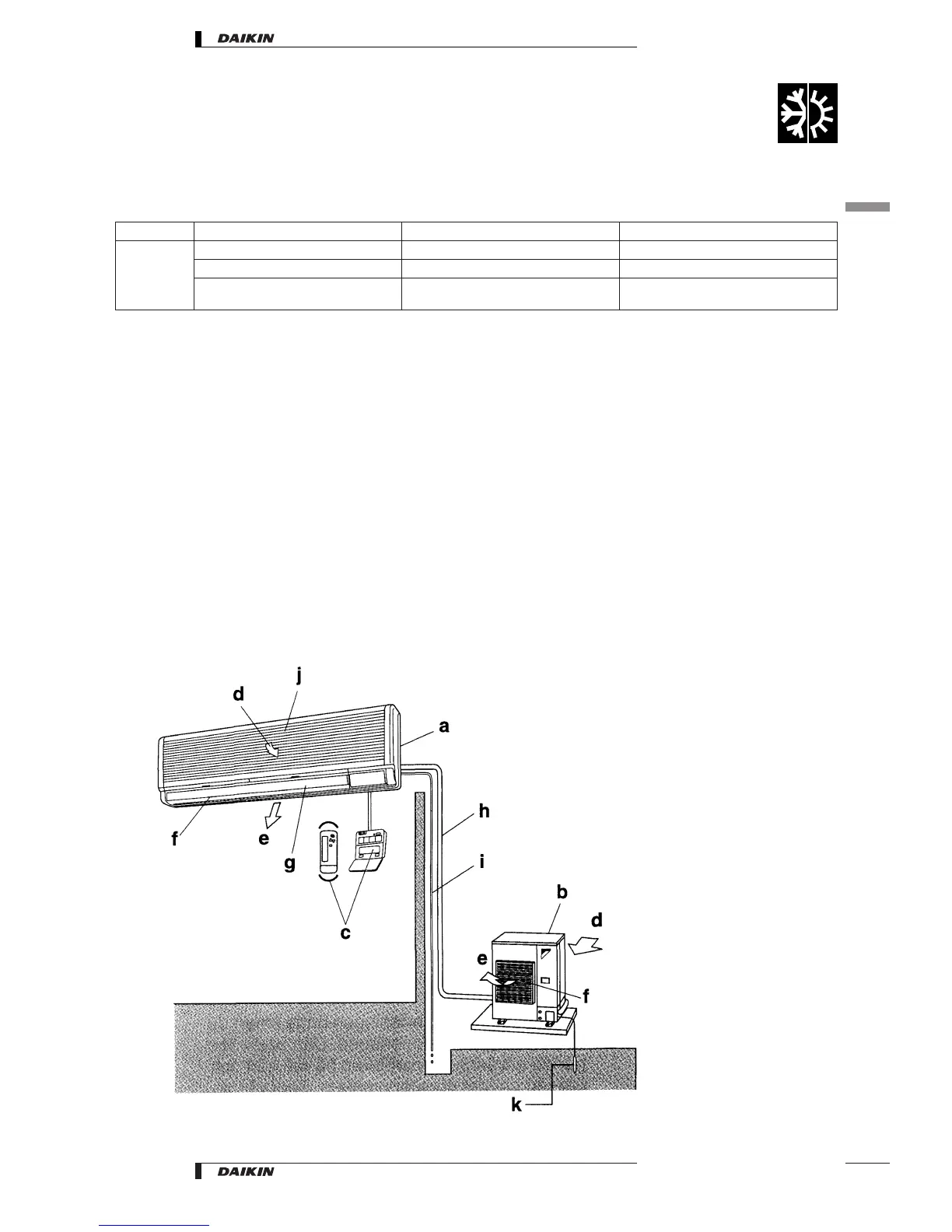

Names and functions of parts
j
a
Indoor unit
j
b
Outdoor unit
j
c
Infrared remote control
j
d
Inlet air
j
e
Discharged air
j
f
Air outlet
j
g
Air flow flap (at air outlet)
j
h
Refrigerant piping, connection electric wire
j
i
Drain pipe
j
j
Air inlet
The built-in air filter removes dust and dirt.
j
k
Ground wire
Wire to ground from the outdoor unit to prevent electrical shocks.
•
Wall Mounted, Inverter Controlled Unit • R-410A • FAQ71-100BUV1B
1
10
17
• Split - Sky Air • Indoor Units
