English 3
2. BEFORE INSTALLATION
Do not exert pressure on the resin parts when opening the unit or when moving it after opening.
Be sure to check in advance that the refrigerant to be used for installation is R410A. (If a wrong refrig-
erant is charged, the unit will not properly operate.)
For the installation of the outdoor unit, refer to the installation manual attached to the outdoor unit.
Do not dispose of any parts necessary for installation until the installation is completed.
In order to protect the indoor unit from damage, use packing materials to protect the unit after carrying until
the installation starts.
Decide the route for carrying the unit to the installation site.
Leave the unit inside its packaging while moving, until reaching the installation site. If the unit needs to be
unpacked before moving, be careful not to damage the unit.
2-1 PRECAUTIONS
Be sure to read this manual before installing the indoor unit.
This unit is suitable for installation in a household, commercial and light industrial environment.
Do not use the unit in locations where the salt content in the air is high such as beachfront, or where the
voltage fluctuates such as factories, or where the base vibrates such as automobiles or marine vessels.

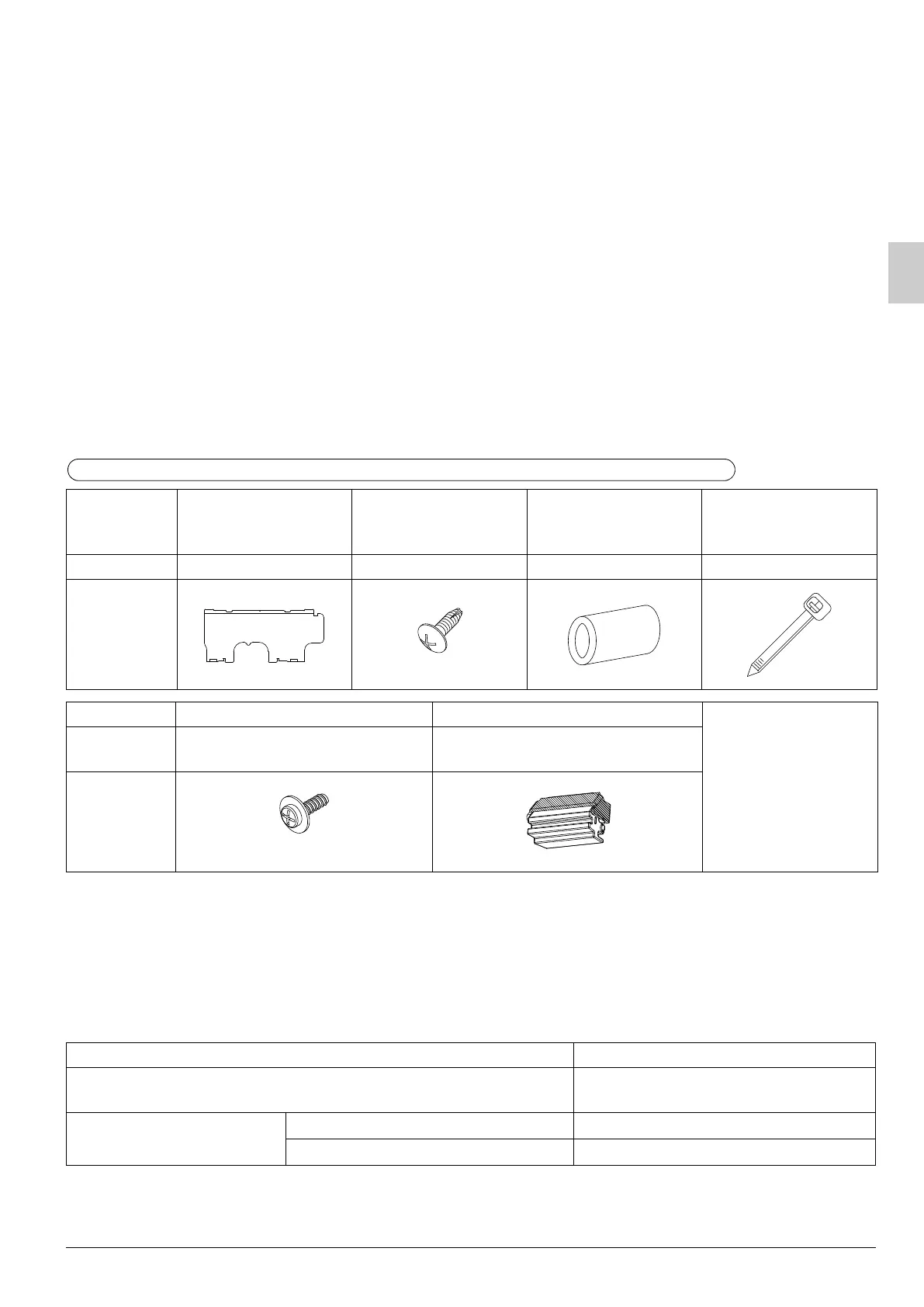

2-2 ACCESSORIES
Check the following accessories are included with the unit.
2-3 OPTIONAL ACCESSORIES
The optional remote controller is required for this indoor unit.
(However, the remote controller is not required for the slave unit of a simultaneous operation system.)
These are two types of remote controllers: wired and wireless. Select a remote controller from
Table 1 according to customer request and install in an appropriate place.
(For installation, follow the installation manual included with the remote controllers.)
Table 1
Name (1) Installation panel
(2) Attachment
screws for the
installation panel
(3) Insulating tape (4) Clamp
Quantity 1 set 9 pcs. 1 pc. 1 large 3 small
Shape
M4 × 25L
Name (5) Securing screws (6) Screw cover
(Other)
Operation manual
Installation manual
Quantity
2 pcs.
(3 pcs. for 100 type)
3 pcs.
(for 100 type only)
Shape
M4 × 12L
Remote controller Model
Wired type
BRC1E52A7/BRC1E51A7/
BRC1D528
Wireless type
Heat pump type
BRC7EB518
Cooling only type
BRC7EB519
Do not dispose of any parts necessary for installation until the installation is completed.
