Daikin FDEQ100B7V3B - Fdq125, 200, 250 B

ESIE05-04 Switch Box Layout
Part 1 – System Outline 1–101
3
1
4
5
5.7 FDQ125, 200, 250B

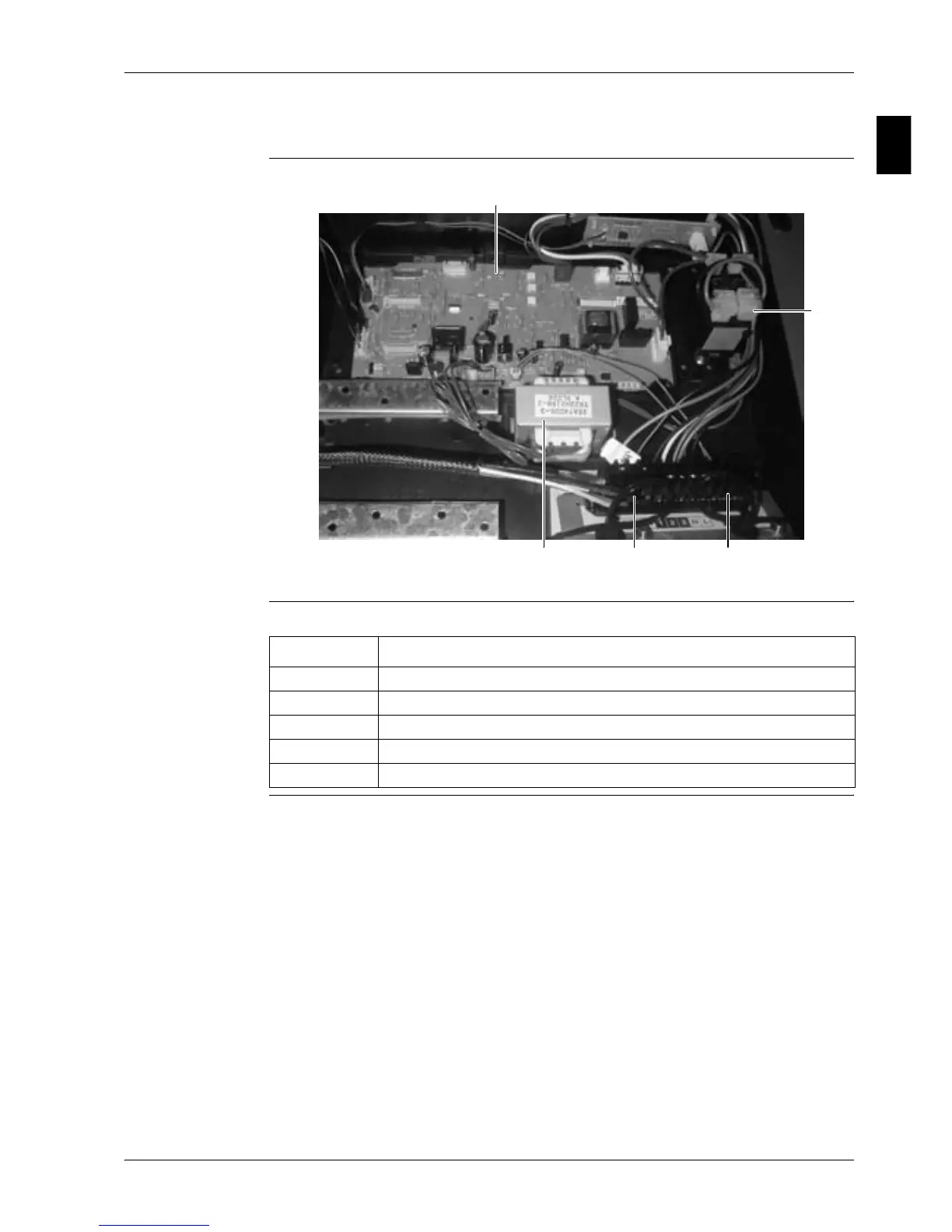

The illustration below shows the switch box layout:
PCB
C1R
X1MT1R X2M
Item Description
PCB Printed circuit board
T1R Transformer
C1R Fan motor capacitor
X1M Terminal strip (for remote control P1/P2)
X2M Terminal strip (interconnection wiring)
