Disassembly and Maintenance ESIE05-04
5–80 Part 5 – Disassembly and Maintenance
1.13.1 Removal of Air Filter and Suction Grille
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points

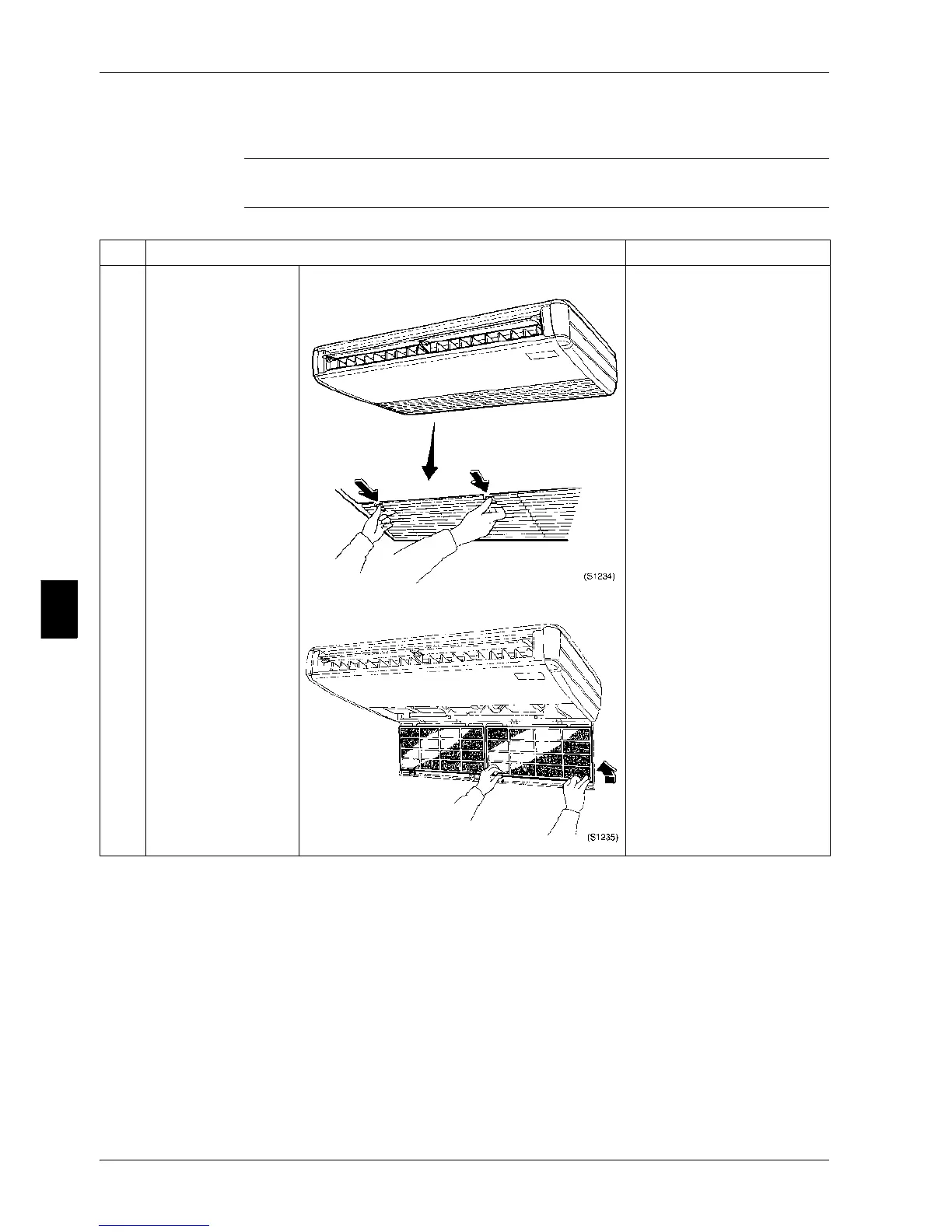

1 Push the 2 tabs and
open the suction grilles.
2 Push the air filter
installation panel from 2
places in the direction of
the arrow, and pull the air
filter out toward yourself.
To Next Page
