General Outline ESIE05-04
1–22 Part 1 – System Outline
3
1
1
4
5
1.11 FDQ200, 250B
Outlook and
dimensions

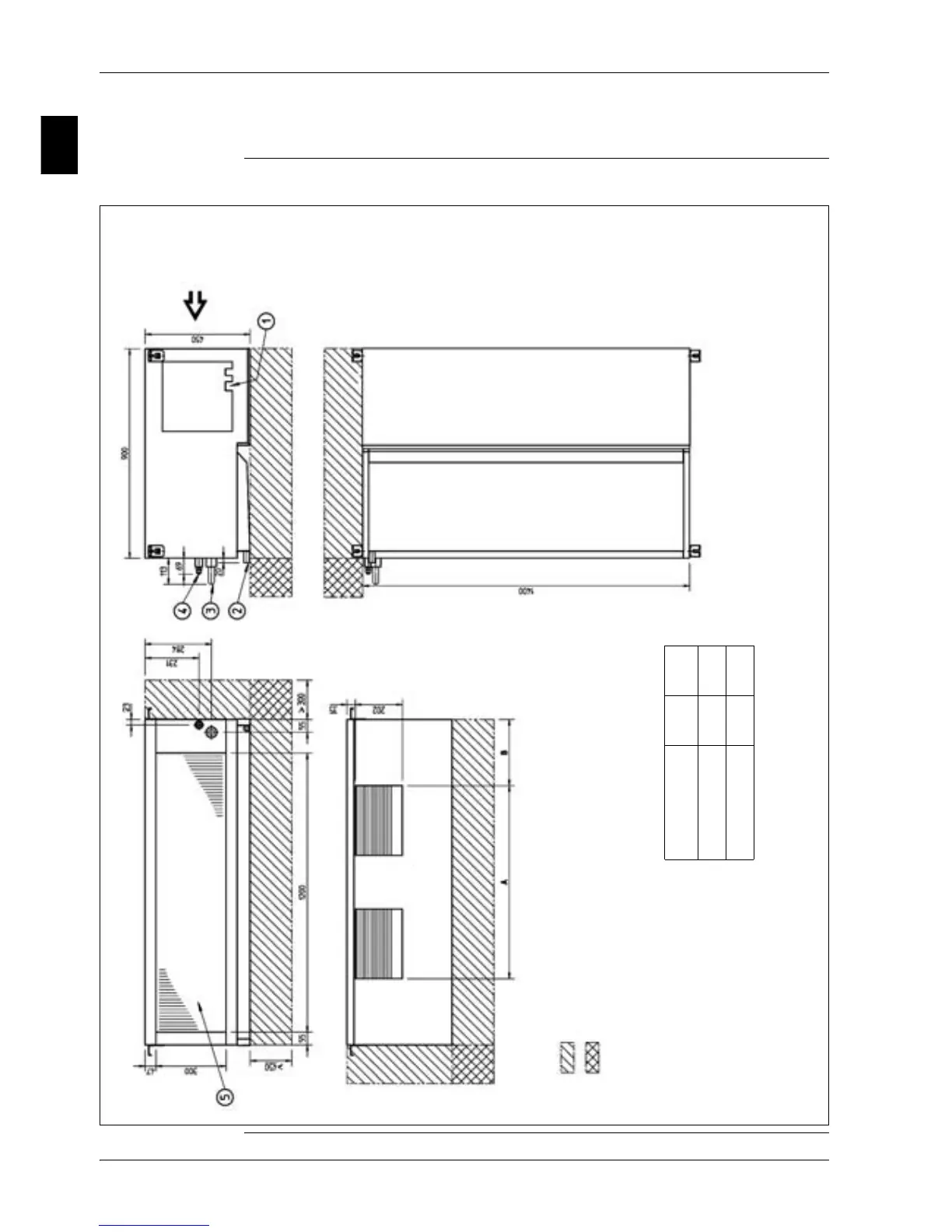

The illustration below shows the outlook and the dimensions of the unit (mm).
VIEW A
VIEW A
NOTES:
SERVICE SPACE
EXTRA SERVICE SPACE FOR OPTIONAL DRAINPUMP
Model A B FDQ200B7V3B 830 285 FDQ250B7V3B 890 255
