Daikin FDYM-PV1 Service Manual

SiK401004_A
INSTALLATION 68

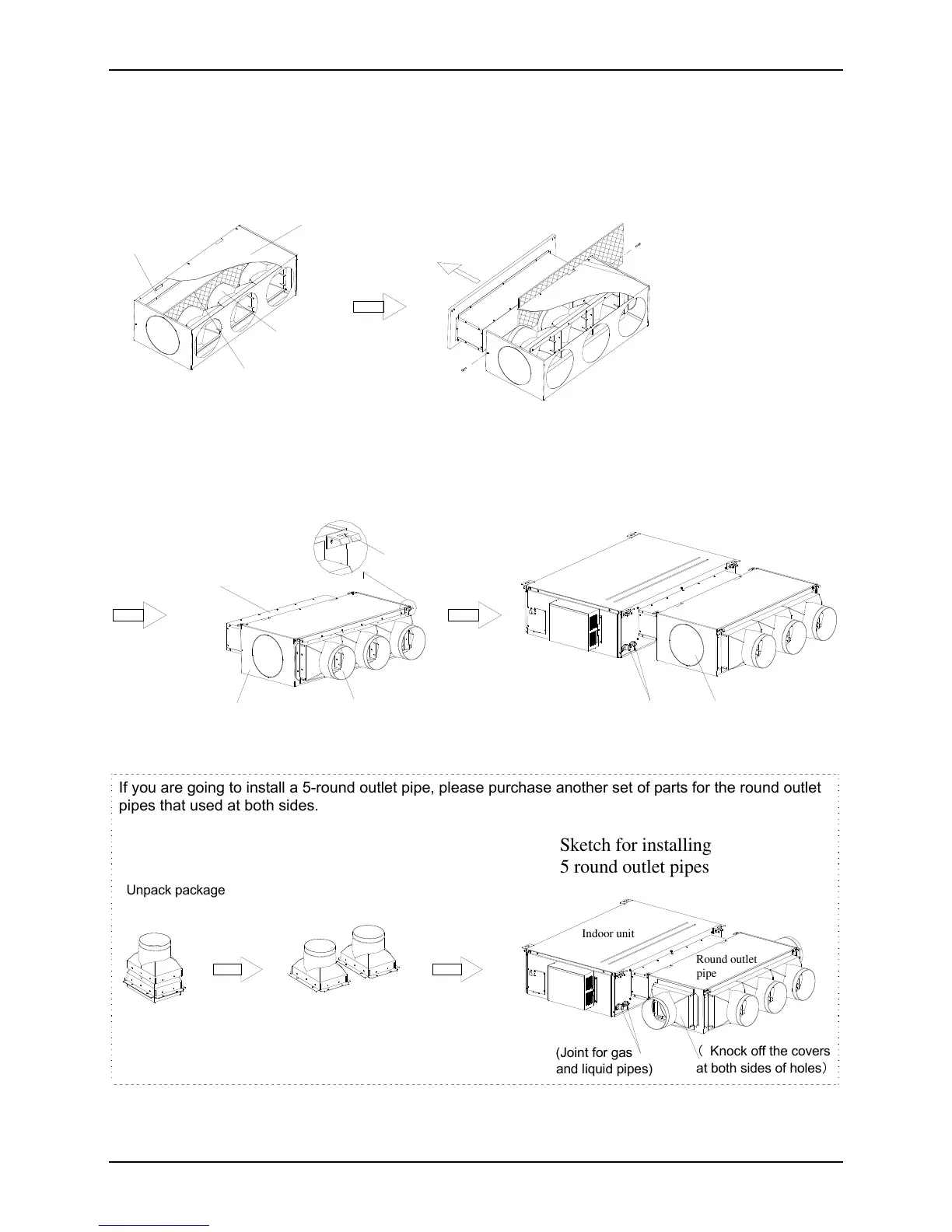

2) Installation of Round Air Outlet
Take out both of the fixing bolts at left
and right sides, and then take out the
parts from the unit one by one
Unpack package
Packaging board
(unnecessary when installing)
Round outlet
pipe parts
Outlet pipe parts
Enclosure
(Joint for gas
and li
q
uid
p
i
p
es
)
Indoor unit
InstallBottom
Sketch for installing
3 round outlet pipes
Round outlet
pipe
（ Hole）
Round outlet
pipe parts
Outlet pipe parts
Enclosure
Tighten the parts by bolts
as shown in the figure
If you are going to install a 5-round outlet pipe, please purchase another set of parts for the round outlet
pipes that used at both sides.
Round outlet
pipe
Sketch for installing
5 round outlet pipes
（ Knock off the covers
at both sides of holes
）
Unpack package
Indoor unit
(Joint for gas
and liquid pipes)
Figure 1-1-13
