SiK401004_A
MAINTENANCE 110
4. DISASSEMBLY AND ASSEMBLY PROCEDURE
OF MAIN PARTS
4.1 Outdoor Unit
R(Y)24PEV1K; R(Y)30PEV1K; R(Y)36PEV1K; R(Y)42PEV1K; R(Y)48TPEV1K

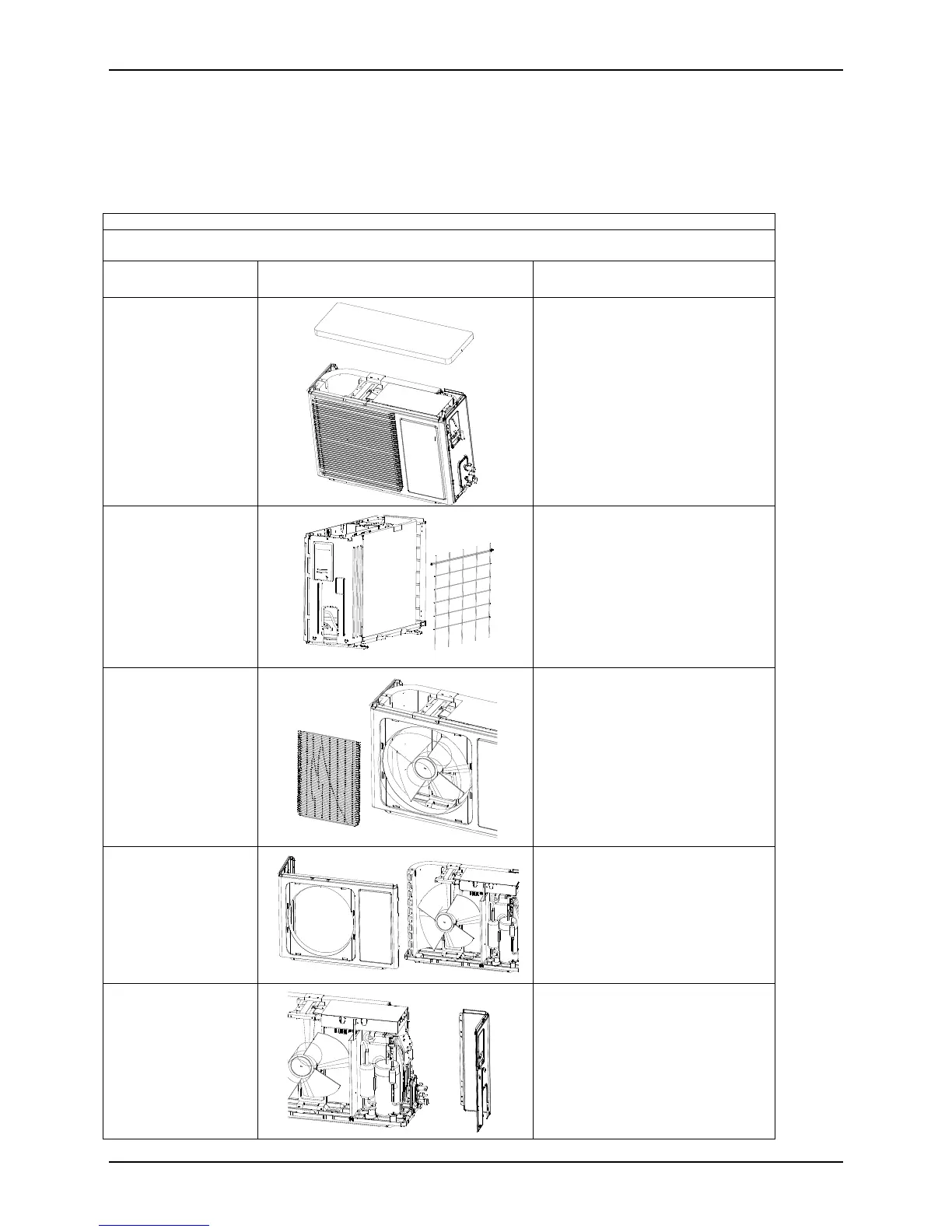

Disassembly and Assembly of external casing
Remark : Make sure that the power supply is cut off before disassemble of the external casing.
Step Illustration
Handling Instruction
1.Disassembly of the
top cover
●Unscrew retaining srcews on top
cover
●Remove it from the unit.
2. Disassembly of
rear grill
● Loose retaining screw on the rear
grill with screwdriver.
●Remove rear grill from the unit.
3. Disassembly of front
grill
●Disassemble the screws of the front
grill with screwdriver
● Disassemble and remove the front
grill from the panel (external casing).
4. Disassembly of panel
(external casing)
●Disassemble the retaining screws on
the panel (external casing);
●Remove the panel (external casing)
from the unit.
●Some models (R(Y)30PEV1K;
R(Y)36PEV1K; R(Y)42PEV1K;
R(Y)48TPEV1K)require disassembling
the front panel outside the external
casing first before removing it.
5. Disassembly of right
(back) panel
●Disassemble the screws on the right
(back) panel with screwdriver.
●Remove the right (back) panel from
the unit.
To Next Page
