Daikin FF-C - Outdoor Unit

50

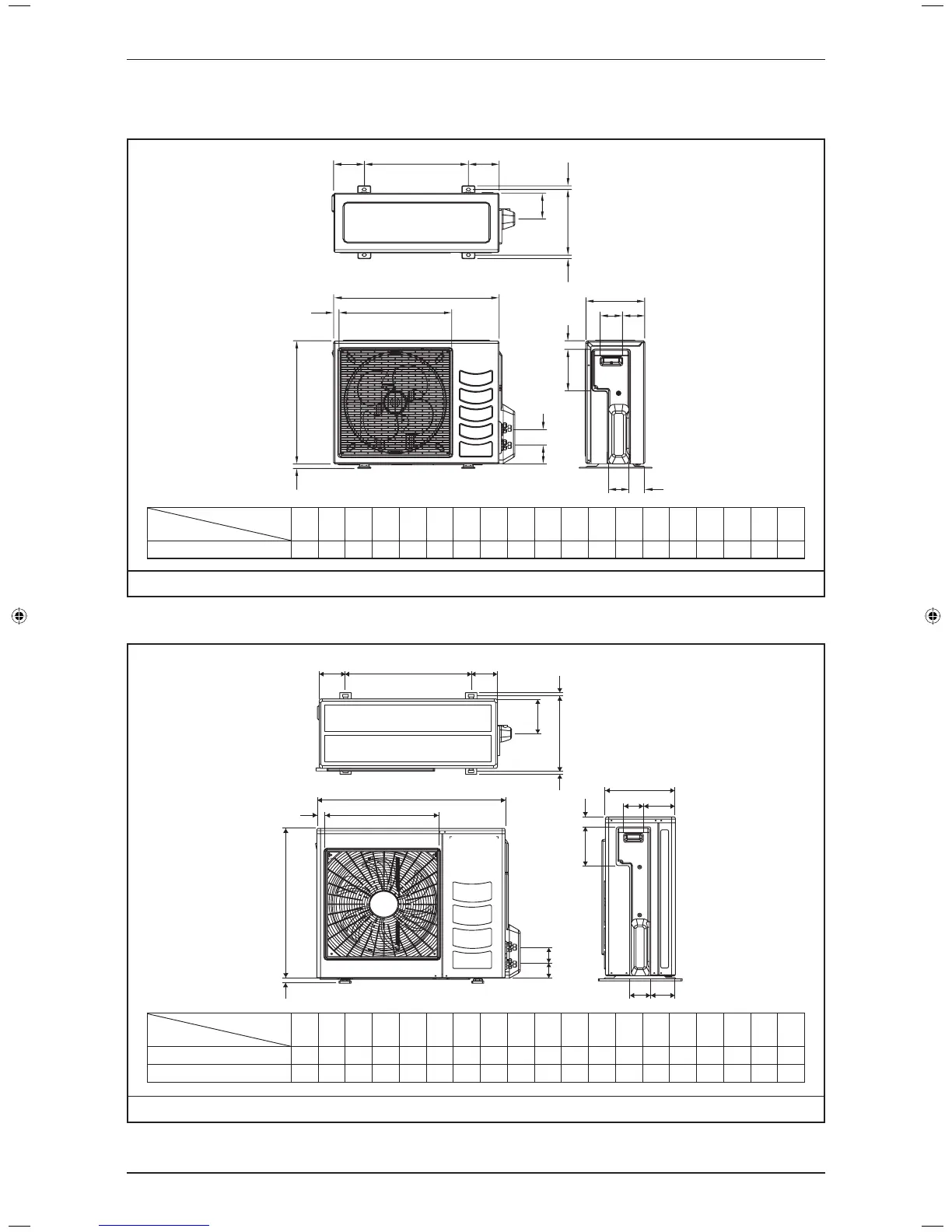

Outline & Dimension
Outdoor Unit
Model: R(Y)10/15CXV1
KLL
A
M
B
I
G
N
O
P
RS
J
C
NQ
H
D
EF
Dimension
Model
ABCDE FGH I JKLMNOPQRS
R(Y)10/15CXV1 700 521 250 478 175 36 95 94 86 68 440 130 110 15 21 19 278 80 65
Note: Dimension in mm
Model: RY18CXV1 / R(Y)20/25/28CXV1
N
L
KL
QN
M
A
D
O
BP
RS
C
HG
E
IJ
F
Dimension
Model
ABCDE FGH I JKLMNOPQRS
RY18CXV1 / R(Y)20CXV1 855 628 328 520 179 46 93 149 101 113 603 126 164 15 34 23 362 73 75
R(Y)25/28CXV1 855 730 328 520 179 46 93 149 101 113 603 126 164 15 34 23 362 73 75
Note: Dimension in mm
