Daikin FF-C - Refrigerant Circuit Diagrams (C Series)

5
Application Information

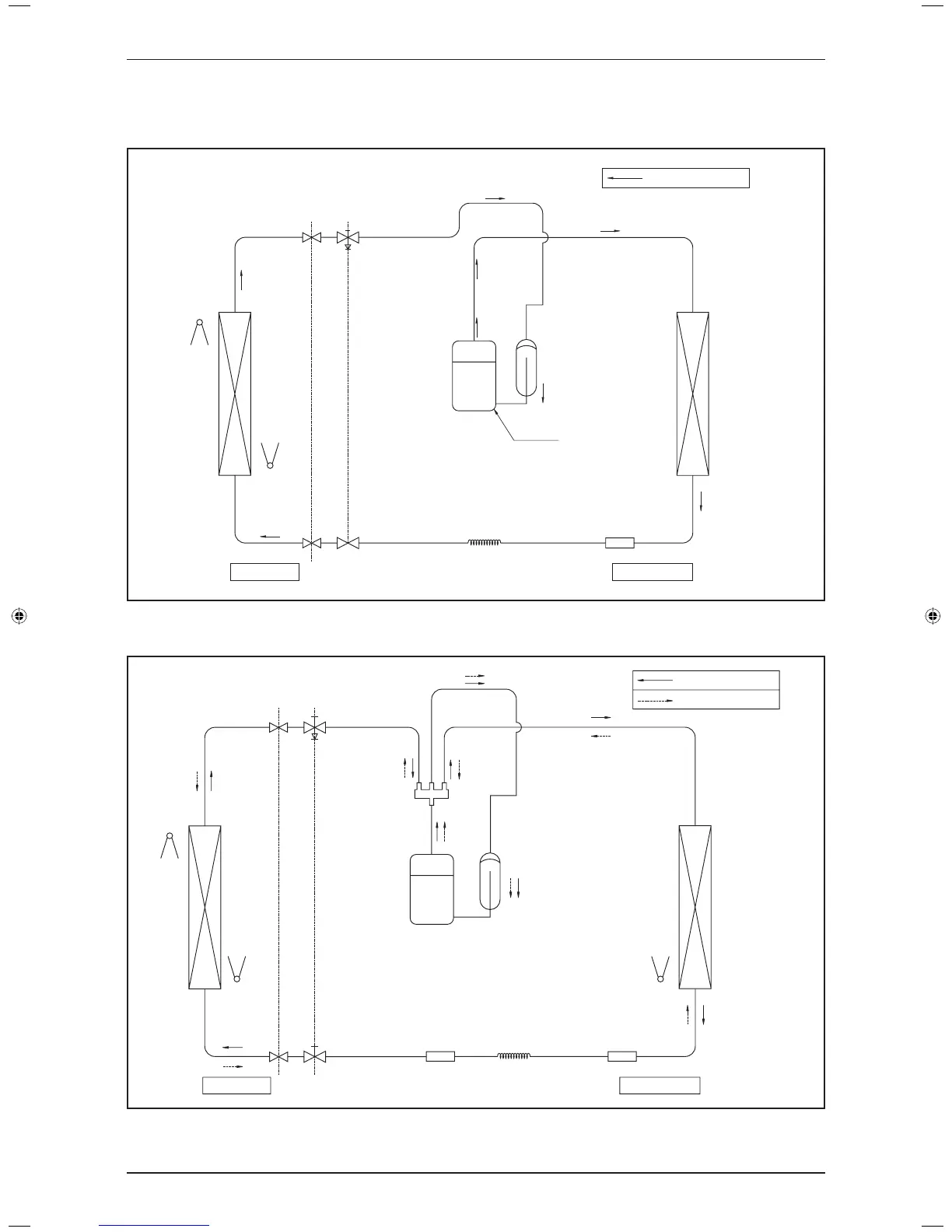

Refrigerant Circuit Diagrams (C Series)
Model: FF10CXV1 – R10CXV1 / FF15CXV1 – R15CXV1 / FF20CXV1 – R20CXV1
COOLING OPERATION
3 WAY
VALVE
DISCHARGE
ACCUMULATOR
COMPRESSOR
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
2 WAY
VALVE
COOLING
CAP TUBE
STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
INDOOR UNIT OUTDOOR UNIT
Model: FFY10CXV1 – RY10CXV1 / FFY20CXV1 – RY18CXV1
COOLING OPERATION
HEATING OPERATION
OUTDOOR UNITINDOOR UNIT
PIPE TEMPERATURE
SENSOR
COOLING & HEATING
CAP TUBE
STRAINER STRAINER
HEAT EXCHANGER
(OUTDOOR UNIT)
RETURN
AIR SENSOR
HEAT EXCHANGER
(INDOOR UNIT)
PIPE TEMPERATURE
SENSOR
3 WAY
VALVE
PIPING
GAS
PIPING
LIQUID
2 WAY
VALVE
DISCHARGE
4 WAY VALVE
ACCUMULATOR
COMPRESSOR
