Si041417EA Electrical Box
Removal Procedure 5

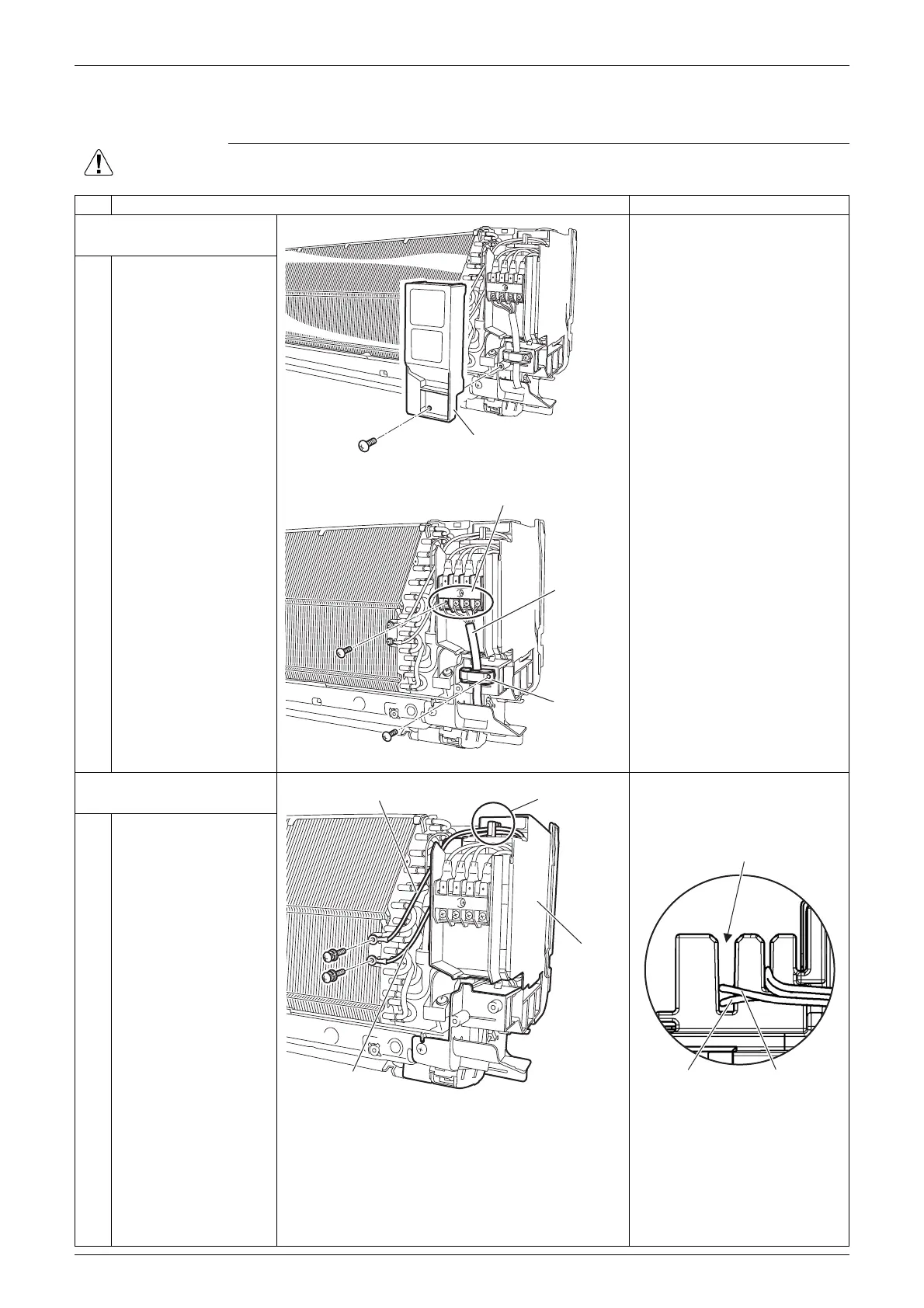

4. Electrical Box
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Disconnect the
connecting wire.

Service cover can be
removed without removing
the front grille.
1 Remove the screw, and
then the service cover.
2
3
Remove the screw, and
then the wire fixture.
Remove the 4 screws
of the terminal board
and disconnect the
connecting wire.
2. Remove the electrical
box.

When reassembling, be sure
to insert the earth/ground
wires in the front slit.
1
2
Remove the 2 screws
and detach the earth/
ground wires.
Release the earth/
ground wires from the
front slit at the top of the
electrical box.
Service cover
(R21011)
Terminal board
Connecting
wire
Wire fixture
(R21012)
Earth/ground wire (yellow/green)
Electrical
box
Front slit
Earth/ground
wire (green)
(R24254)
Front slit
Green Yellow/green
(R24255)
