Daikin FTK09P5VL - Page 9

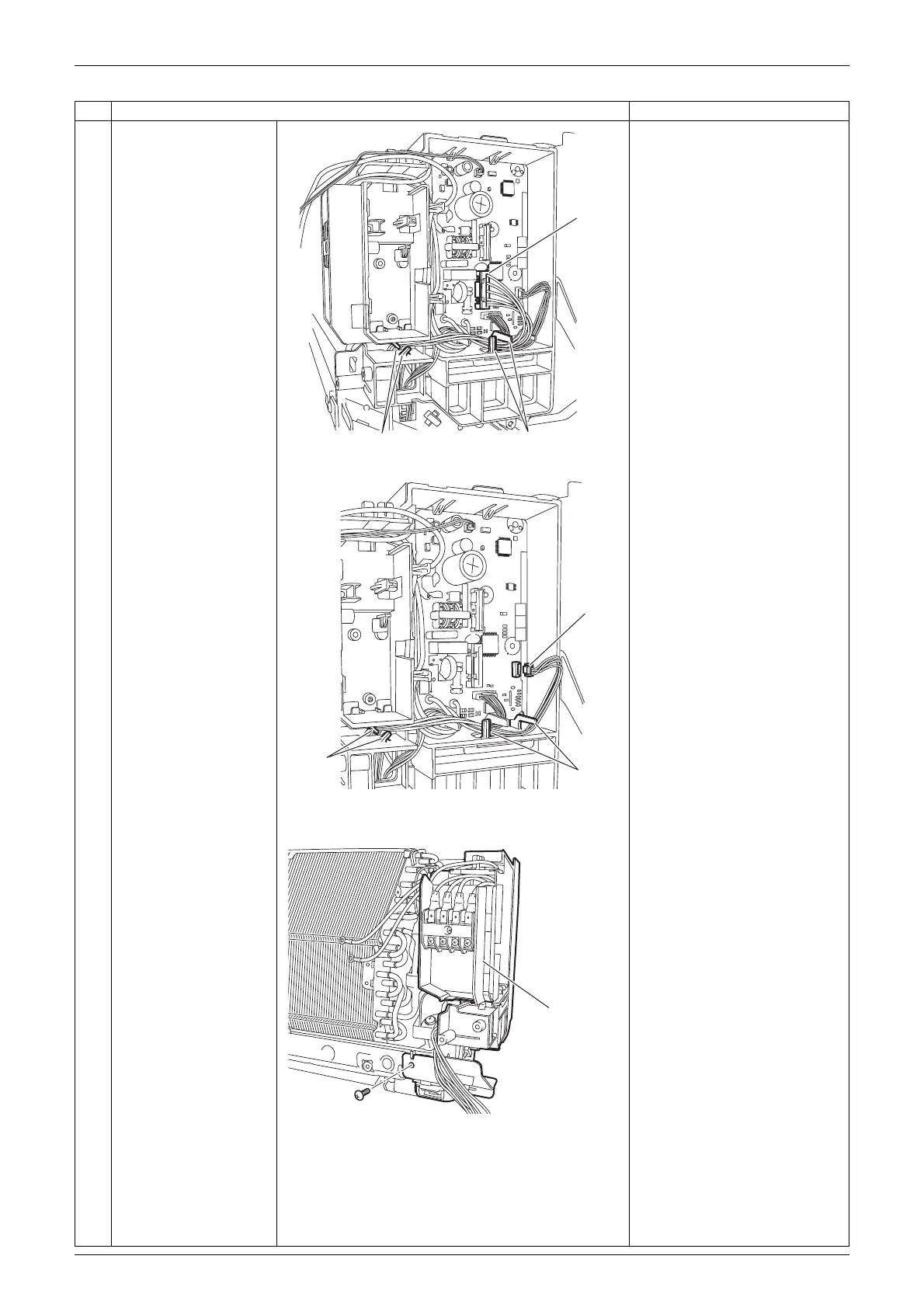

Si041417EA Electrical Box
Removal Procedure 7
6
7
Disconnect the
connector [S200].
Release the harnesses
from the 4 hooks.
[S200]: fan motor
8
9
Disconnect the
connector [S6].
Release the harnesses
from the 4 hooks.
[S6]: swing motor
10 Remove the screw of
the electrical box.
Step Procedure Points
Hook
Hook
[S200]
(R21019)
Hook
Hook
[S6]
(R21020)
Electrical box
(R21021)
