Daikin FTKC50QVM - Front Panel Removal; Release the shaft on both sides; Remove the front panel

Si041652EB Front Panel
Removal Procedure 3
2. Front Panel
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.

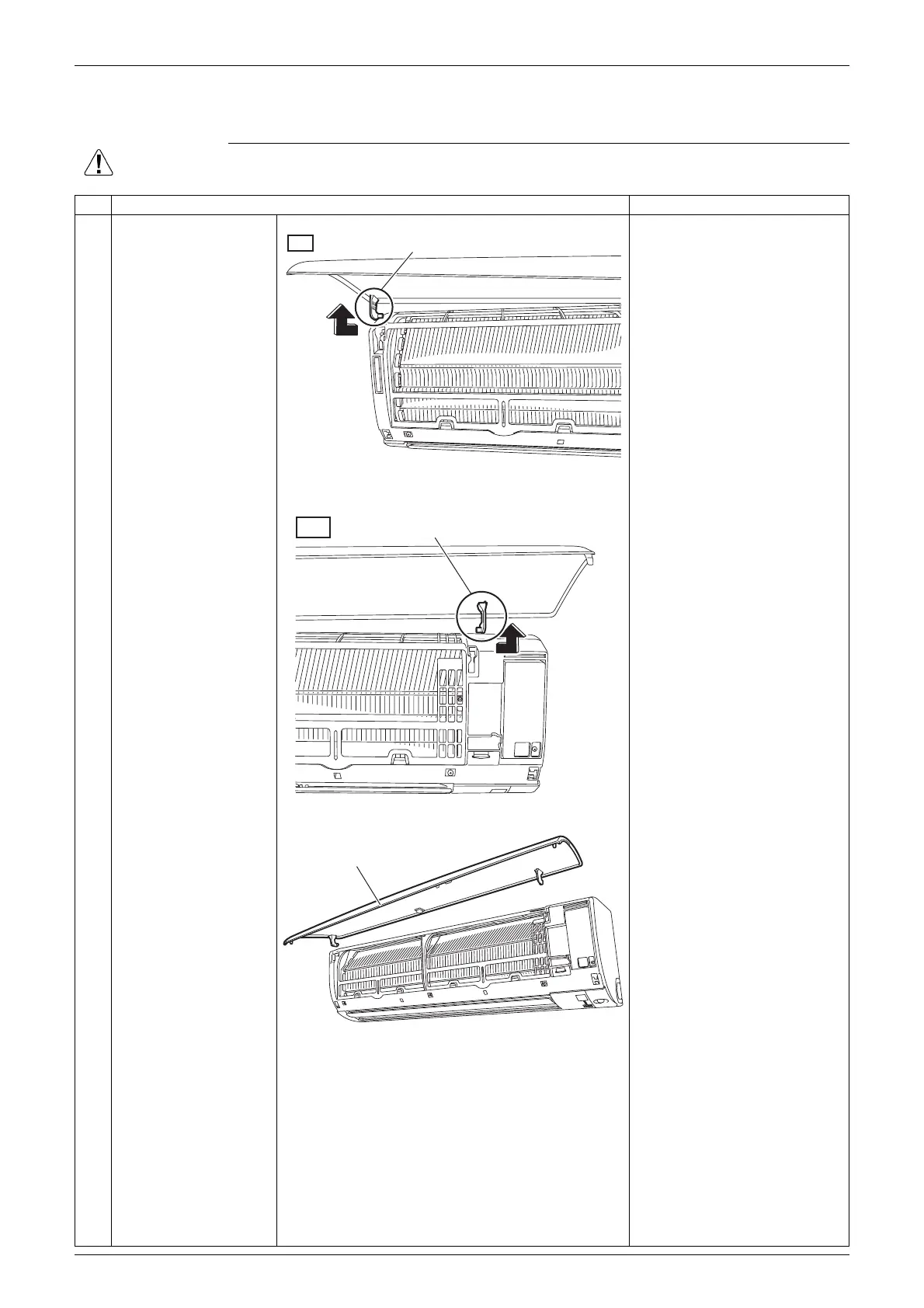

Step Procedure Points
1 Release the shaft on
both sides.

The shaft on each side can
be released easily by
pushing outward.
2 Remove the front panel.

When reassembling the front
panel, fit the right and left
shafts one by one into the
grooves and fully push them
in position.
Left
Shaft
(R23513)
Shaft
Right
(R23514)
Front panel
(R22884)
