Daikin FTKC50QVM - Front Grille

Front Grille Si041652EB
4 Removal Procedure
3. Front Grille
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

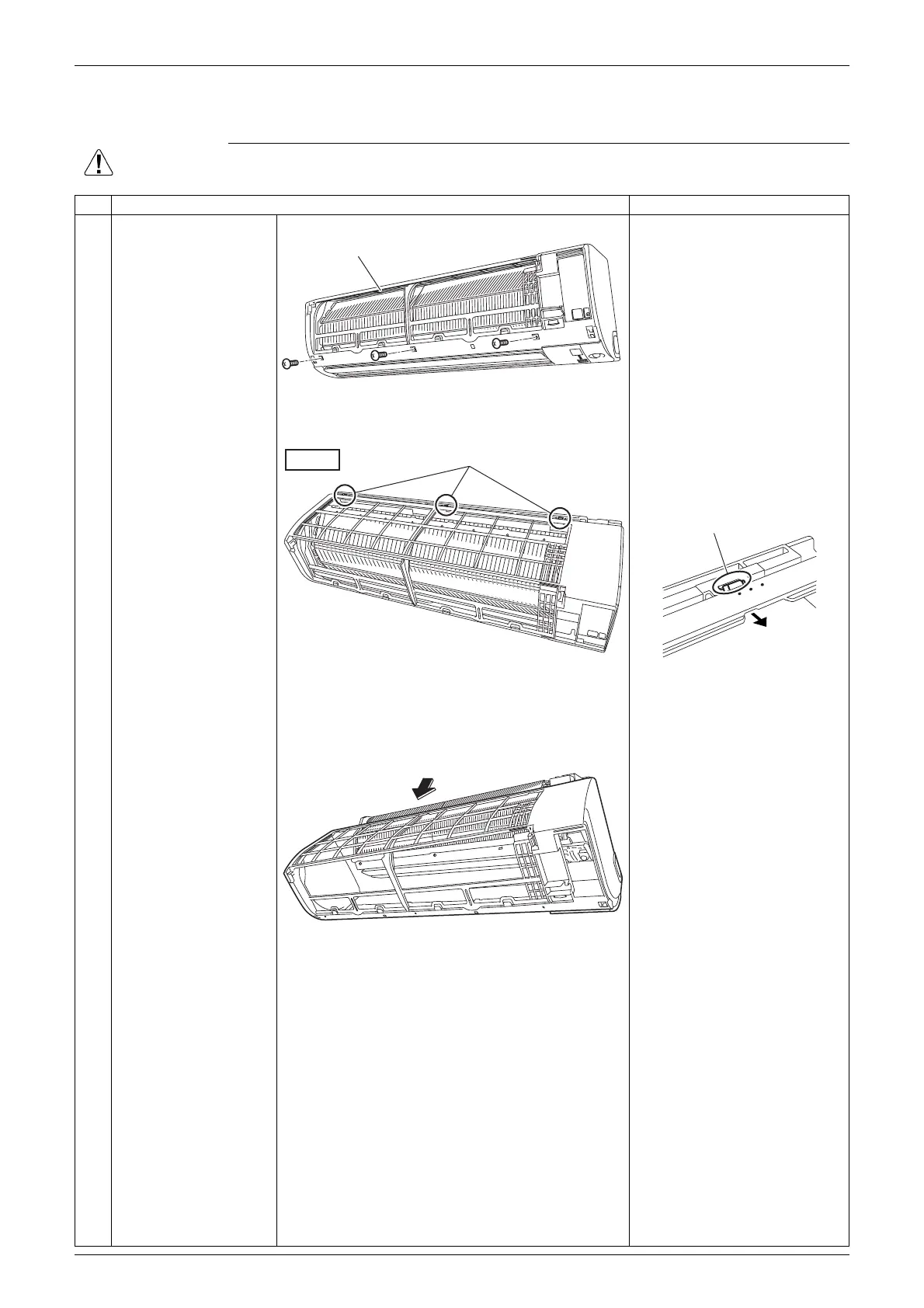

1 Remove the 3 screws
of the front grille.
2 Unfasten the 3 hooks at
the top.

The convex marks (…) on
the front panel indicate the
position of the hooks.

When reassembling, make
sure that all the 3 hooks are
fastened.
3 Pull out the upper part
of the front grille, lift up
the lower part and then
remove the front grille.
Front grille
(R22885)
Hook
Top view
(R22886)
Hook
(R22887)
(R22888)
