Si041652EB PCBs
Removal Procedure 13

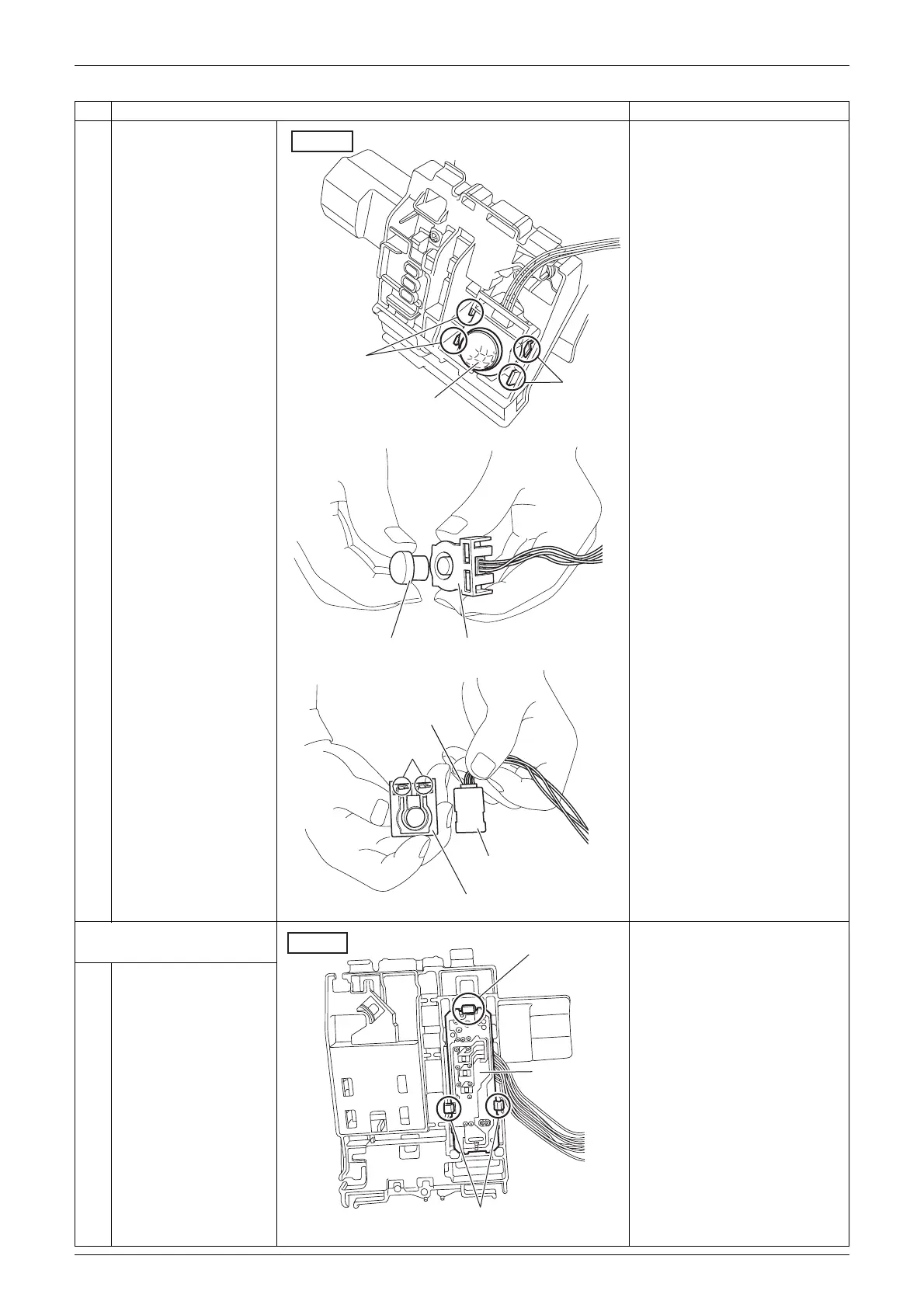

4 Unfasten the 4 hooks
and remove the
INTELLIGENT EYE
sensor ASSY.
5 Remove the motion
sensor from the shield
plate.

When reassembling the
motion sensor, make sure
you hear a clicking noise.
Otherwise, the sensor is not
completely set.
6
7
8
Unfasten the 2 hooks
and remove the shield
plate.
Disconnect the
connector [S36].
Remove the
INTELLIGENT EYE
sensor PCB.
[S36]: control PCB
4. Remove the display/
signal receiver PCB.
1 Unfasten the 3 hooks
on the back and
remove the display/
signal receiver PCB.
Step Procedure Points
INTELLIGENT EYE
sensor ASSY
Hook
Hook
(R24138)
Front view
(R24091)
Shield plateMotion sensor
(R18893)
Shield plate (rear)
Hook
INTELLIGENT EYE
sensor PCB
[S36]
Display/signal
receiver PCB
Hook
Hook
(R23524)
Back view
