Si041652EB Horizontal Blades
Removal Procedure 5
4. Horizontal Blades
Warning

Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points

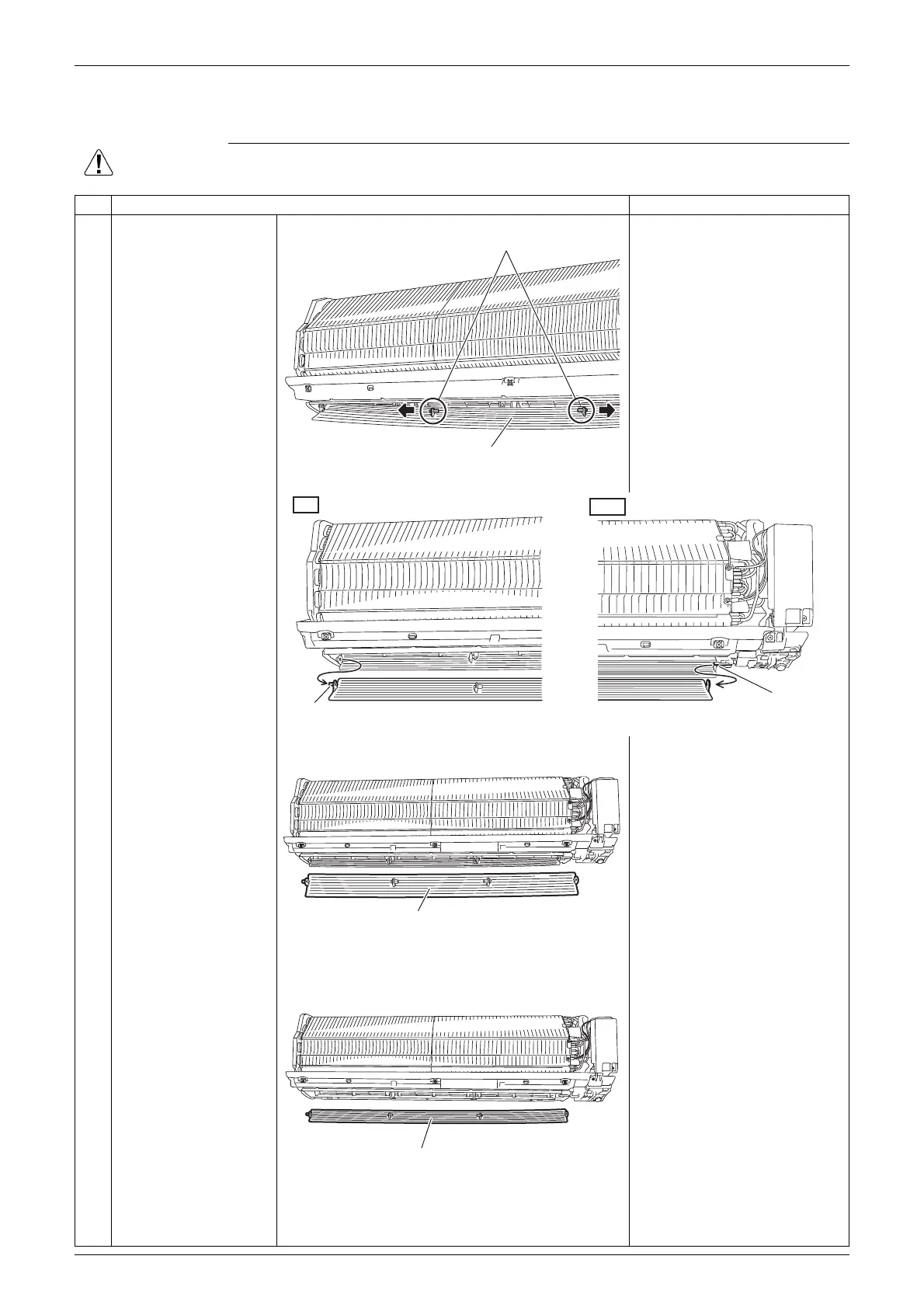

1 Release the center
shafts of the upper
horizontal blade while
bending the blade
slightly.
2
3
Release the left shaft.
Release the right shaft.
4 Remove the upper
horizontal blade.

Installation procedure
1. Fit the right shaft of the
horizontal blade first. Make
sure to rotate the horizontal
blade so the shaft fits in the
correct position.
2. Fit the horizontal blade to the
center and left shafts.

When reassembling, install
the lower horizontal blade
first.
5 Remove the lower
horizontal blade in the
same way.
Center shaft
Upper horizontal blade
(R22889)
Shaft
Left
(R22890)
Shaft
Right
(R23515)
Upper horizontal blade
(R22892)
Lower horizontal blade
(R22893)
