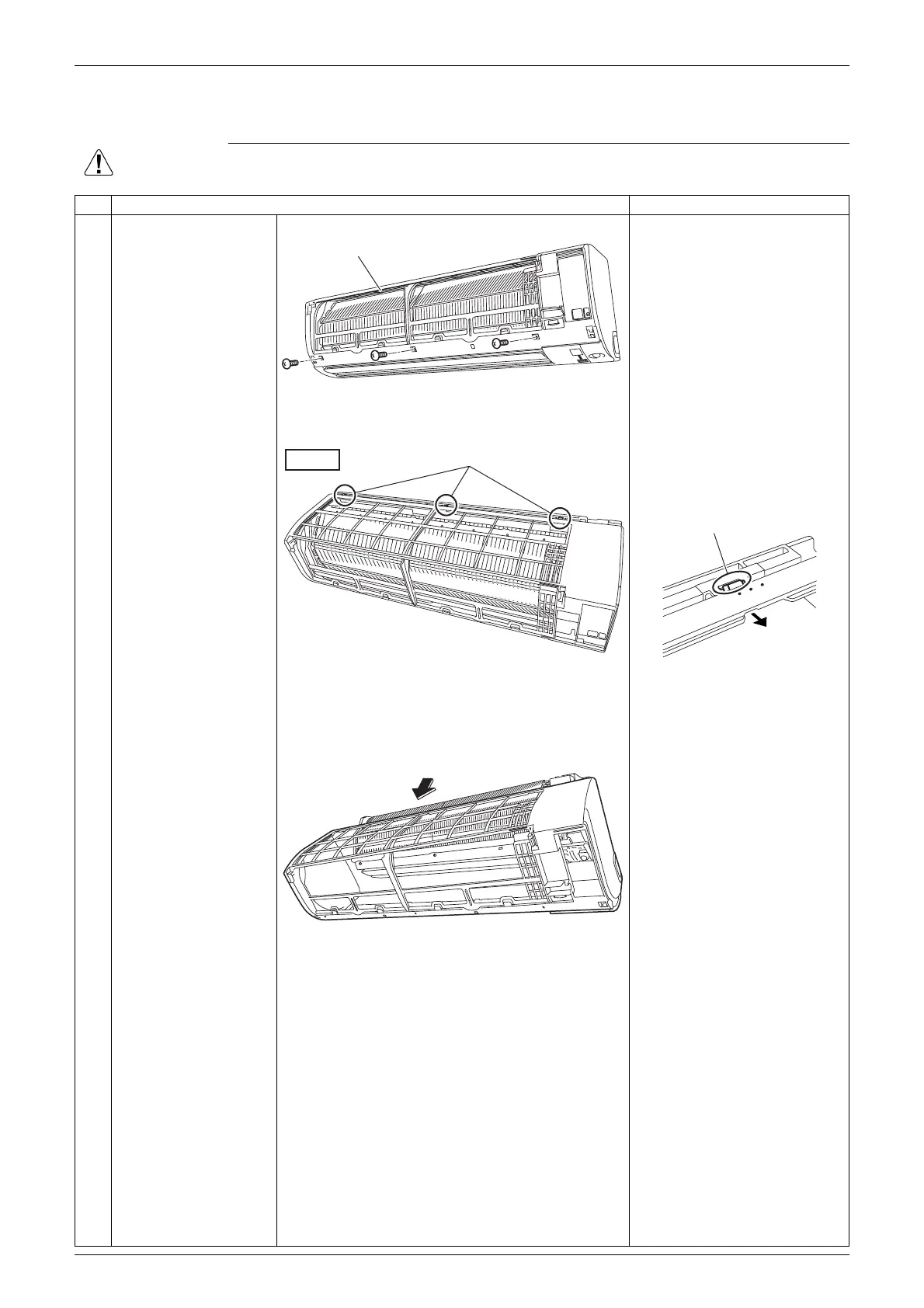

Front Grille Si041652EB
4 Removal Procedure
3. Front Grille
Warning
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the 3 screws
of the front grille.
2 Unfasten the 3 hooks at
the top.
The convex marks (…) on
the front panel indicate the
position of the hooks.
When reassembling, make
sure that all the 3 hooks are
fastened.
3 Pull out the upper part
of the front grille, lift up
the lower part and then
remove the front grille.
Front grille
(R22885)
Hook
Top view
(R22886)
Hook
(R22887)
(R22888)
To Next Page
