Si041652EB Drain Pan / Swing Motors
Removal Procedure 15

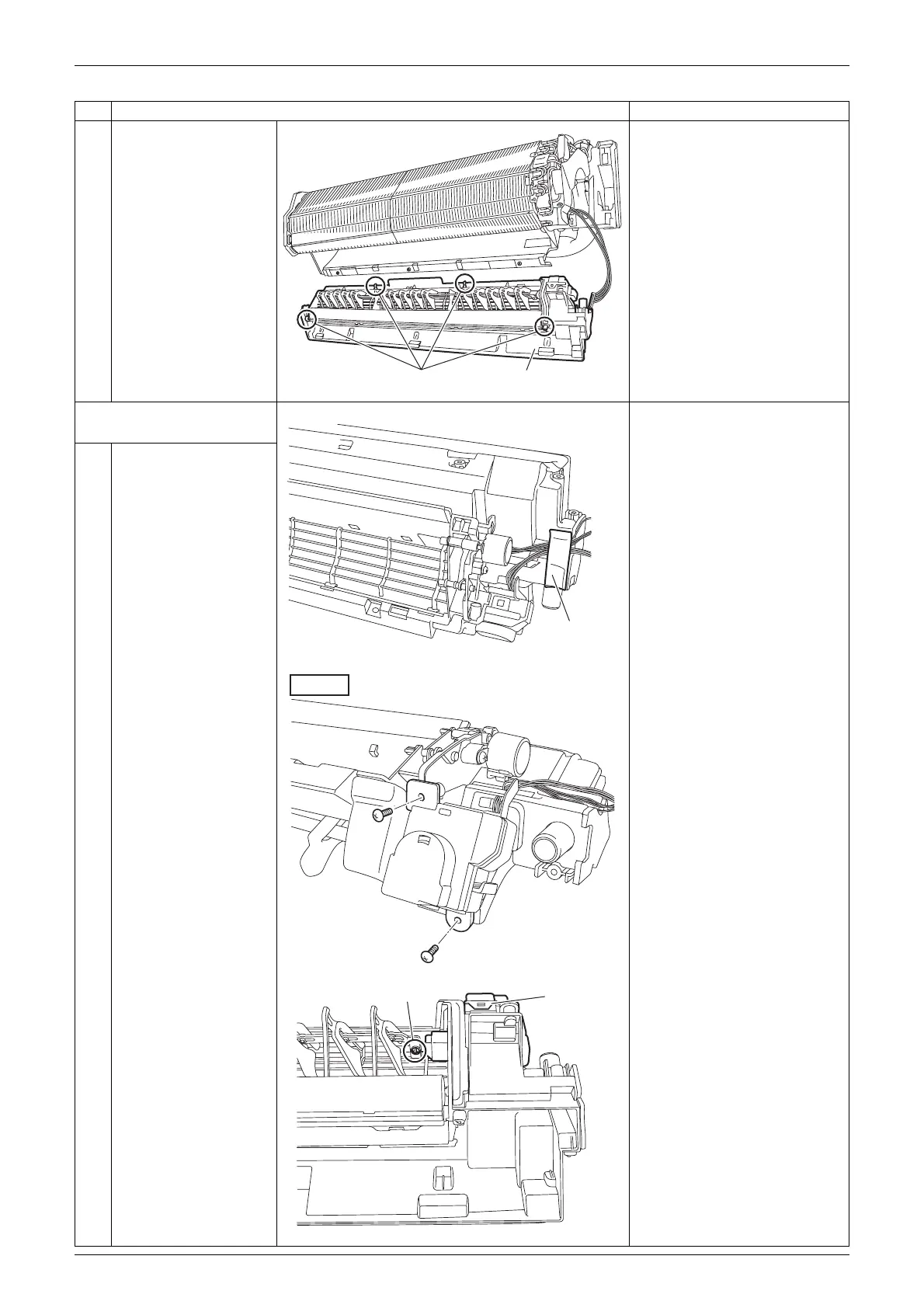

4 Unfasten the 4 hooks
and remove the drain
pan.

When reassembling, make
sure that all the 4 hooks are
securely fastened.
2. Remove the swing motor
for vertical blades.

Some models do not have
the swing motor for vertical
blades.
1 Remove the filament
tape.
2 Remove the 2 screws.
3 Release the shaft of the
vertical blade from the
swing motor shaft with
a flat screwdriver and
remove the swing motor
ASSY.
Step Procedure Points
Drain pan
Hook
(R22922)
Filament tape
(R22923)
(R22924)
Back view
Swing motor
ASSY
Shaft
(R22925)
