Si041652EB Indoor Heat Exchanger
Removal Procedure 21

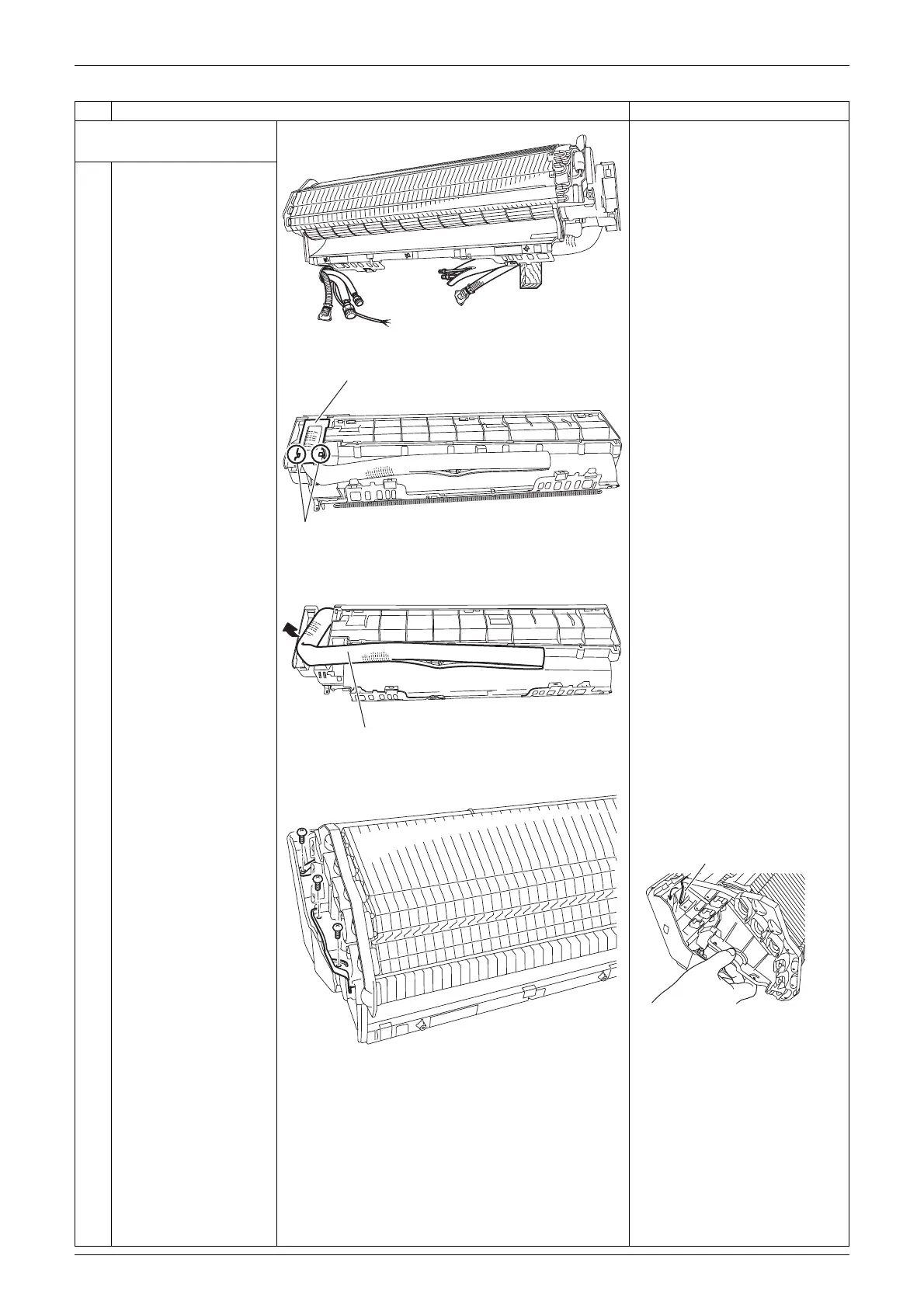

2. Remove the indoor heat
exchanger.
1 Detach the indoor unit
from the installation
plate.
2 Unfasten the 2 hooks
and remove the piping
fixture on the back of
the indoor unit.
3 Slightly pull out the
auxiliary piping.
4 Remove the 3 screws
on the left side and
unfasten the hook on
the rear side.

When reassembling, make
sure that the hook is
securely fastened.
Step Procedure Points
(R22940)
Piping fixture
Hook
(R22941)
Auxiliary piping
(R23526)
(R22943)
Hook
(R22944)
