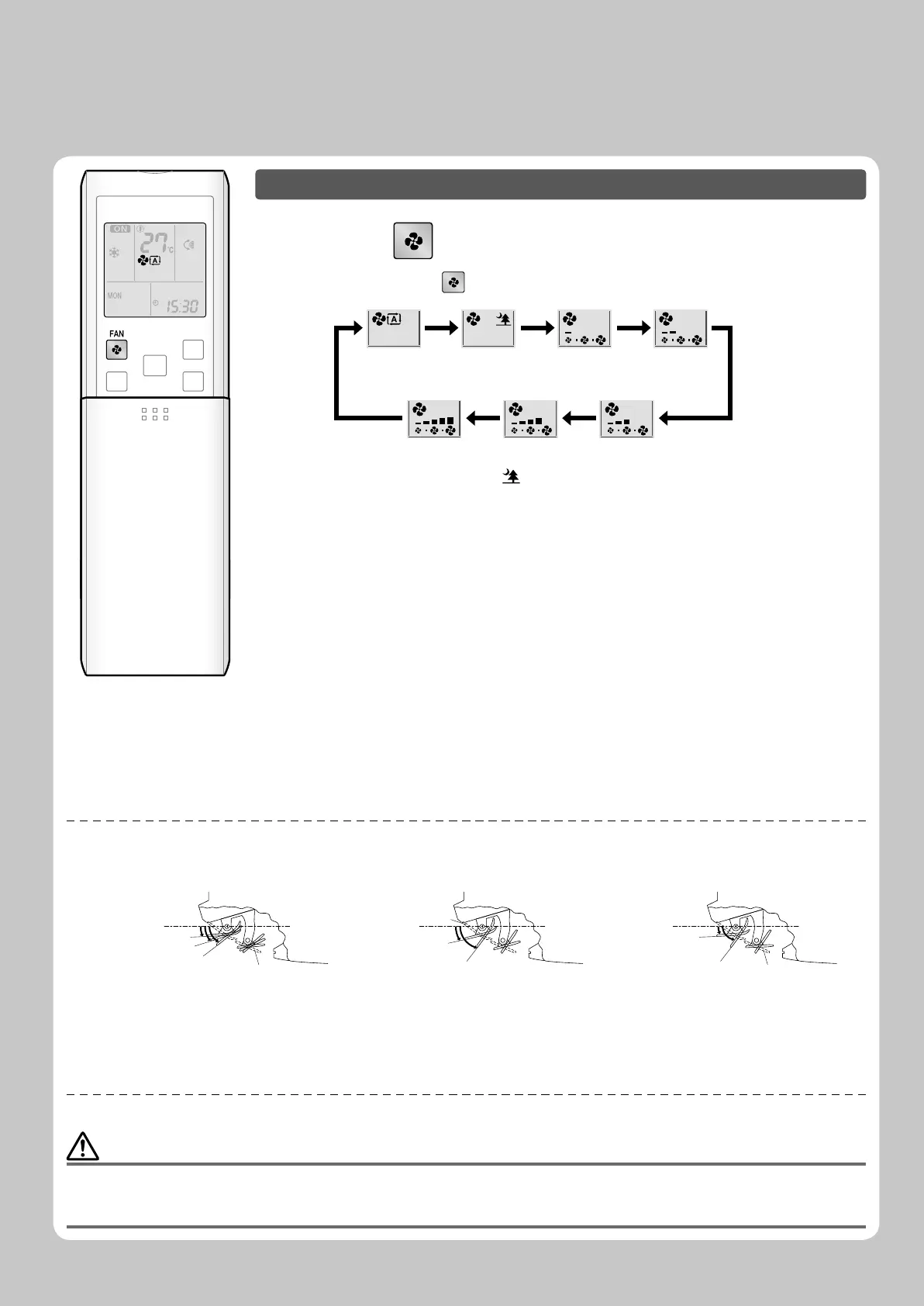

To adjust the airfl ow rate setting
Press .
Each pressing of • advances the airfl ow rate setting in sequence.
Auto Indoor unit quiet Low Middle low
MiddleMiddle highHigh
When the airfl ow is set to “ • ”, indoor unit quiet operation will start and the noise
from the unit will become quieter.
In indoor unit quiet operation, the airfl ow rate is set to a weak level.•
In DRY mode, the airfl ow rate setting is not variable.•
NOTE
Note on the angles of the fl aps
The fl aps swinging range depends on the operation mode. (See the fi gure.)•
COOL and DRY operation HEAT operation FAN operation
Upper limit
COMFORT AIRFLOW
Lower limit
Stop operation
Stop operation
Upper limit
Lower limit and
COMFORT AIRFLOW
Upper limit
Lower limit
Stop operation
5°
10°
40°
15°
55°
5°
55°
Note on 3-D airfl ow
Using 3-D airfl ow circulates cold air, which tends to collected at the bottom of the room, and hot air, which tends to collect near the ceiling, •
throughout the room, preventing areas of cold and hot developing.
Note on airfl ow rate setting
At smaller airfl ow rates, the cooling (heating) effect is also smaller.•
CAUTION
Always use a remote controller to adjust the angles of the fl aps and louvers. If you attempt to move the fl aps and louvers forcibly with hand •
when they are swinging, the mechanism may be broken.
Always use a remote controller to adjust the louvers angles. Inside the air outlet, a fan is rotating at a high speed.•
01_EN_3P266960-1A.indd 1401_EN_3P266960-1A.indd 14 6/1/2011 9:16:18 AM6/1/2011 9:16:18 AM
To Next Page
