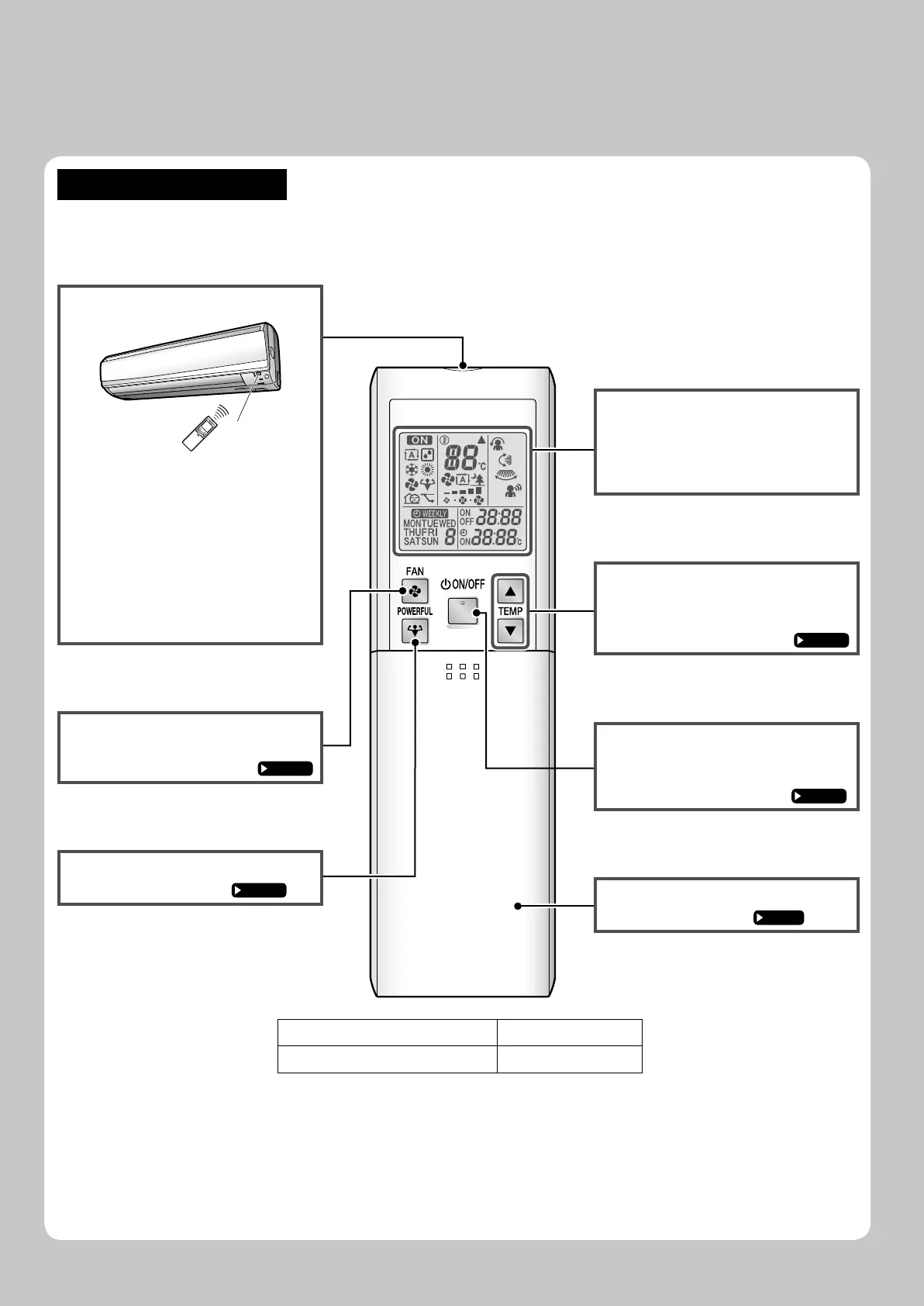

Name of Parts
Remote Controller
Signal transmitter
Receiver
To use the remote controller, aim the •
transmitter at the indoor unit. If there
is anything to block signals between
the unit and the remote controller,
such as a curtain, the unit will not
operate.
Do not drop the remote controller. Do •
not get it wet.
The maximum distance for •
communication is approx. 7m.
FAN setting button
It selects the airfl ow rate setting. •
Page 14
POWERFUL button
POWERFUL operation. •
Page 17
Display (LCD)
It displays the current settings.•
(In this illustration, each section is
shown with all its displays on for the
purpose of explanation.)
TEMPERATURE
adjustment buttons
It changes the temperature setting.•
Page 12
ON/OFF button
Press this button once to start •
operation.
Press once again to stop it.
Page 11
Front cover
Open the front cover. •
Page 8
HEAT PUMP model ARC452A4
COOLING ONLY model ARC452A13
