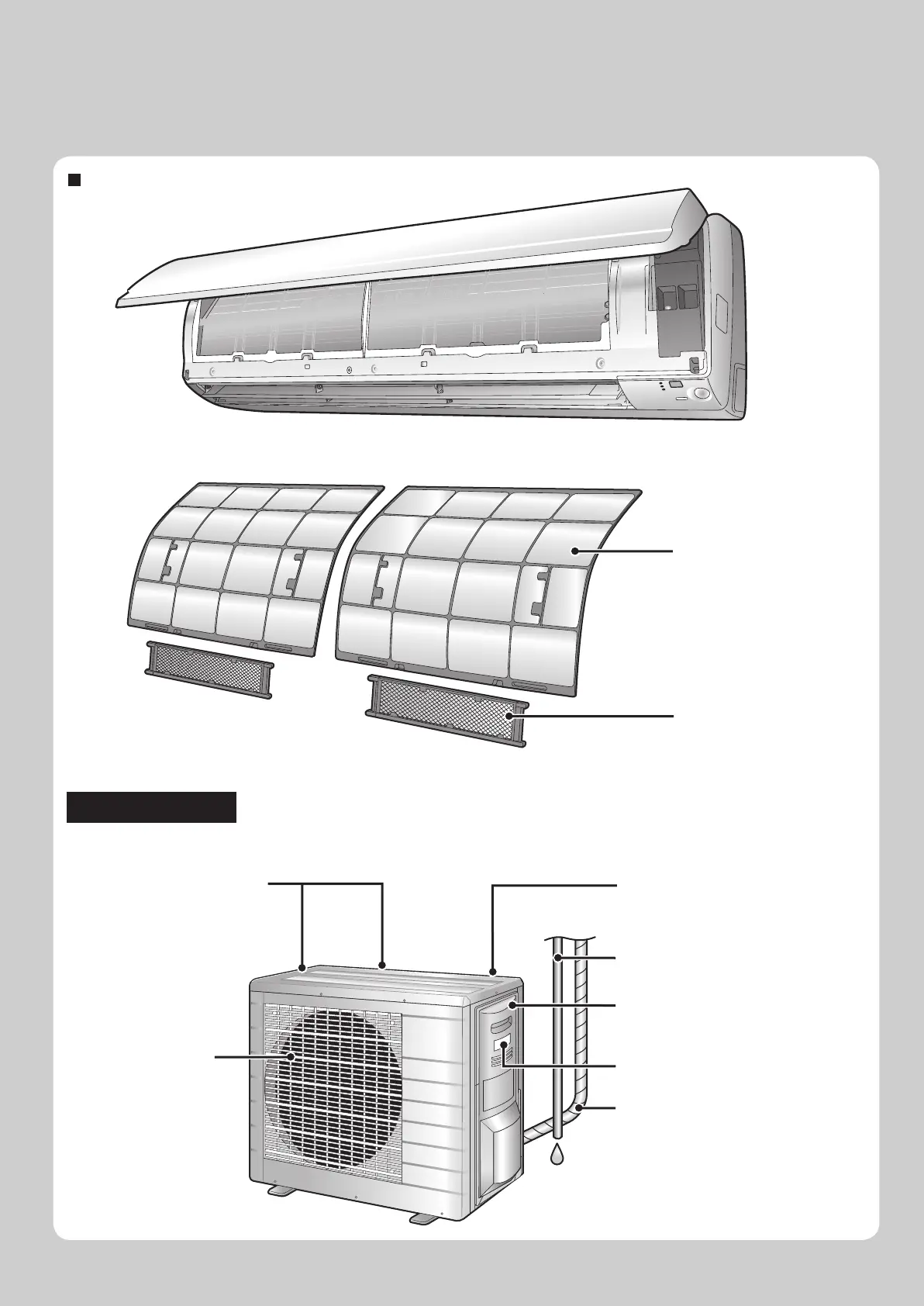

Daikin FTKD42GVM - Removal of Front Grille

Si041143 Removal of Front Grille
Removal Procedure 5
2. Removal of Front Grille
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1
Remove the 3 screws
of the front grille.

Refer to the removal
procedure in a reverse way
when reassembling.
2
Unfasten the 3 hooks
on the top of the front
grille.

The convex marks (...) on
the front panel indicate the
position of the hooks.
3
Pull the upper part of
the front grille out and
lift the lower part up,
and then remove the
front grille.

When reassembling, make
sure that all the 3 hooks are
fastened as they were.
(R11330)
Front grille
Hook
(R13511)
Hook
(R11332)
(R11333)
(R12715)
(R11334)
