Daikin FTKD50GVM User Manual

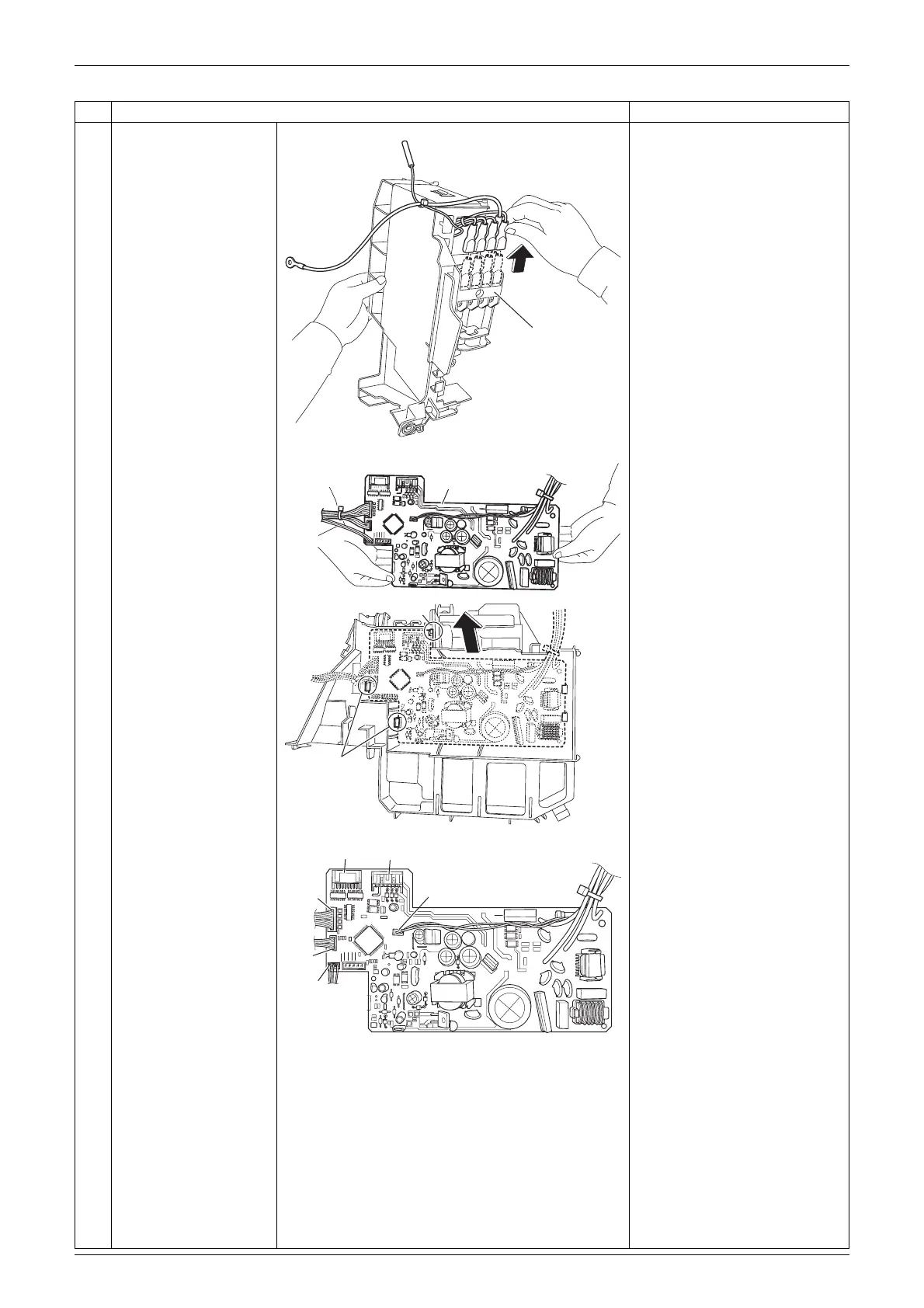

Removal of Electrical Box / PCBs / Swing Motors Si041143
12 Removal Procedure
7
Pull out all the
harnesses from the
terminal board.
8
Unfasten the 3 hooks
and remove the control
PCB.
[S1] : DC fan motor
[S25]: INTELLIGENT EYE
sensor PCB
[S32]: indoor heat exchanger
thermistor
[S41]: swing motors
[S46]: display PCB
[S47]: signal receiver PCB
Step
Procedure Points
(R11355)
Terminal
board
Hook
(R13514)
Control PCB
Hook
(R16424)
[S32]
[S1]
[S41]
[S46]
[S25]
[S47]
