Removal of Electrical Box / PCBs / Swing Motors Si041143
8 Removal Procedure
4. Removal of Electrical Box / PCBs / Swing Motors
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points

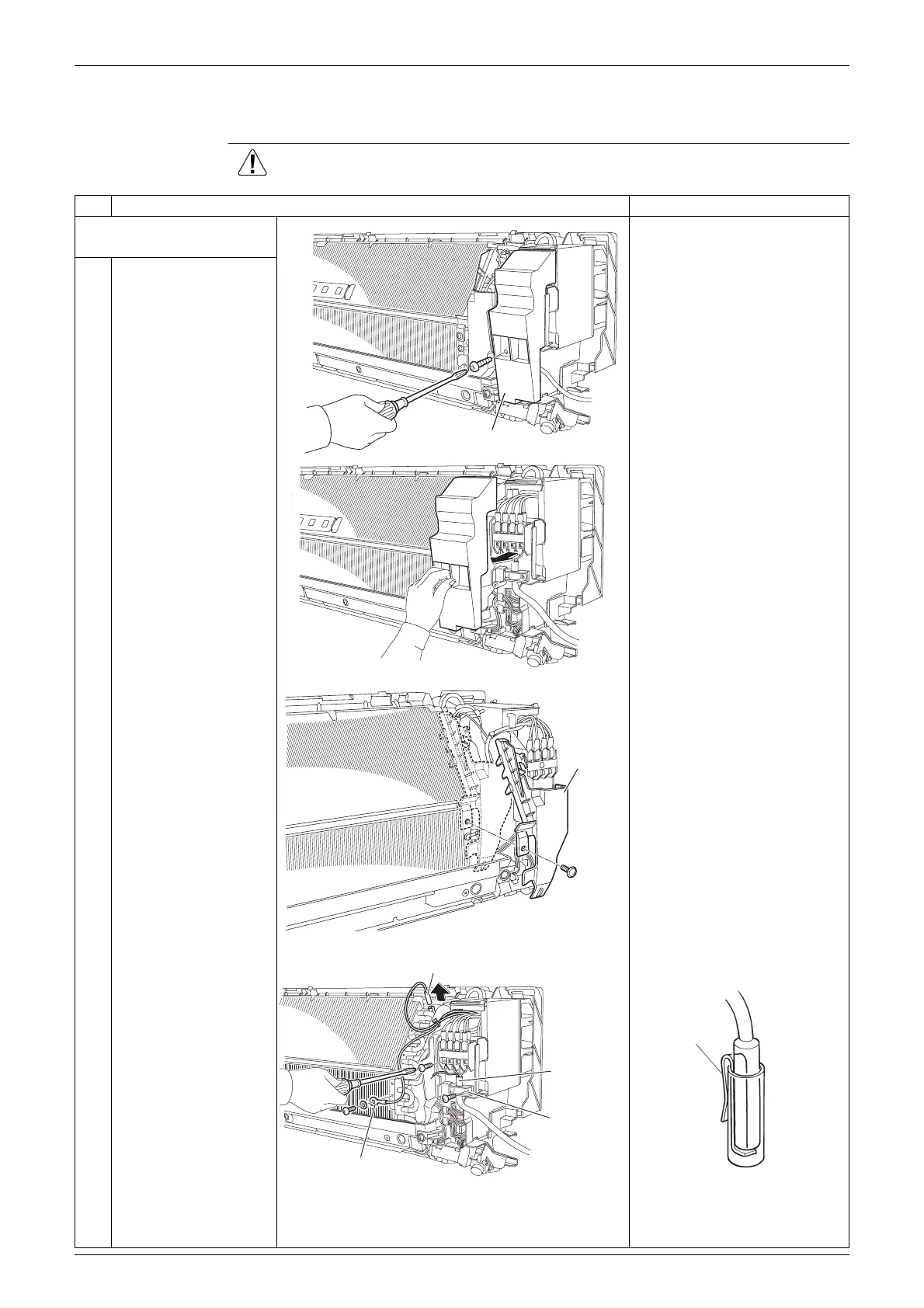

1. Remove the electrical
box.
1
Remove the screw and
remove the service
cover.
2
Remove the screw and
remove the drip proof
plate.
3
Pull out the indoor heat
exchanger thermistor.

Be careful not to lose the clip
of the thermistor.
4
Remove the screw of
the earth wire.
5
Remove the 4 screws
of the connection wires.
6
Remove the screw of
the wire retainer.
Service cover
(R13574)
(R13575)
Drip proof
plate
(R11343)
Indoor heat exchanger thermistor
Earth wire
Connection
wire
Wire
retainer
(R17633)
Clip
(R11268)
