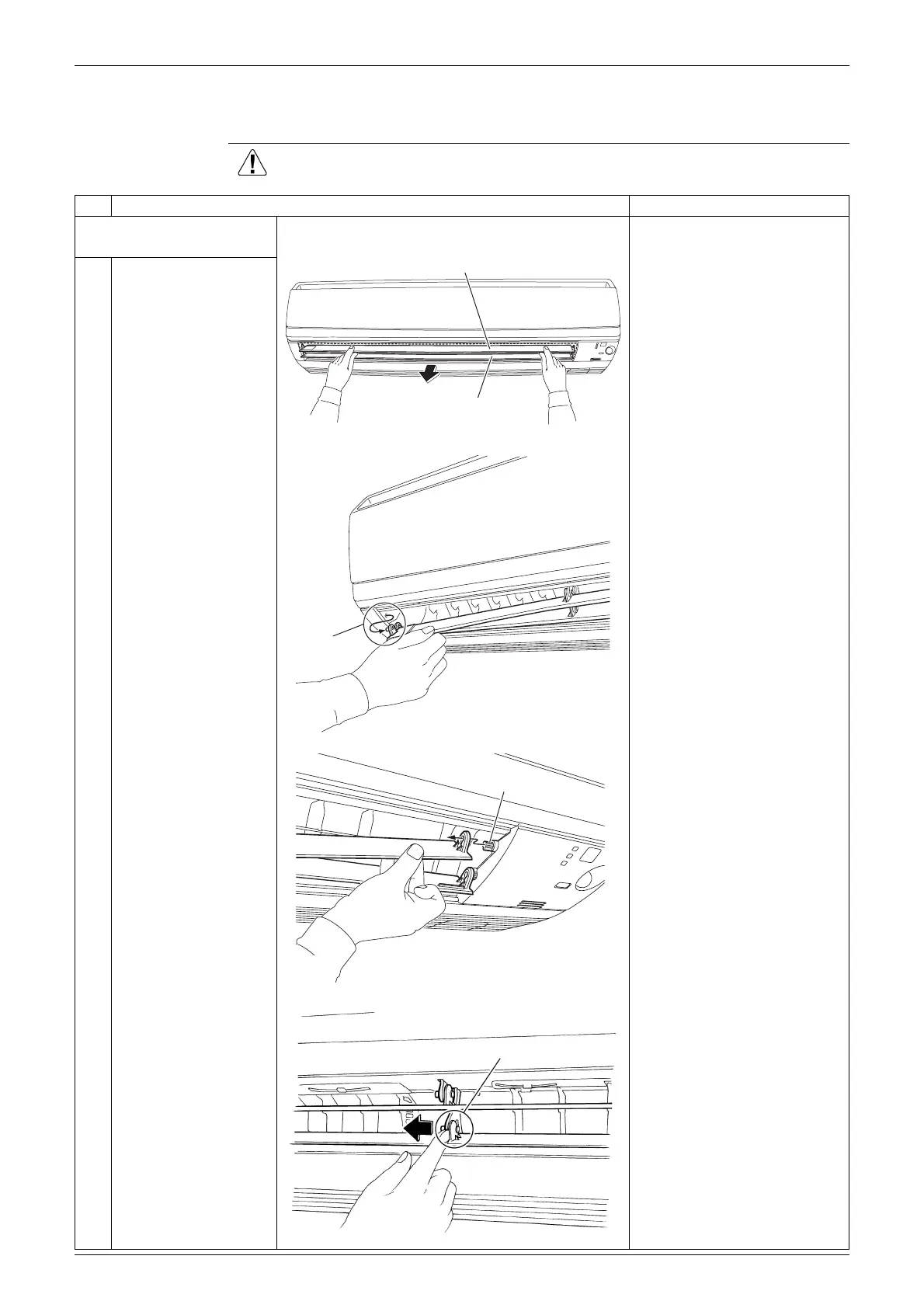

Removal of Horizontal Blades / Vertical Blades Si041143

6 Removal Procedure

3. Removal of Horizontal Blades / Vertical Blades

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step

Procedure Points

1. Remove the horizontal

blades.

Open the horizontal

blades.

Release the left shaft of

the horizontal blade

(large).

Release the right shaft.



Installation procedure

1. Since the key pattern hook is

provided, rotate the blade

and fit it to the right shaft

first.

2. Fit the blade to the center

and left shafts.

Release the center

shaft.

Remove the horizontal

blade (large).

Remove the horizontal

blade (small) in the

same way.

Horizontal blade (small)

Horizontal blade (large)

(R11335)

Left shaft

(R11336)

Right shaft

(R11337)

Center shaft

(R2765)
