Removal of Fan Motor / Fan Rotor Si041143
18 Removal Procedure

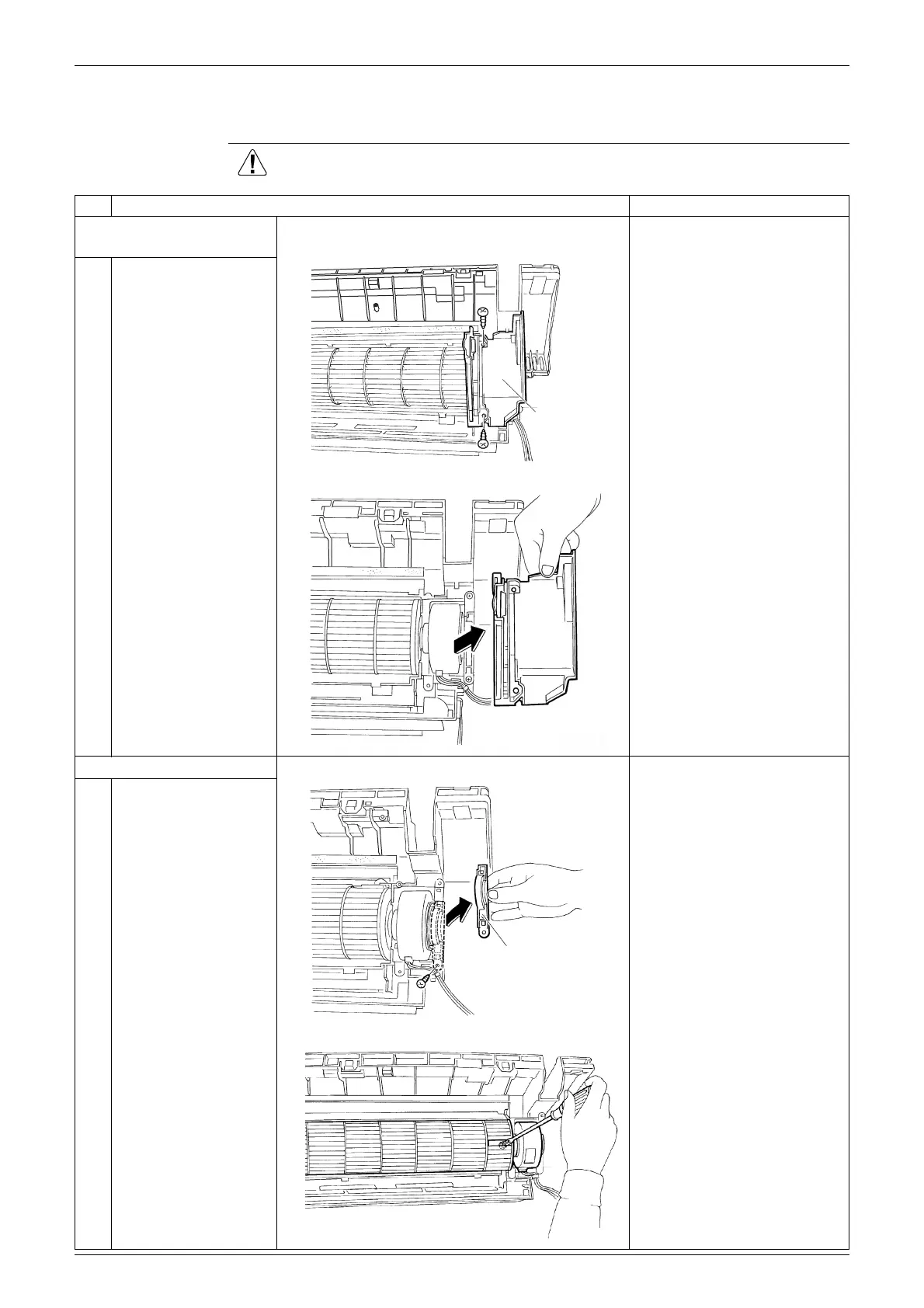

6. Removal of Fan Motor / Fan Rotor
Procedure Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Step
Procedure Points
1. Remove the right side
plate.
1
Remove the 2 screws.

You can remove the fan
rotor without detaching the
right side plate.
2
Lift the right side plate
and remove it.
2. Remove the fan motor.
1
Remove the screw and
remove the fan motor
fixing plate.
2
Loosen the screw of the
fan rotor.
Right side
plate
(R11371)
(R11372)
Fan motor fixing plate
(R11373)
(R11374)
