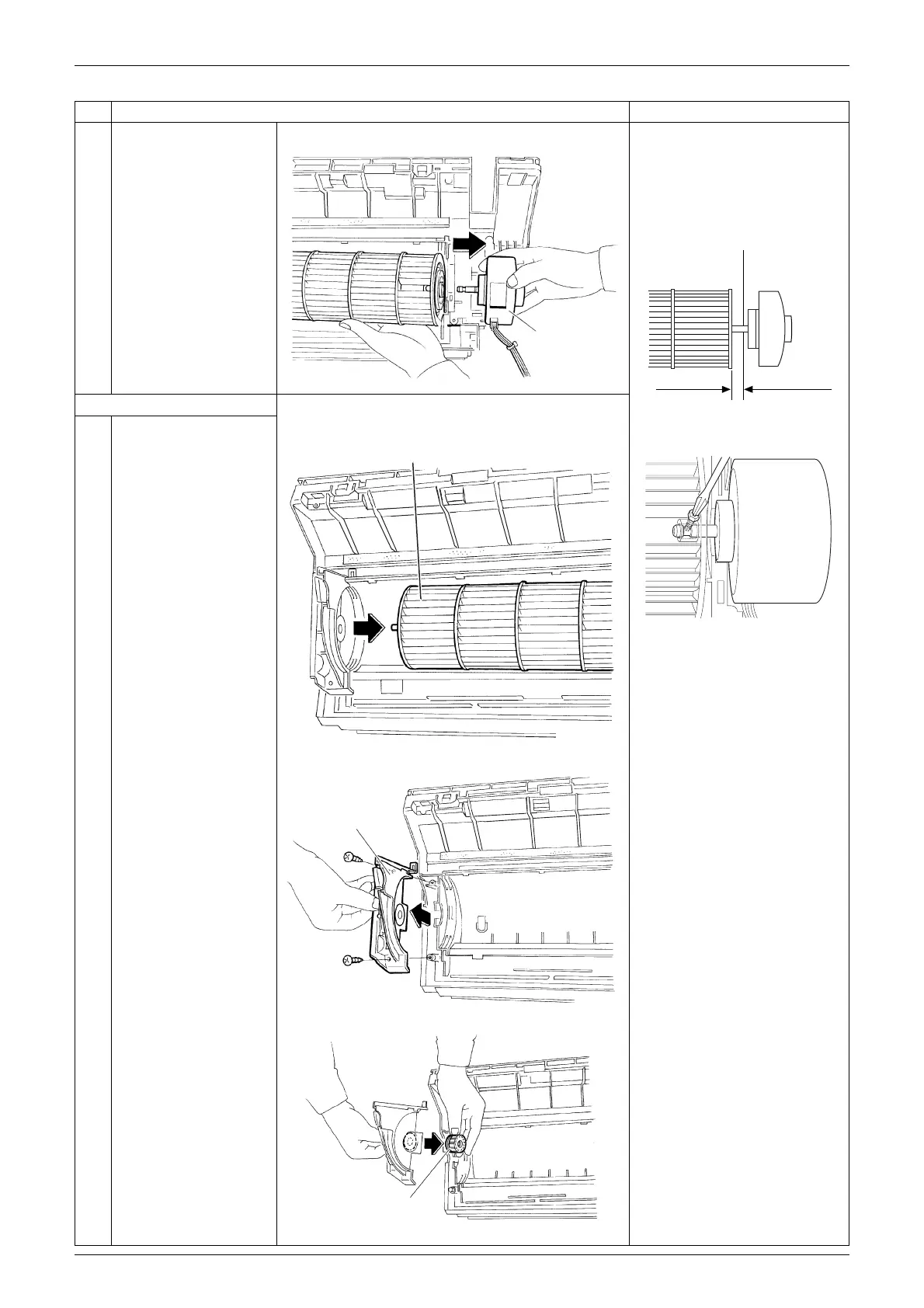

Si041143 Removal of Fan Motor / Fan Rotor
Removal Procedure 19
3
Remove the fan motor.

When reassembling the fan
motor and the fan rotor,
provide as much as 5 mm of
play between the side face
of the rotor and the bottom
frame.
(1) Insert the fan motor with
approx. 5 mm left.
(2) Tighten the screw until it
stops. Then give the screw
one more turn.
(3) Rotate the fan rotor and
confirm the fan motor and
the fan rotor are installed
appropriately.
(4) Tighten the screw
completely if appropriate.
(5) If not appropriate, go back to
(1).
3. Remove the fan rotor.
1
Remove the fan rotor.
2
Remove the 2 screws
and remove the left side
plate.
3
The bearing is made of
rubber. Push it inward
and remove it.
Step
Procedure Points
Fan motor
(R11375)
5 mm
End of rotor
(R2808)
End of
bottom frame
(R9582)
Fan rotor
(R11376)
Left side plate
(R11377)
Bearing
(R11378)
