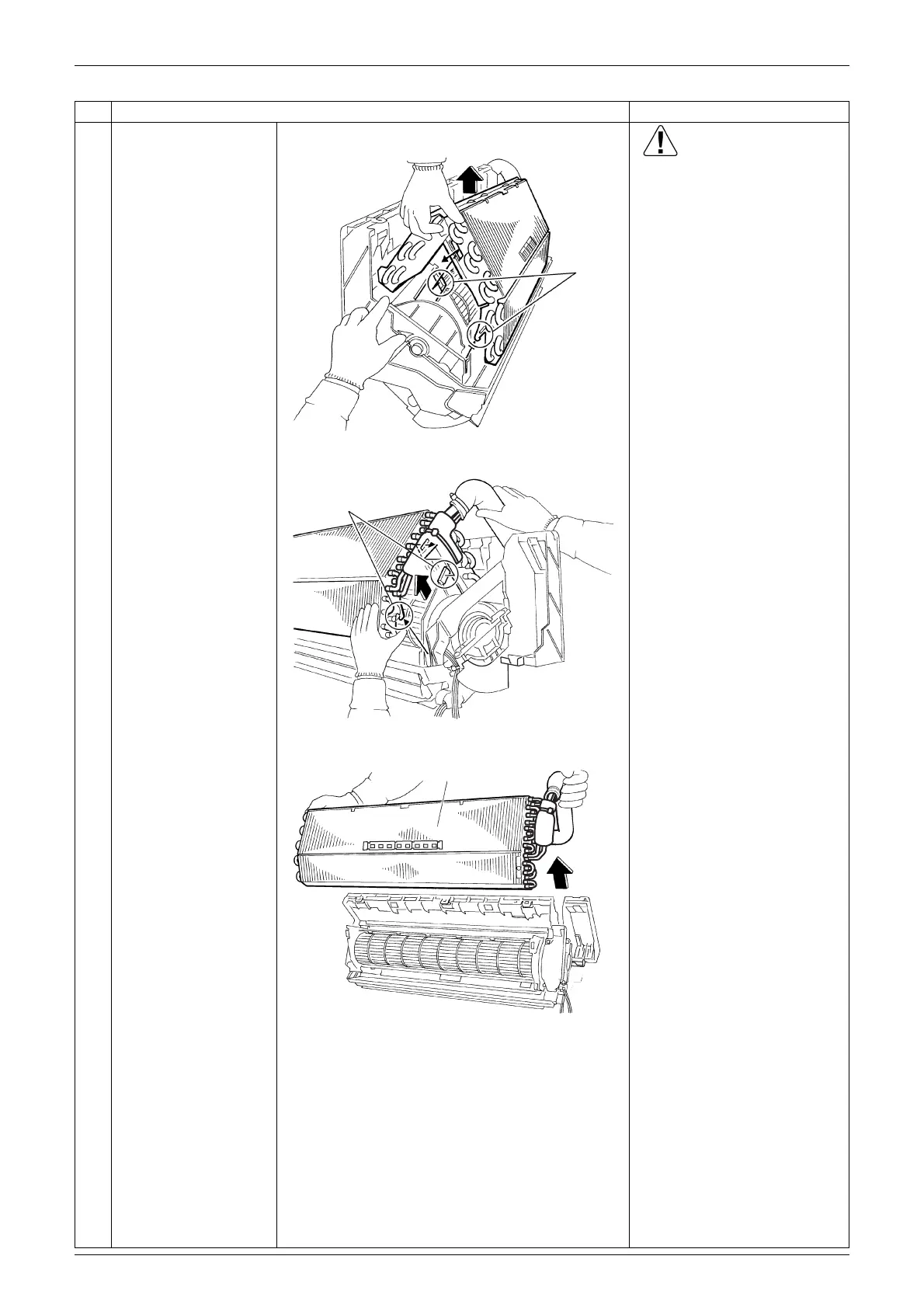

Si041143 Removal of Indoor Heat Exchanger
Removal Procedure 17
4
Unfasten the hooks on
the left side.
Caution
When removing or
reassembling the indoor heat
exchanger, be sure to wear
gloves or wrap the indoor
heat exchanger with cloths.
(You may be injured by the
fins.)
5
Push the hooks on the
right side and unfasten
them.
6
Pull the indoor heat
exchanger to the front
side and unfasten the
hooks completely, and
then lift it.
Step
Procedure Points
Hook
(R13516)
Hook
(R13517)
(R11370)
Indoor heat exchanger
To Next Page
