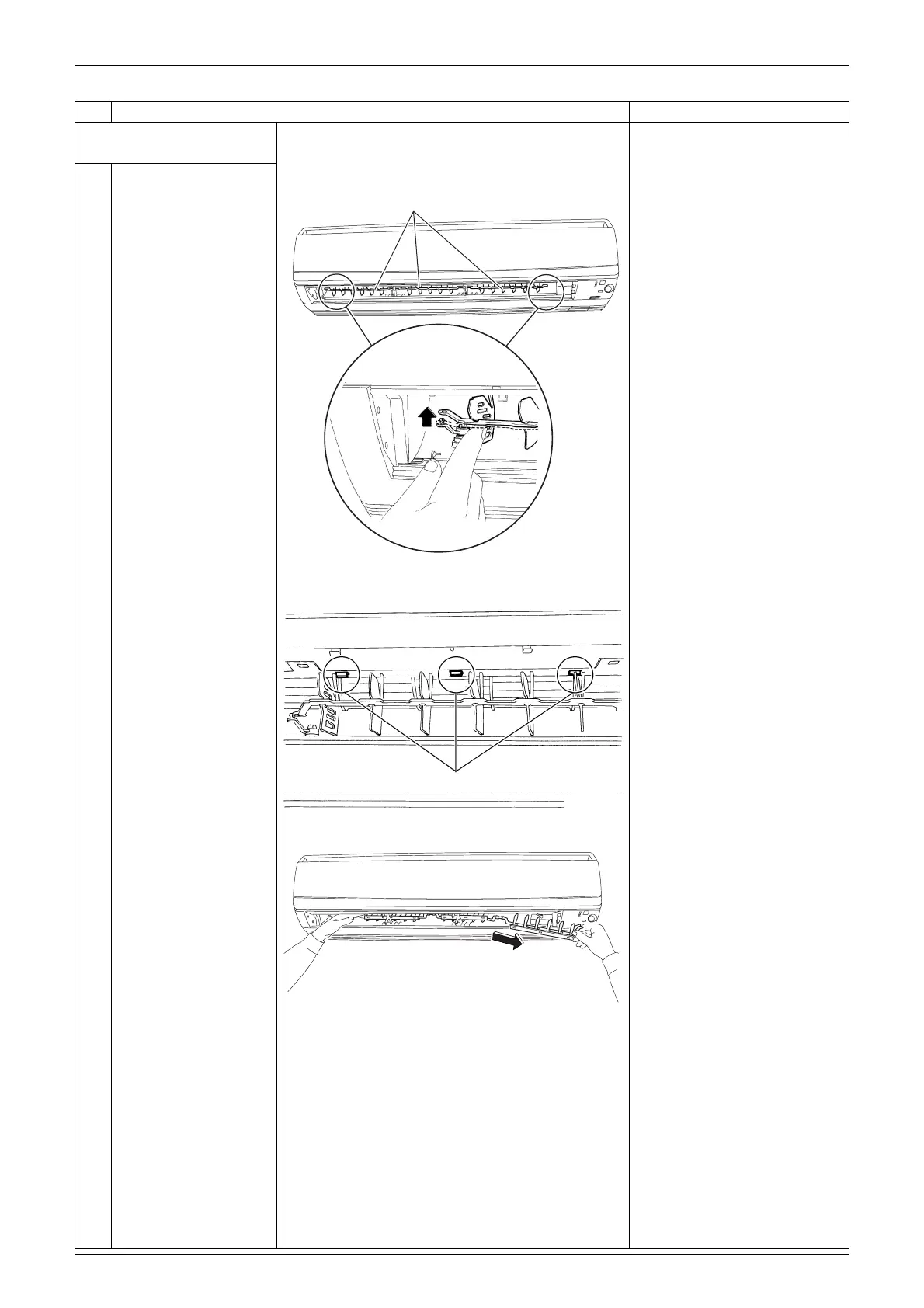

Si041143 Removal of Horizontal Blades / Vertical Blades
Removal Procedure 7
2. Remove the vertical blade
ASSYs.

The unit has 3 vertical blade
ASSYs linked to one another
with the interlock rods.
1
Release the right and
left shafts.
2
Unfasten the 3 hooks
for each vertical blade
ASSY.
3
Pull the vertical blade
ASSYs rightward and
remove them.
Step
Procedure Points
Vertical blade ASSY
(R13512)
Hook
(R13513)
(R11339)
