Si041143 Removal of Electrical Box / PCBs / Swing Motors

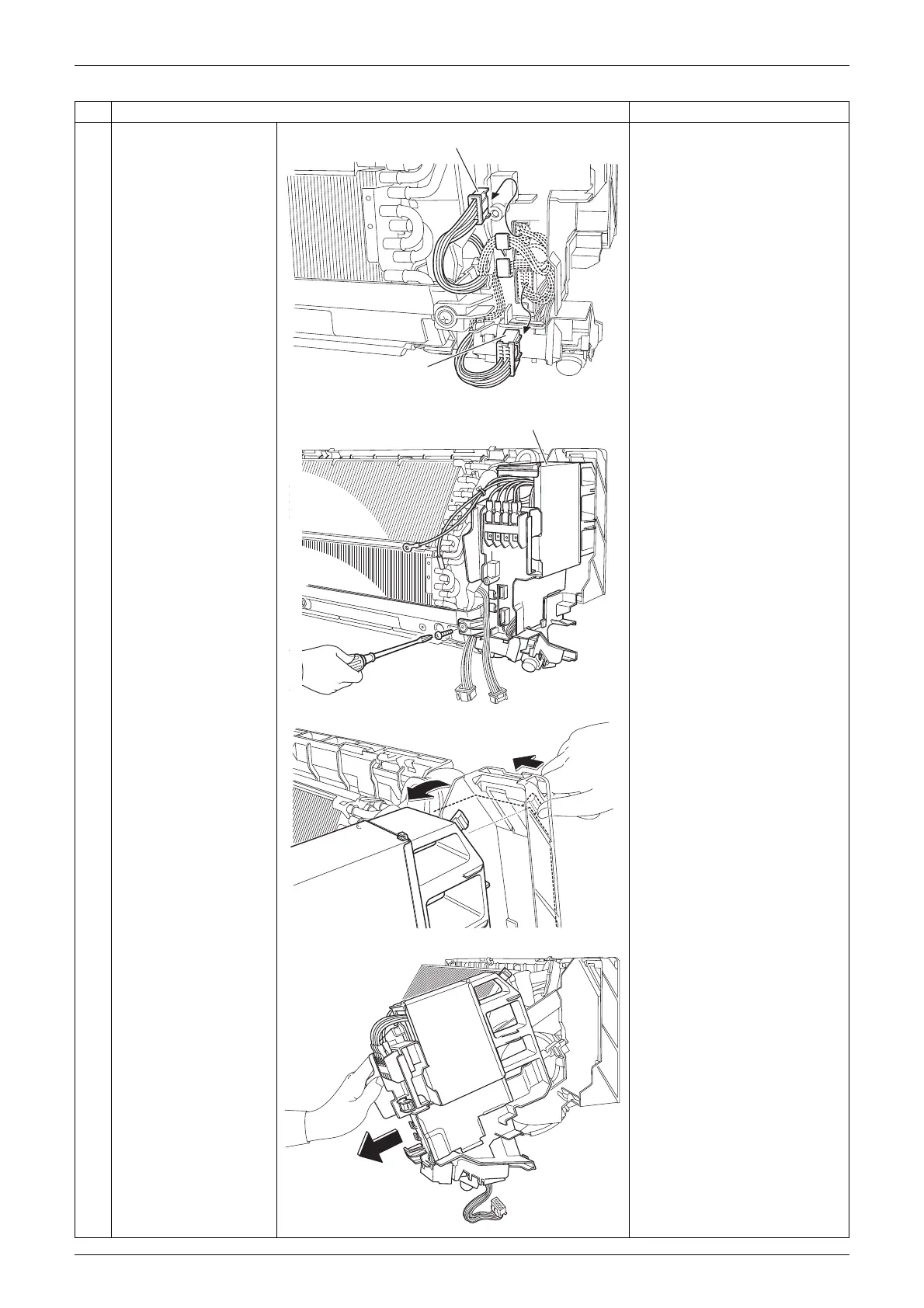

Removal Procedure 9
7
Disconnect the
connectors for the fan
motor [S1] and for the
swing motors [S41].
8
Remove the screw of
the electrical box.
9
Dislocate the electrical
box to the left and
unfasten the back hook.

The electrical box has a
hook on its back.
10
Pull the electrical box
out.

Catch the back hook of the
electrical box when
reassembling.
Step
Procedure Points
[S41]
[S1]
(R13576)
Electrical box
(R13577)
(R11347)
(R11348)
