Removal of Electrical Box / PCBs / Swing Motors Si041143
10 Removal Procedure

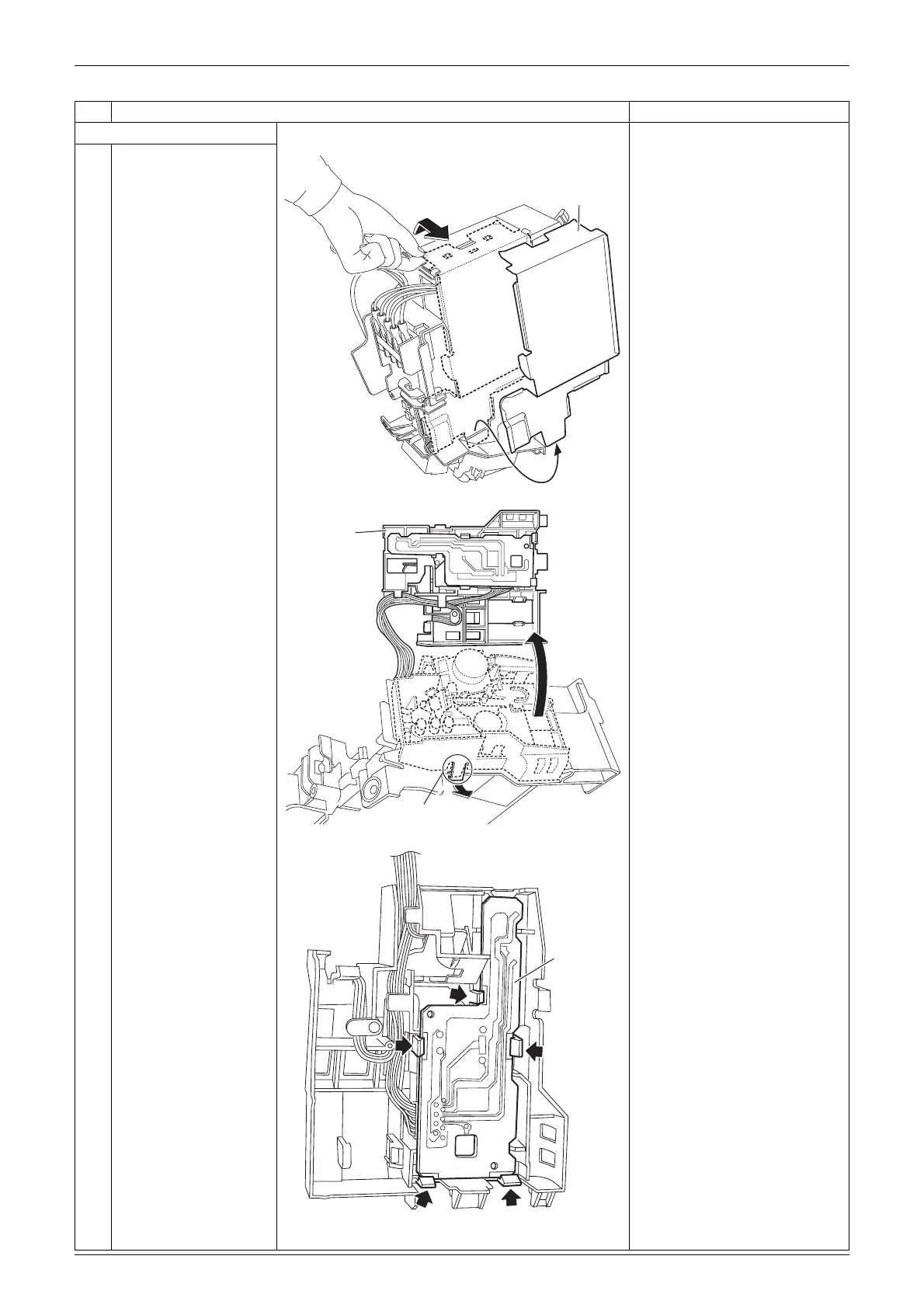

2. Remove the PCBs.
1
Lift the shield plate and
unfasten the hook.
2
Remove the signal
receiver unit by
unfastening the hook.

Unfasten the hook on the
upper side.
3
Unfasten the 5 hooks to
remove the display
PCB.
Step
Procedure Points
Shield plate
(R11349)
Hook
Signal
receiver
unit
(R13578)
Display
PCB
(R11351)
