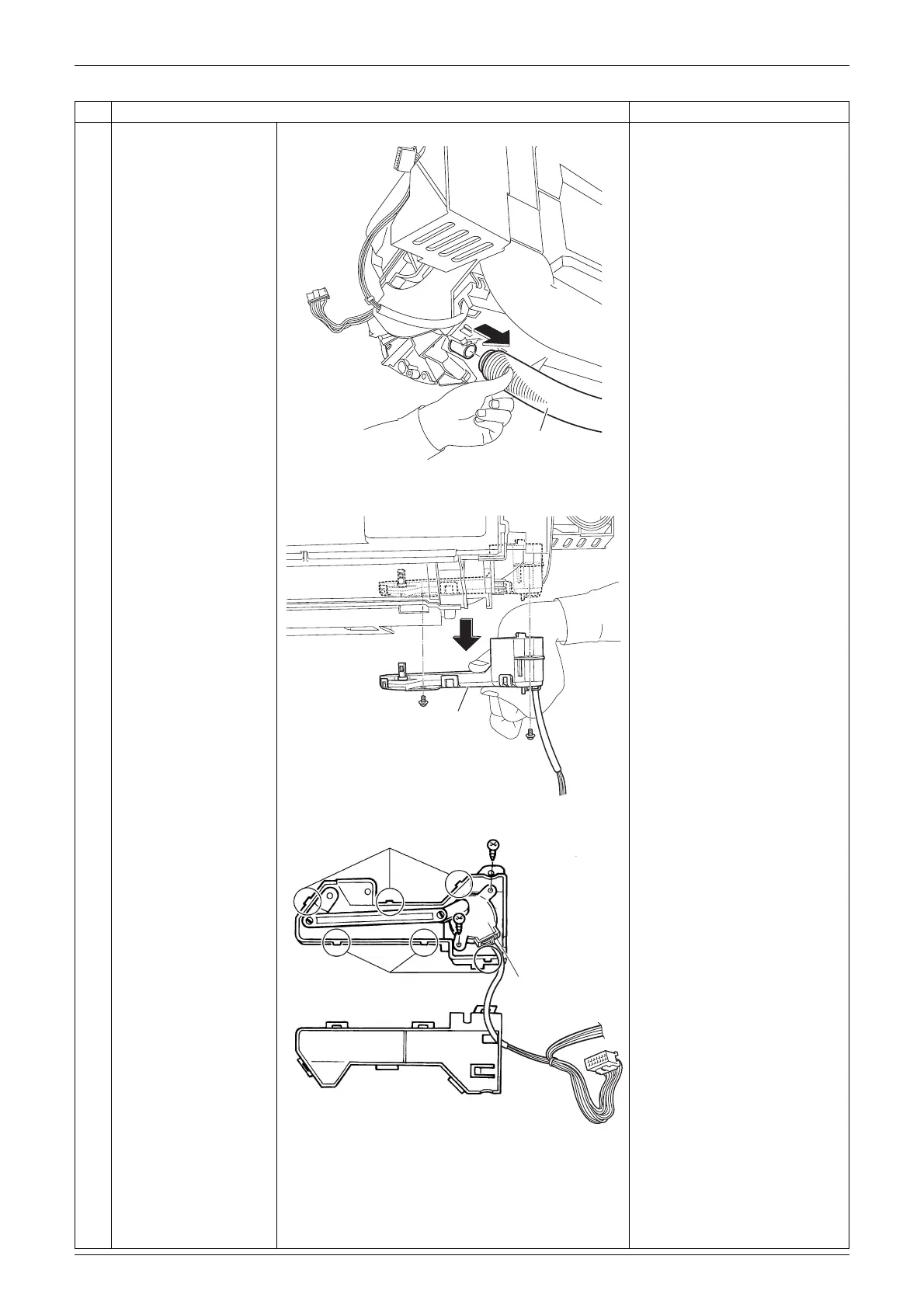

Removal of Electrical Box / PCBs / Swing Motors Si041143
14 Removal Procedure
2
Pull out the drain hose.
3
Remove the 2 screws
and detach the swing
motor unit.

In case that you cannot
remove the swing motor unit
easily, remove the auxiliary
piping first. Refer to the
“Removal of Indoor Heat
Exchanger”.
4
Remove the 2 screws
and remove the swing
motor for vertical
blades.

The assembly has 6 hooks.
Step
Procedure Points
Drain hose
(R11357)
(R13624)
Swing motor
unit
(R13515)
Hook
Swing motor
Hook
