Si041143 Removal of Air Filters / Front Panel
Removal Procedure 3

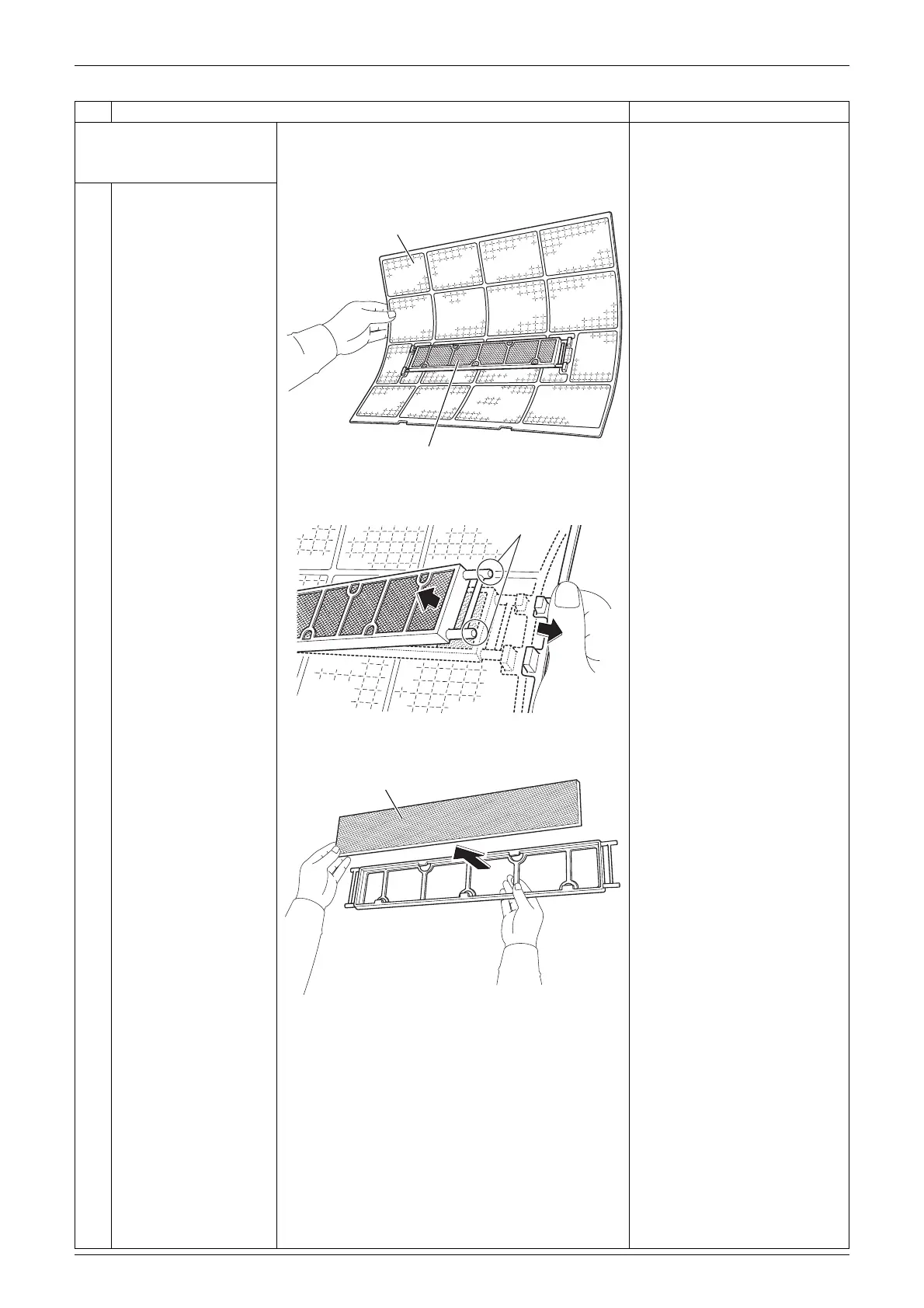

3. Remove the Titanium
apatite photocatalytic air-
purifying filters.
1
The Titanium apatite
photocatalytic air-
purifying filter ASSY is
attached to the back of
the air filter.
The right and left filters are
interchangeable.
2
Remove the Titanium
apatite photocatalytic
air-purifying filter ASSY
by bending the air filter
and releasing the
projections from the air
filter frame.
3
Unfasten the 5 hooks
and remove the
Titanium apatite
photocatalytic air-
purifying filter from its
frame.
Step
Procedure Points
Air filter
(R11324)
Titanium apatite photocatalytic
air-purifying filter ASSY
Projection
(R13510)
(R11326)
Titanium apatite photocatalytic
air-purifying filter
To Next Page
